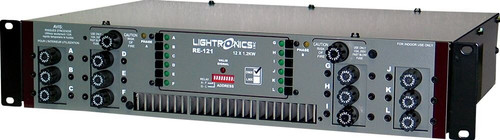

The RE121D from Lightronics is a 12 channel rack mount dimmer with a capacity of 1,200 watts per channel giving a total of 14,400 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RE121D is controlled by a lighting control console. The unit uses the DMX-512 control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either to full on or full off depending on fader position.
Lightronics RE121D Features
- 12 Channels
- 1200W per Channel
- 10 Amp Fast Acting Fuses
- Dim/Relay Mode per 6 Channel groups
- 120/240V 60 Amp
- DMX-512 Protocol
- UL-508 Compliant
- Optional Circuit Breakers
- RE121D Rack Mount Dimmer1
- Channels/Capacity12 @ 1200 Watts each
- Power Input
- 2 Hots of 120VAC Single/Three
- Phase 60 Amps per Hot Input
- Under Full Load
- Power ConnectionTerminal Block
- Overload Protection
- 10 Amp Fast Acting Fuses or
- Optional Circuit Breakers
- System Addressability512/128 Channels (DMX/LMX)
- CoolingInternal Fan Cooled Heatsink
- Filtering
- 350 Microseconds Minimum
- Rise Time
- Minimum Load15 Watts
- Control Sources
- DMX512 (RE-121D)
- LMX-128 (RE-121L)
- Temperature Rise 34 Degrees F at Full Load
- Response Time8.33 Milliseconds
- Efficiency97%
- Dimensions (WxHxD)19x3.5x13”
- Weight26 lbs
