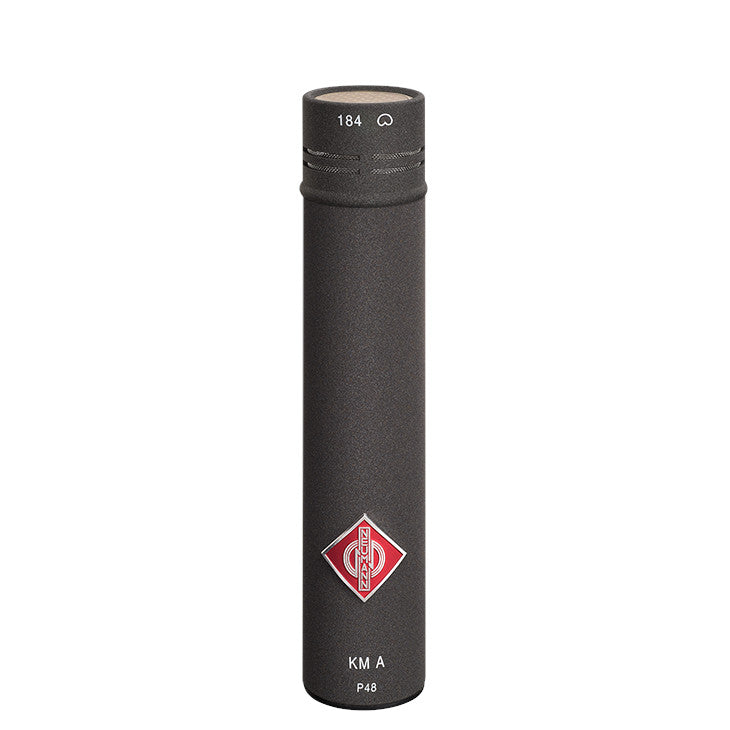

• Neumann KM 184 A NX Small Diaphragm Cardioid Condenser Microphone
1 1

Neumann KM 184 A NX Small Diaphragm Cardioid Condenser Microphone

Neumann KM 184 A NX Small Diaphragm Cardioid Condenser Microphone

SoundPro Item: 44549 | Part Number: KM 184 A NX

$1,295.00
$1,629.00 $1,295.00
Your Price Sold out
MSRP: $1,629.00 | MAP: $1,295.00

Usually ships in 5-7 business days

  • Uniform cardioid pattern without off-axis coloration
  • Linear frequency response with a slight treble lift
  • Very low self-noise (13 dB-A)
  • Low impedance output for long cable runs without transmission losses
  • Transformerless circuitry
  • Compact size, visually unobtrusive
Log in or register for YOUR best price

The KM 184 is a state-of-the-art small diaphragm condenser microphone with a uniform, frequency-independent cardioid polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 184 a worldwide stage and studio standard for many applications ranging from classical piano to heavy metal drums.

View full details
  • Transducer TypeCondenser
  • Polar PatternCardioid
  • Frequency Range20 Hz - 20 kHz
  • Rated Output Impedance50 ohms
  • Sensitivity at 1kHz into 1 kΩ15 mV/Pa
  • Equivalent Noise Level, CCIR22 dB
  • Equivalent Noise Level, A-Weighted13 dB-A
  • Max. SPL for THD 0.5%138 dB
  • Max. SPL for THD 0.5% with Preattenuation148 dB
  • Signal-to-Noise Ratio, CCIR (re. 94 dB SPL)70 dB
  • Signal-to-Noise Ratio, A-Weighted (re. 94 dB SPL)81 dB
  • Supply Voltage (P48, IEC 61938)48V
  • Current Consumption (P48, IEC 61938)max. 3.5 mA
  • Matching ConnectorXLR 3 F
  • Dimensions0.87" x 4.25"
