• NEXO P15 15-Inch High Output Compact Point Source Speaker
1 1

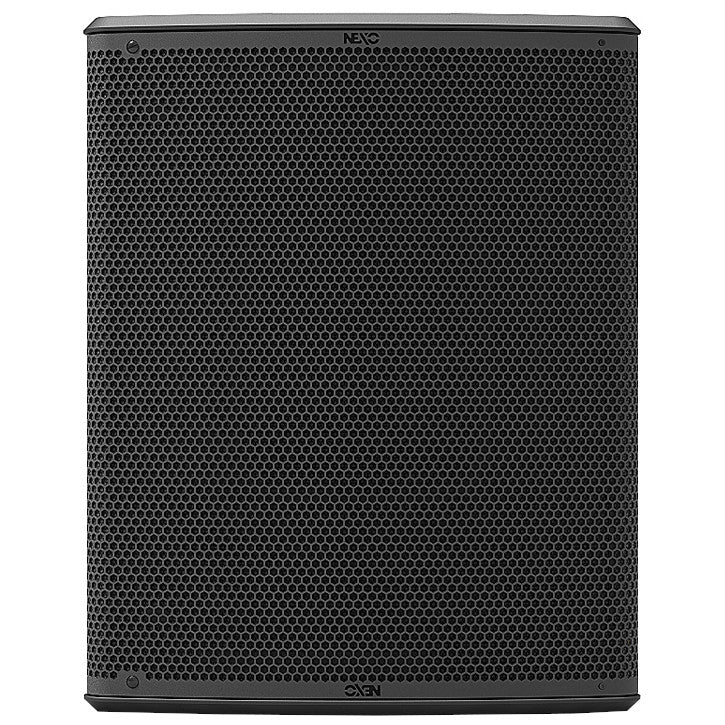

NEXO P15 15-Inch High Output Compact Point Source Speaker | Color: Black, Version: Touring

NEXO P15 15-Inch High Output Compact Point Source Speaker | Color: Black, Version: Touring

SoundPro Item: 114766

$4,299.00
$4,299.00 $4,299.00
Your Price Sold out
MSRP: $4,299.00 | MAP: $4,299.00

Usually ships in 5-7 business days

  • Available in black or white finish (white not pictured)
  • Choose from touring, install, or hybrid models
  • Compact, low-profile, curvilinear enclosure
  • 15” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes
  • 141dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions
Log in or register for YOUR best price

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P15 employs a purpose-designed 15” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 600mm x 483mm x 352mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colors and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

View full details
  • Frequency Response @-6 dB57 Hz - 20 kHz
  • Sensitivity 1W@1m108 dB SPL Nominal
  • Peak SPL@1m139 dB Peak (Passive mode) / 141 dB Peak (Active mode)
  • Operating Voltage55 Vrms (180 Vpeak)
  • HF Dispersion (according to flanges) 60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)
  • Crossover Frequency57 H, 85 Hz, 120Hz
  • Nominal ImpedanceActive mode: (8Ω LF + 8Ω HF) / Passive mode: 8Ω
  • Recommended PowerActive: (800 to 1350W LF + 400 to 630W HF) / Passive: 800 to 1350W
  • Components1 x Coaxial Neodymium LF 15” 8 Ohms long excursion & HF 3“ 8 Ohms
  • Number of ways (Touring version) 2 ways passive (2+/2- P15) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
  • Number of ways (Install version) 2 ways passive
  • Connectors (Touring version) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
  • Connectors (Install version) 1 x Cable gland with 2 cores cable
  • Rigging points1 x universal accessory fit on each side + 1 x on the bottom
  • MaterialCustom made bent plywood of baltic birch and poplar
  • FinishBlack or White structural paint
  • Front Finish (Touring version) Steel front grille + back mesh
  • Front Finish (Install version) Acoustic fabric fitted front grille
  • Net Weight23 kg
  • Height x Width x Depth600x483x352mm
  • Operating temperature range0°C - 40°C
  • Storage temperature range-20°C - 60°C
  • System Operation
    • Recommended powering solution:NXAMP4x2mk2 Powered TDcontroller: up to 2 x P15 per channel
    • Optional powering solution
      • DTDcontroller + DTDAMP4x0.7 (bridge): 1 x P15 per channel
      • NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P15 per channel
      • NXAMP4x4mk2 Powered TDcontroller: up to 4 x P15 per channel"
