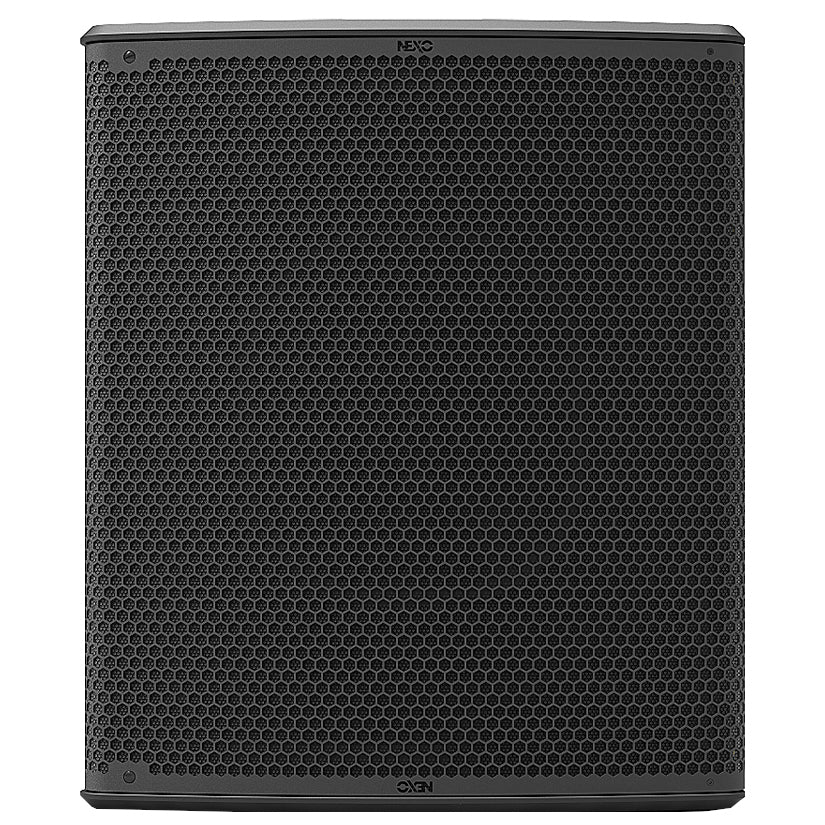

• NEXO P18 18-Inch High Output Compact Point Source Speaker
1 1

NEXO P18 18-Inch High Output Compact Point Source Speaker

NEXO P18 18-Inch High Output Compact Point Source Speaker

SoundPro Item: 141331 | Part Number: P18

$5,200.00
$5,200.00 $5,200.00
Your Price Sold out
MSRP: $5,200.00 | MAP: $5,200.00

Usually ships in 5-7 business days

  • Compact, low-profile, curvilinear enclosure
  • 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes (Touring and TIS versions)
  • 142dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions
Log in or register for YOUR best price

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P18 employs a purpose-designed 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 680mm x 579mm x 446mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours (Passive only) and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

View full details
  • Frequency Response @-6 dB50 Hz to 20 kHz
  • Sensitivity 1W@1m107 dB SPL Nominal
  • Peak SPL@1m140 dB Peak (Passive mode) / 142 dB Peak (Active mode)
  • Operating Voltage55 Vrms (180 Vpeak)
  • HF Dispersion (according to flanges) 60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)
  • Crossover Frequency50 Hz, 85 Hz, 120 Hz
  • Nominal Impedance
    • Active: (8 Ohms LF + 8 Ohms HF)
    • Passive: 8 Ohms
  • Recommended Power
    • Active: (1200 to 1900W LF + 600 to 950 W HF)
    • Passive: 1200 to 1900W
  • Components1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 Ohms
  • Number of ways (Touring and TIS version) 2 ways passive (2+/2- P18) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
  • Number of ways (Install version) 2 ways passive
  • Connectors (Touring and TIS version) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
  • Connectors (Install version) 1 x Cable gland with 2 cores cable
  • Rigging points1 x universal accessory fit on each side + 1 x on the bottom
  • MaterialCustom made bent plywood of baltic birch and poplar
  • FinishBlack or White structural paint
  • Front Finish (Touring version) Magnelis® front grille + back fabric behind
  • Front Finish (Install and TIS version) Acoustic fabric fitted front grille
  • Height x Width x Depth680x579x446mm (26.8x22.8x17.6”)
  • Net Weight33 kg (73 lbs)
  • Operating temperature range0°C - 40°C (32°F - 104°F)
  • Storage temperature range-20°C - 60°C (-4°F - 140°F)
  • System Operation
    • Recommended powering solution:NXAMP4x4mk2 Powered TDcontroller: up to 3 x P18 per channel
    • Optional powering solution
      • DTDcontroller + DTDAMP4x0.7 (Bridged): 1 x P18 per bridged channels
      • NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P18 per bridged channels
      • NXAMP4x2mk2 Powered TDcontroller: 1 x P18 per channel"
