Obsidian NX Wing 128 Universe USB Control Surface
Obsidian NX Wing 128 Universe USB Control Surface
SoundPro Item: 18012 | Part Number: NXW884
Usually ships in 5-7 business days
- Full Featured Control Surface, Portable and Lightweight
- 10 Playbacks, Encoders, Keypad and Internal 3.5" Touchscreen
- DMX, Timecode and Midi Connectivity
- 128 Universe License for ONYX Included
- Plug and Play USB device for any PC with ONYX

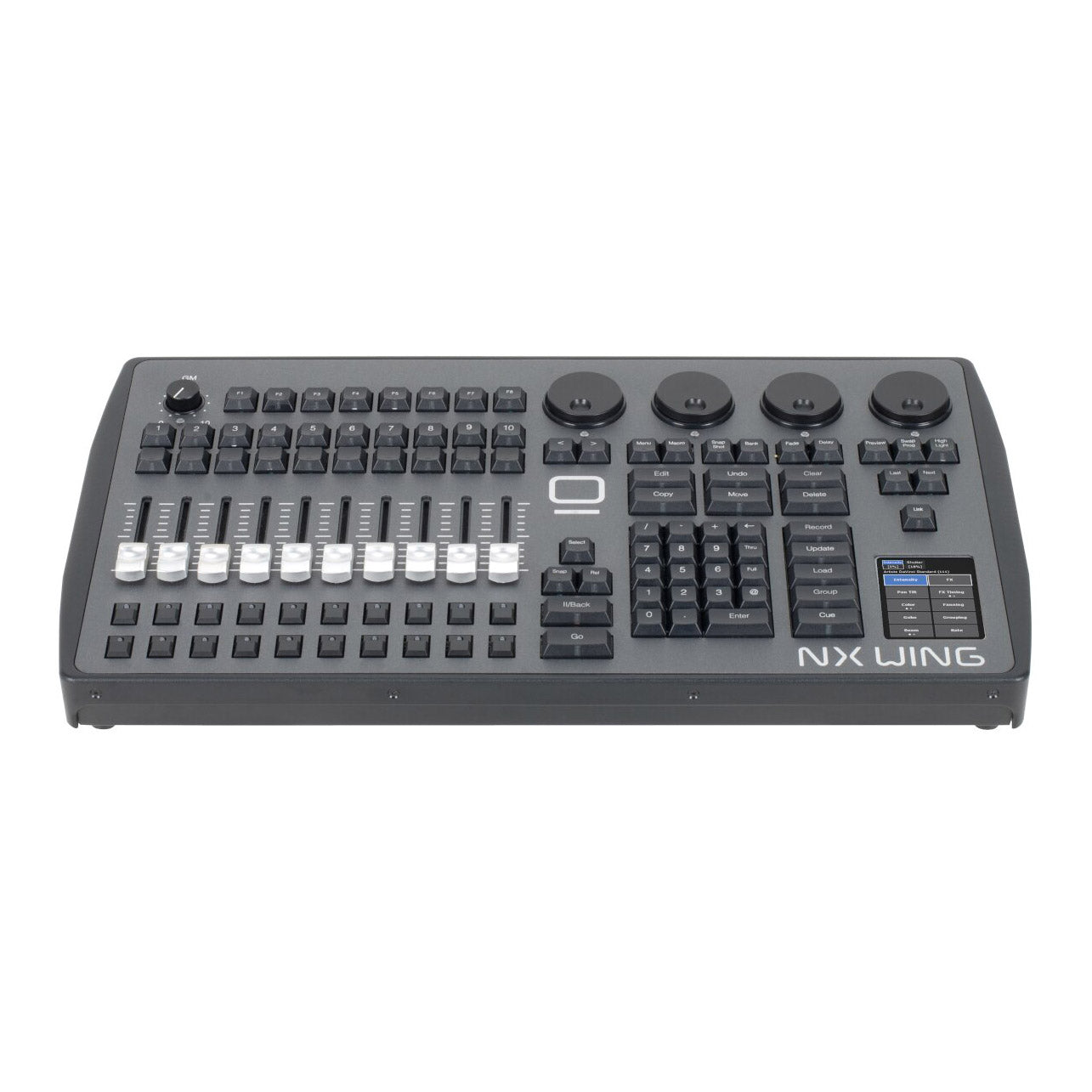

The NX Wing is the perfect companion for the Onyx PC Lighting Control Software. This surface utilizes the same design as the NX2 console but when connected to your PC it unlocks 128 universes of control! This fully featured control surface is ultra-portable and lightweight. It features 10 playback faders, each with 4 assignable function keys, 4 parameter encoders, 8 customizable function keys, keypad and a 3.5” touchscreen. It also provides extensive connectivity with 4 DMX Ports, MIDI In/Thru/Out and Timecode I/O ports.
- Surface
- 10x 60 mm playback faders, each with 4x function-assignable buttons
- 8x customizable multi-function keys
- Playback Select button
- Master Go section with Go, Pause, Snap and Release
- 4x digital rotary encoders with push function and status LED for fixture parameter control
- 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
- Grand master rotary fader and button
- Blind/HighLight/Last/Next buttons
- Full numerical keypad and command keys
- Connections
- 4x DMX / RDM Universe In/Out: 5pin locking XLR
- MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN (temporarily unavailable)
- SMPTE Timecode In/Out: 3pin XLR (temporarily unavailable)
- 12 VDC power supply input: 4pin XLR
- Desk lamp: XLR 12V
- USB In: USB 2.0 B
- Requirements
- Windows 10, Windows 11 64bit (Home/Pro/Enterprise)
- Intel Core i3 processor 6th Generation+ (or other comparable multi-core processor)
- 8 GB RAM
- SSD storage drive
- 40 GB available disk space for software, DYLOS factory content and storage
- Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
- USB 2.0 port
- 10/100 Ethernet port for Art-Net DMX output
- 100/1000 Ethernet port for X-Net, Remote operation and sACN
- Physical
- Dimensions (LxWxH): 11.9x21.3x3.9" (300x540x99mm)
- Weight: 10.2 lbs (4.6kg)
- Housing: Aluminum, steel, plastic
- Electrical
- AC mains power to 12VDC external PSU (included):
- 100-240V nominal, 50/60 Hz
- Maximum current: 3A
- 12VDC output: 11A, 132W max.
