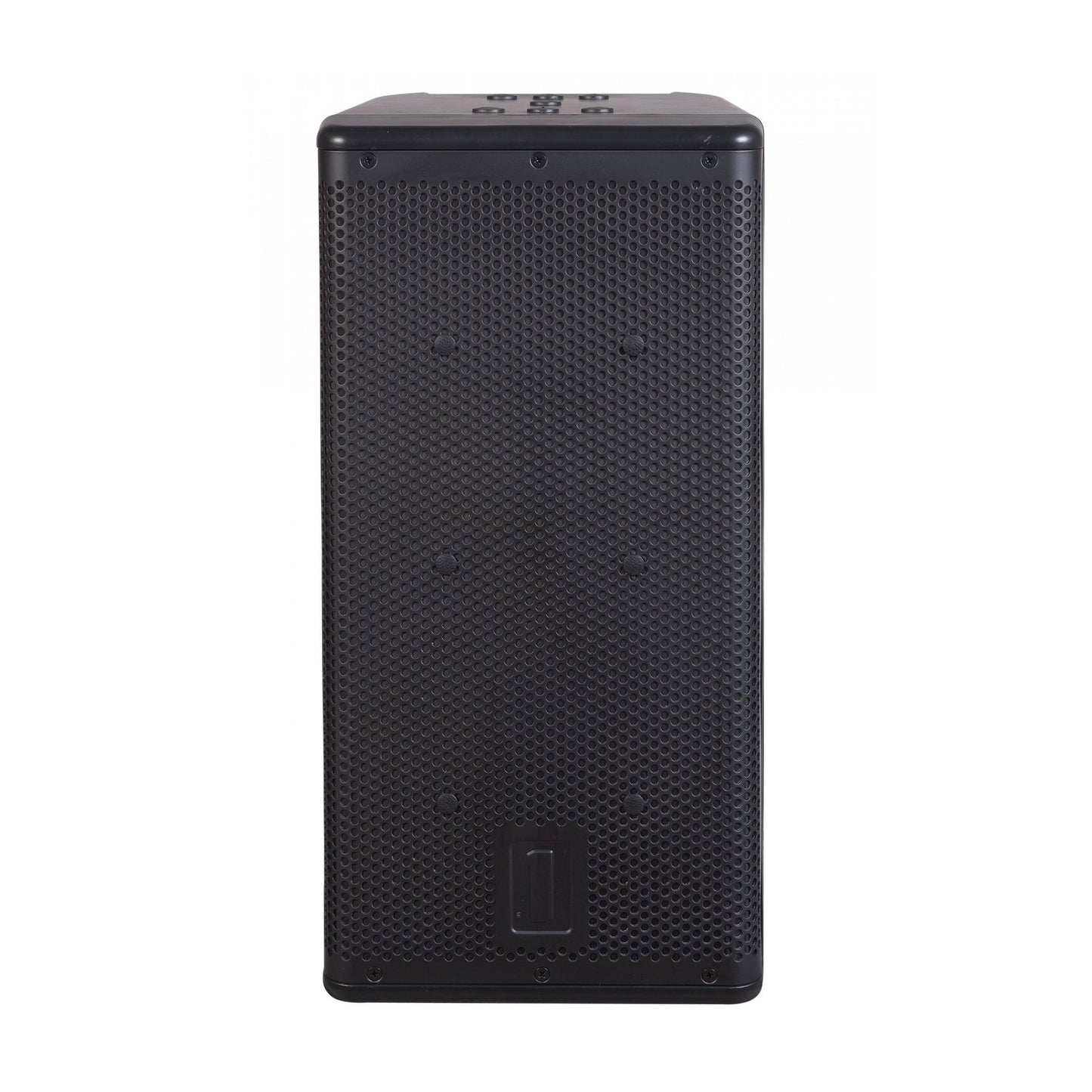

One Systems 108.HTH Platinum Hybrid Series Speaker

The 108.HTH provides a unique combination of excellent performance, direct weather capability and amazing flexibility. The 108.HTH includes a long-throw 60 x 40-degree rotatable horn that's factory installed, but also includes a rotatable wide-throw 105 x 60-degree horn too. The 108.HTH's rotatable long or wide-throw horns, its wide, smooth response and beefy components provide excellent performance for a variety of applications. Its built-in 3-tap transformer provide 70.7 - 100 volt taps at 150, 75 and 37.5 watts or it can be powered as a low-impedance system. The 108.HTH's multiple 316 marine stainless steel suspension points and range of installation hardware add to its already impressive flexibility. The 108.HTH is designed and built tough enough to handle any outdoor application, but is widely used for indoor applications too thanks to its high performance and flexibility.

One Systems 108.HTH Features

• Marine-grade (316) stainless steel rigging and structural support
• Easily configurable Hi Z (150W) multi tap or Lo Z (8 ohm) operation
• Combined 70.7Vrms or 100Vrms operation
• Rotatable High frequency horns
• Both 60x40 and 105x60 horns supplied
• No performance degrading or dynamics limiting passive protection devices
• 200W continuous, 800W peak power handling in Lo Z mode
• IEC 529 IP 45 ingress protection (IP 56 when vent plugs are installed)

• 108.HTH Platinum Hybrid Series Speaker1

• Frequency Response65Hz – 16,000Hz
• Coverage Pattern60x40 degrees or 105x60 degrees
• Crossover Frequency
  • 2000 Hz (60x40 horn)
  • 1600 Hz (105x60 horn)
• System Sensitivity (1W/1m)92dB
• Power Handling
  • 200W continuous
  • 400W program
  • 800W peak
• Input Impedance (Lo Z)8-ohms
• Input Taps (Hi Z)150W, 75W, 37.5W
• Weight36.4 lbs (16.5kg)
• Dimensions (HxWxD)19.05x9.56x10.66" (483.3x243.2x270.8mm)
