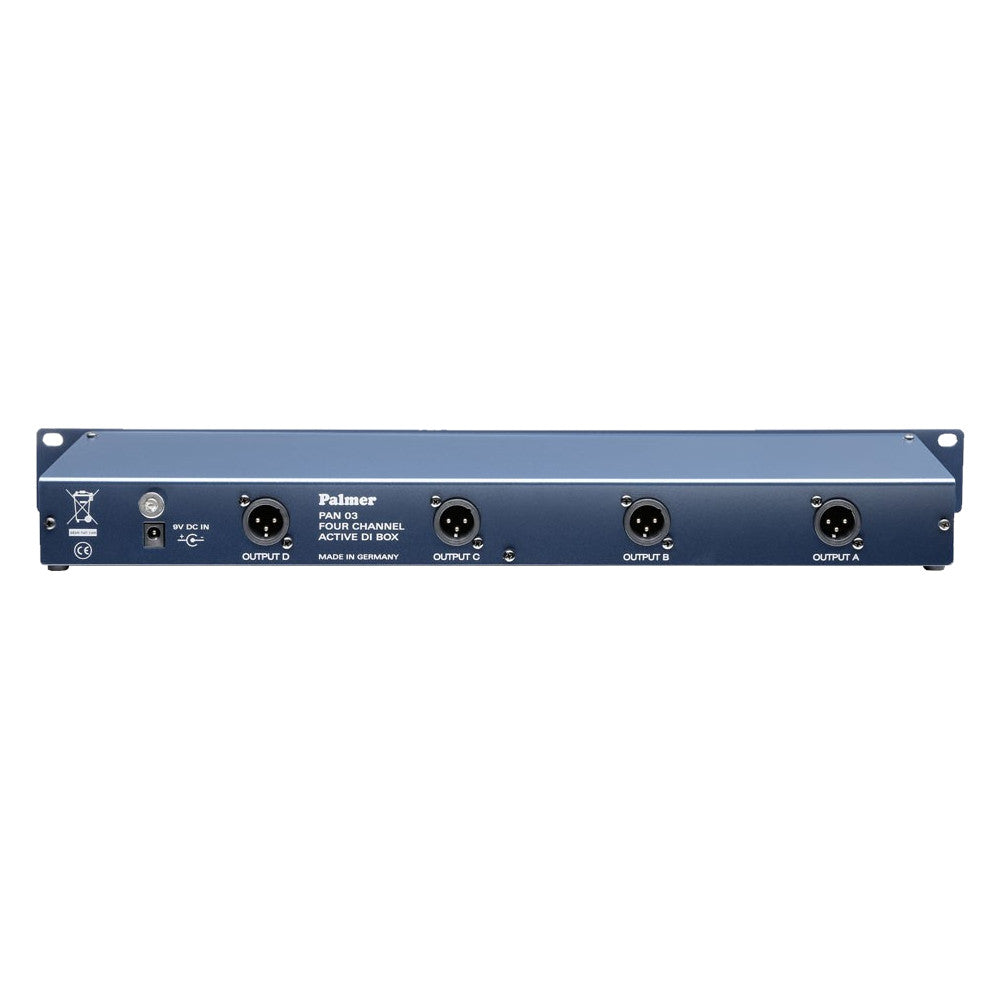

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected. Active 4 x DI box, 19" format. Technical specifications identical to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.
Palmer PAN 03 Features
- Active 4-channel DI box
- Each channel has a jack input with a parallel output for passing through the signal
- Attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected
- 19" rack-mount format
- Palmer PAN 03 19" 4-Channel Active DI Box1
- Type active
- Channels 4
- Inputs 4
- Input connectors 6.3 mm jack
- Max. input level + 45 dBu
- Input impedance (@ 60 Hz) 1 M Ohm(s)
- Input pad 0 / -30 dB
- Outputs 4 (+ 4 parallel XLR outs)
- THRU outputs/channel 1
- Output connectors 6.3 mm jack, XLR
- Max. output level + 10 dBu
- Output impedance 600 Ohm(s)
- Frequency response 10 - 20000 Hz
- Transformer balanced Yes
- Ratio10:1
- Indicators Power
- ControlsAttenuator, ground lift
- Operating VoltageExternal
- Cabinet materialSheet steel
- Cabinet surface Powder coated
- Width 480 mm (19")
- Depth 90 mm
- Height 45 mm (1 U)
- Weight 1.6 kg
