• Pliant Technologies CRT-900 CrewCom 900MHz Radio Transceiver
1 1

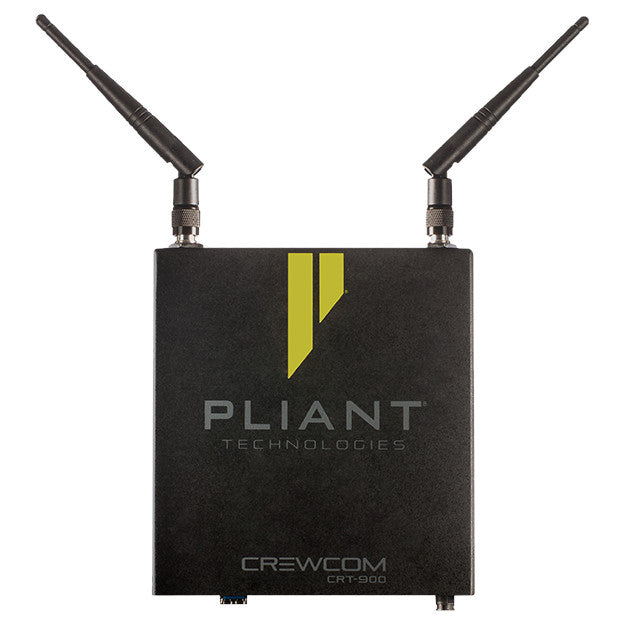

Pliant Technologies CRT-900 CrewCom 900MHz Radio Transceiver

Pliant Technologies CRT-900 CrewCom 900MHz Radio Transceiver

SoundPro Item: 46790 | Part Number: CRT-900

$2,825.00
$2,825.00 $2,825.00
Your Price Sold out
MSRP: $2,825.00 | MAP: $2,825.00

Usually ships in 5-7 business days

  • One RT supports up to 6 Full-Duplex Radio Packs
  • Two separate RF bands available in two models (CRT-900 & CRT-2400)
  • LED status indicators for data RX/TX, operation mode, and error
  • CrewNet in connections (etherCON or Duplex LC Single Mode Fiber) with an addition single copper CrewNet thru connection for connecting up to a total of eight CrewCom Radio
  • Transceivers in a daisy chain-configuration
  • Micro USB connection for firmware updates (also available through CrewNet)
  • Integrated ping function which uses all LEDs to physically identify an RT
  • Dual powering options (network power or external 48VDC, sold separately)
Log in or register for YOUR best price

The Pliant Technologies CRT-900 CrewCom 900MHz Radio Transceiver houses a radio with corresponding antennas and serves as an access point enabling RF communications with CrewCom Radio Packs. Using CrewNet as a backbone, up to 46 RTs can be positioned on the network throughout a wide coverage area by being linked back to a Control Unit either directly, through a Hub(s), or connected in a daisy-chain configuration.

View full details
  • RF Frequency
    • 902–928 MHz
    • (915–928 MHz)**
  • RF SchemeFHSS with TDMA
  • Effective Radiated Power 400 mW (+26 dBm)
  • Receiver Sensitivity -100dBm at 10-5 BER
  • Radio Certification FCCID: HSW-CCT900 and IC: 4492A-CCT900
  • Transmission Range 200 m (approx. 650 ft.) under typical conditions; 600 m (approx. 1950 ft.) line of sight. Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.
  • Number of Radio Packs Supported (when RT in Normal mode) 6
  • Number of Antenna Connections per RT 2
  • Antenna Connector Type RP-TNC
  • Supplied Antenna +2dBi Omni-directional (whip)
  • CrewNet In Port (supports 1 connection) (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
  • RT Loop Port (1) RJ-45
  • Maximum CrewNet Line Length Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.)
  • Network Power (Power-over-CrewNet) CrewNet RJ-45 only
  • External Power 48VDC Power Supply, PPS-48V (Sold Separately)
  • Dimensions without Antennas (LxWxH) 16×19.7×4.6 cm (6.3×7.74×1.81 in.)
  • Weight 1.25 lbs (567 g)
  • Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
  • Maximum Altitude 2,000 m (6,562 ft.)
  • RoHS Yes
  • Compliance Model Number RT2505 Notes *900MHz products only available in North America, Australia, and New Zealand. **The CRT-900AN (Oceania) model is approved for use in Australia and New Zealand and operates within the 915–928 MHz frequency range.
