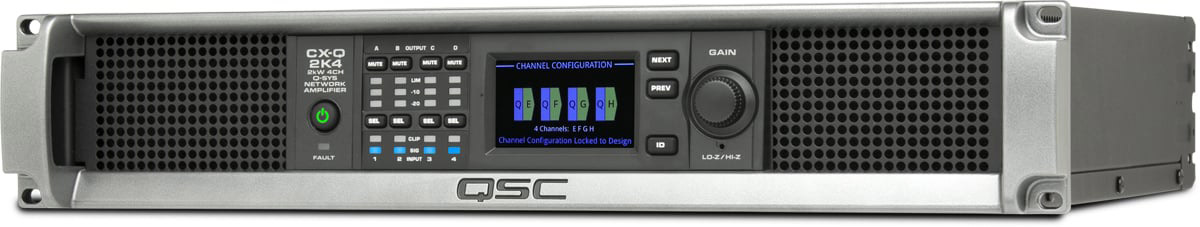

Q-SYS CX-Q 2K4 Four-Channel Network Amplifier

Q-SYS CX-Q Series network amplifiers combine a legacy of robust power amplifiers, advancements in high-efficiency output devices and native network transport, control and monitoring capabilities. CX-Q 2K4 features four channels, capable of delivering customized power output loading and a total maximum power of up to 2000 W. Low-Z, 70 V or 100 V direct drive are available on all channels.

• Simple drag-and-drop integration into your Q-SYS design, enabling network routing, advanced processing and control.
• These network amplifiers are built with a 5th generation high-efficiency, Class-D hybrid powertrain design built upon the dependable PL380 PowerLight™ amplifier platform.
• CX-Q Series network amplifiers feature FlexAmp™ and FAST (Flexible Amplifier Summing Technology™), which combine to provide extreme flexibility in output deployment.
• Four channels of mic/line inputs (with +12 V phantom power) for additional on-ramps into Q-SYS.
• PowerLight universal switchmode power supply with PFC for highest efficiency, improved audio performance and low weight
• Touch-proof Euroblock loudspeaker connections
• Eight bi-directional GPIO connections for further control and integration of third-party peripherals within Q-SYS
• Automatic energy saving modes ensure that the amplifier will draw the minimum amount of AC power while still providing outstanding audio quality

• Typical distortion (8Ω)0.02 - 0.05%
• Typical distortion (4Ω)0.04 - 0.1%
• Maximum distortion 4Ω - 8Ω1.0%
• Frequency response20 Hz - 20 kHz +0.2 dB / -0.7 dB
• Noise (Unweighted output muted)> 102 dB
• Noise (Weighted output muted)> 106 dB
• Gain (1.2V setting)33 dB
• Damping factor> 100
• Input impedance> 8k balanced and > 4k unbalanced
• Amplifier and load protectionShort circuit, open circuit, over current, over voltage, thermal, RF, DC fault shutdown, active inrush limiting, on/off muting
• AC power inputUniversal power supply 100 - 240 VAC, 50 - 60 Hz
• Agency approvalsUL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions)
• Carton contentsIEC cable, quick start guide, Euro (green) connectors
