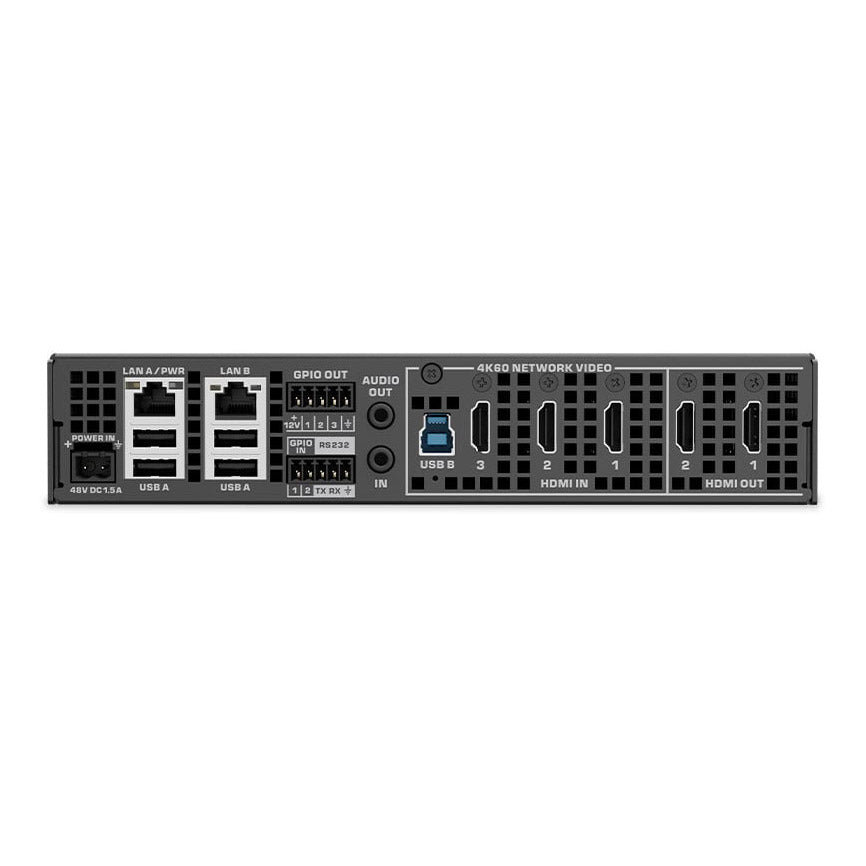

Q-SYS NV-32-H Core Capable Network Video Endpoint

Q-SYS NV-32-H Core Capable Network Video Endpoint

SoundPro Item: 41940 | Part Number: NV-32-H

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • Complete audio processing for the Q-SYS Platform. Includes 32x32 network audio channels, eight software-based acoustic echo cancelation (AEC) channels and onboard audio via HDMI, USB and 3.5mm connections. Optional software feature licenses include a robust control engine, UCI creation and deployment, Dante audio channels and Q-SYS Shift™ encoding or decoding.
  • Core Mode enables an onboard 3x2 HDMI video switcher, allowing in-room users to share content from their laptops or other devices easily. The Core Mode Video Streaming feature license enables encoding or decoding via Q-SYS Shift™.
  • Seamlessly connect Q-SYS network camera and audio feeds via a driverless USB connection into all major UC&C conferencing applications, including Microsoft Teams, Zoom and Google Meet.
Log in or register for YOUR best price

The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Platform, offering two distinct operating modes to choose between, based on the needs of the application. 'Core Mode' transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. 'Peripheral Mode' allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control driven by the Q-SYS OS, simplifying setup and configuration while eliminating the need for advanced programming knowledge. With its Q-SYS Platform integration, you're able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.

View full details
  • Q-LAN / AES6764 x 32
  • Dante Channelslicensable up to 32 x 32 (none included)
  • AEC processors8
  • VoIP instances1
  • Audio recording / playback4 ch recording / 16 ch playback
  • Q-SYS NM-T1 capacity3
  • Video compressionQ-SYS Shift™ compression codec
  • Bitrates10 Mbps - 800 Mbps
  • Content protectionHDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders
  • HDMI inputs8-channel PCM audio, Q-SYS routable
  • HDMI outputs8-channel PCM audio, Q-SYS routable
  • Analog input3.5 mm unbalanced stereo mic/line input
    Q-SYS routable
  • Analog output3.5 mm unbalanced stereo line output
    Q-SYS routable
  • HDMI 2.0 inputs3x HDMI capable of receiving source input video formats up to 4K60 4:4:4
  • HDMI 2.0 outputs2x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4
  • ScalerEach HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions
  • RS-232Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
  • GPIOEuroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
  • LAN AGigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power.
  • LAN BRedundant connection for audio & control traffic (Core Mode only)
  • Signal to Noise90 dBFS
  • THD+N0.009% @ 0 dB
  • Signal to Noise90 dBFS
  • THD+N0.0167% @ 0 dB
  • Power over Ethernet specification/wattageConforms to IEEE 802.3bt Type 4
  • Physical power supply info48 V DC Nominal, 1.5 A on 2-pin Euro connector
  • Ambient operating temperature range0-50° C
  • Humidity5 to 85% non-condensing
  • Storage temperature-20 to 70° C
  • Dimensions8.66 in x 11.28 in x 1.72 in
  • WeightWeight: 4.0 lb (1.81 kg)
  • Regulatory complianceCE, FCC Part 15 Class B, RoHS
  • Mounting optionsRack-mountable (1RU half-rack width), surface-mountable, table or wall-mount
