• QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White
  • QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White front
  • QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White side
  • QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White right profile

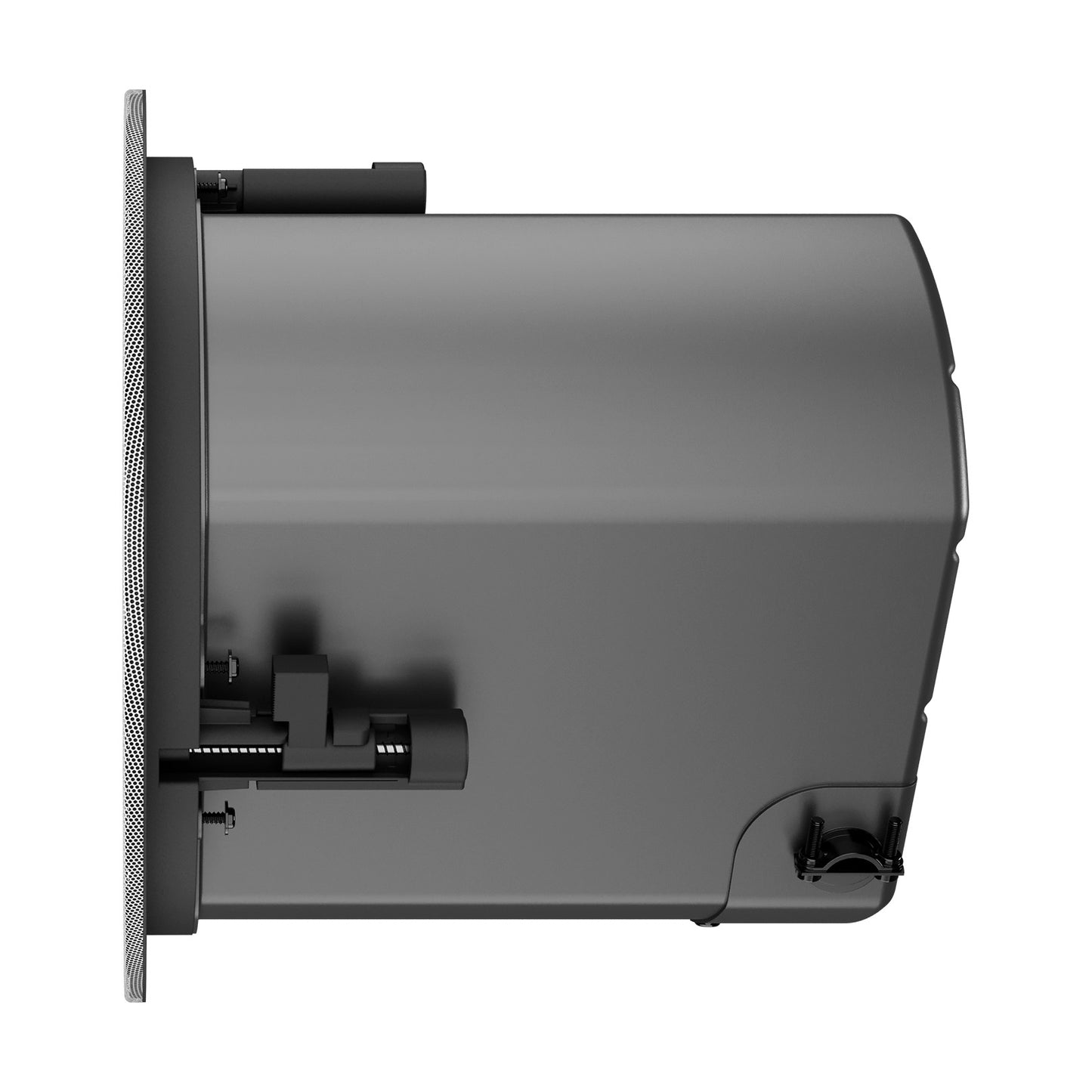

  • QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White left profile
1 5

QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White

QSC AD-C6T-ZB-WH AcousticDesign 6.5-Inch Ceiling Speaker, White

SoundPro Item: 142283 | Part Number: AD-C6T-ZB-WH

$325.00
$325.00 $325.00
Your Price Sold out
MSRP: $325.00 | MAP: $325.00

In stock and ready to ship

  • Priced individually, sold in pairs
  • White finish
  • Consistent tonal characteristics across the entire AcousticDesign family in both surface or ceiling applications
  • Sleek zero bezel design for modern architectural needs
  • Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction voicings available via Q-SYS™
  • Low-saturation and low-loss 70/100V transformers with 16Ω bypass
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • Available in signal white (RAL 9003), with black grille accessory sold separately
  • Complete EASE, CAD, & BIM information available online
Log in or register for YOUR best price

Priced individually, sold in quantities of 2

The AD-C6T-ZB-WH from QSC is a 6.5", 2-way, zero bezel ceiling speaker in a white finish.

AcousticCoverage™ Series

Beyond the features described above, the AC-C6T speaker belongs to the AcousticCoverage™ Series. This series was designed to provide integrators with a cost-effective solution for applications where vocal reinforced coverage is the main concern. The AcousticCoverage™ Series goes above and beyond, not simply providing quality voice coverage, but also providing musicality not typically seen in BGM-class products.

View full details
  • Effective frequency range[1]65 Hz - 20 kHz
  • Rated noise power / voltage[2]60W/ 31V (rms)
  • Sensitivity [dB][3]
    • 88
    • Sensitivity at 4m, 100V maximum tap: TBD
  • Rated coverage (-6 dB)[4] 135° conical DMT
  • Directivity factor (Q)6.5
  • Directivity index (DI) [dB] 8
  • Maximum continuous SPL [dB][5] 106
  • Maximum peak SPL [dB][5] 112
  • Nominal impedance [ohms]16
  • Transformer taps / impedance
    • 16Ω (in bypass setting)
    • 7.5W (70V); 15W (100V) Tap: 667Ω
    • 15W (70V); 30W (100V) Tap: 333Ω
    • 30W (70V); 60W (100V) Tap: 167Ω
    • 60W (70V); N/A (100V) Tap: 83Ω
  • LF transducer165 mm [6.5-inch] weather resistant paper cone woofer
  • HF transducer19 mm [0.75-inch] aluminum dome tweeter
  • Input connector typeEuroblock connector with parallel output
  • Enclosure materialABS baffle on powder coated steel back can
  • Grille materialPowder-coated steel
  • Ingress protectionIP-34
  • Operating environmentDesigned for indoor use
  • Operating temperature range-20 to 50°C [-4 to 122°F]
  • Cutout dimensionØ 242 mm [Ø 9.53-inch]
  • Net weight4.3 kg [9.5 lbs]
  • Product dimensions (DxH) Ø 280x237mm [Ø 11.02x9.32”]
  • Shipping weight12.6 kg [27.8 lbs] (pair packed)
  • Shipping dimensions (HxWxD) 330x737x381mm [13x29x15”] (pair packed)
  • Optional Accessories
    • AD-MR6 (pre-install mud ring), 245 mm cutout size
    • AD-C245BG (black ceiling grille), 245 mm cutout size
  • Safety AgencyUL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.
  • Notes
    • [1] Half Space, -10dB from on-axis sensitivity
    • [2] IEC60268-5 50hz high passed noise at 2 Hrs, 16Ω
    • [3] Free-field, on-axis, 2.83V, 1m
    • [4] -6 dB from on-axis, 500 Hz-5 kHz average
    • [5] Calculated from rated noise voltage and sensitivity
