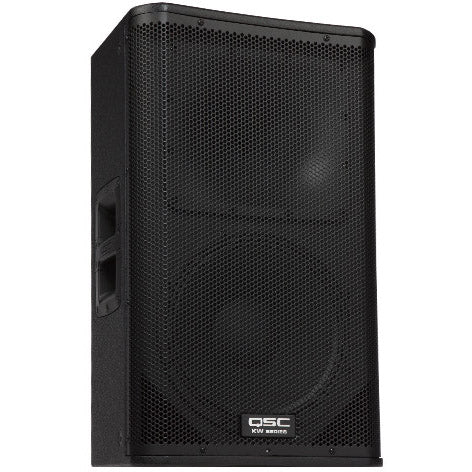

QSC KW122 12-Inch Powered Speaker
QSC KW122 12-Inch Powered Speaker
SoundPro Item: 41148 | Part Number: KW122
Usually ships in 5-7 business days
- 12" Woofer; 1.75" diaphragm compression driver
- 75° Nominal coverage angle
- Maximum SPL 131 dB peak
- Also functions as monitor floor wedge
- 1000W Class D power modules in all models (2 x 500W continuous)
- Onboard mixer with two combo XLR and ¼" inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
- Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance
- DMT (Directivity Matched Transition) ensures uniform coverage across the entire sound field
- Rugged, texture-painted birch enclosures
- Four-position Mic/Line gain (full-range models)
- Tour-grade 16 gauge steel grilles
- Comfortable ergonomic handles
- 35 mm pole sockets with Tilt-Direct
- M10 rigging points for suspended installation
The KW122 from QSC is a 12” powered speaker that has been designed for maximum versatility. It can be positioned on the floor, subwoofer enclosure, suspended, or pole-mounted on a 35mm diameter loudspeaker support pole.
Designed to deliver full-range audio on its own, the KW122 can be used singly, in stereo pairs, or in distributed or delayed systems. It may also be used as a stage monitor.
A unique Tilt-Direct pole cup mounting system engages a 7.5-degree downward tilt of the speaker at the turn of a dial. This mounting system enables you to aim your sound toward the audience and away from reflective surfaces, allowing for maximum coverage.
- General
- Configuration: Multi-purpose, 2-way active loudspeaker
- LF Transducer: 305 mm (12-inch), cone
- HF Transducer: 35.6 mm (1.4-inch) titanium diaphragm compression driver
- Frequency Response (-6 dB): 50 Hz - 20 kHz
- Frequency Range (-10 dB): 45 Hz - 20 kHz
- Nominal Coverage Angle: 75° Axisymetric
- Maximum Rated SPL: 132 dB @ 1 M, peak 126 dB @ 1 M, continuous
- Amplifier
- Class D
- Peak: 1800 W (LF), 225 W (HF)
- CoolingLow-noise, variable speed fan
- Controls
- Power
- 3 × Level
- Rotary encoder (push)
- 2 × selection buttons
- Indicators
- Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm)
- 2 × Power LED (front and rear)
- 3 × Input Signal LED
- Input A Mic selected LED
- Input B Hi-Z selected LED
- Limiter active LED
- Connectors
- 2 × locking XLR/F ¼-inch combo (Mic/Line Input and Hi-Z/Line Input
- 1 × 3.5 mm TRS (Stereo Input)
- 2 × XLR/M (Loop-thru Output)
- 1 × XLR/M (Mix Output)
- 1 × locking IEC power connector
- AC Power
- AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
- AC Power Consumption 1/8th Power: 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
- AC Power Consumption - Standby: 0.2 A at any voltage
- Enclosure
- Enclosure: Impact-resistant ABS
- Attachment Points: 2 × M10 threaded inserts plus Pull-Back
- Color: Black (RAL 9011)
- Grille: 18 Gauge powered coated steel, internal cloth lining
- Speaker Dimensions (H x W x D): 23.7 × 14 × 13.8 inches (602 × 356 × 350 mm)
- Carton Dimensions (H x W x D): 22.5 × 18.5 × 18.3 inches (570 × 470 × 464 mm)
- Net Weight: 39 lbs (17.7 kg)
- Shipping Weight: 47.6 lbs (21.6 kg)
- RegulatoryCE, WEEE, UL, China RoHS, RoHS II, FCC Class B
