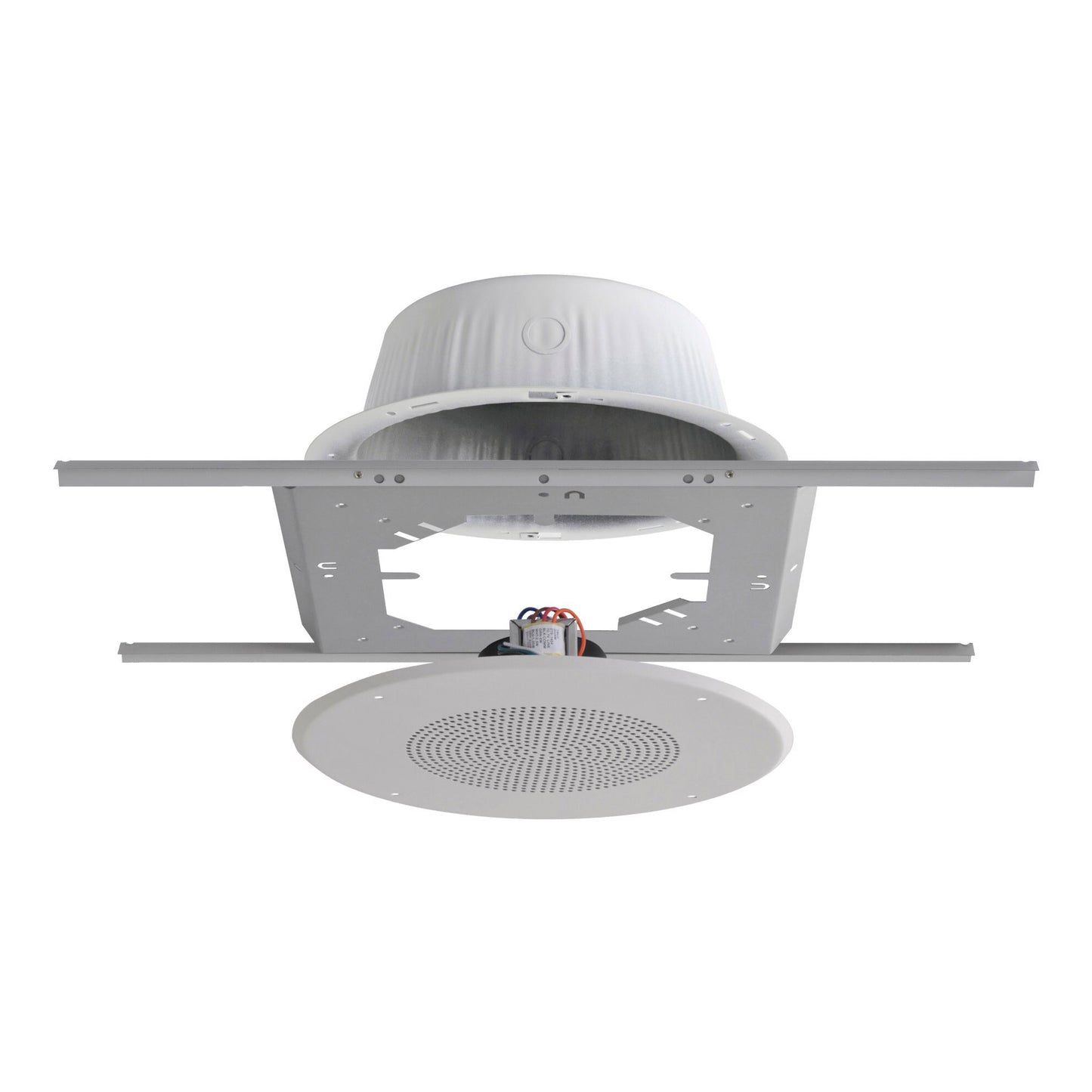

Quam SOLUTION 1 Complete Ceiling Speaker Kit
Quam SOLUTION 1 Complete Ceiling Speaker Kit
SoundPro Item: 10712 | Part Number: SOLUTION 1
Usually ships in 5-7 business days
- Average Sensitivity - 95 dB SPL, 1W/ 1M
- Loudspeaker Power Rating - 20W RMS, EIA 426A Standard
- Calculated Output - 102dB SPL, 5W/ 1M
- Magnet Type & Weight - BeFe Ceramic, 10 oz. Nominal
- Frequency Response - 60Hz - 17 kHz EIA 426A Standard
- Nominal Coverage Angle - 90° Included Angle, -6 dB / 2 kHz, Half space
- Audio Connection - 7" Color Coded Leads
The Quam SOLUTION 1 Complete Ceiling Speaker Kit is a complete speaker/transformer/baffle solution for ceiling installations. Each installer package includes two (2) C10X/BU/WS - The 8C10PAX - 8O O.D. dual cone loudspeaker with a 10 oz. magnet and a TBLU - 5W-25/70V transformer mounted on a BR8WS - round, steel, stud mount baffle. Also included are two (2) SSB-3 - rust-resistant steel, load bearing supports and two (2) ERD8U - 275 CID, round, steel back boxes.
- Application
- Intended Use: Indoor environment
- Program Material: Signal tones, voice and music
- Installation: Downward-firing in a 24" wide, drop-tile ceiling
- Audio Performance
- Average Sensitivity: 95 dB SPL, 1W/1M
- Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
- Calculated Output: 102dB SPL, 5W/1M
- Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal
- Frequency Response: 60Hz-17kHz, EIA 426A Standard
- Nominal Coverage Angle: 90° Included Angle, -6dB/2kHz, Half Space
- Audio Connection: 7", Color-coded, Pre-tinned Leads
- Compnent
- Baffle Dimension:12 7⁄8" (Diameter) x 5⁄16" (H)
- Backbox Dimension: 12 5⁄16" (Diameter) x 4 ¼" (H)
- Mounting Support Dimension: 23 ¾" (W) x 14 3⁄8" (H) x 9⁄16" (D)
- Combined Weight: 15 lbs
- Loudspeaker Model: C10X/BU/WS
- Loudspeaker Specs: 8" O.D. loudspeaker, 10oz. magnet
- Transformer:TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)
- Baffle:BR8WS: round, steel, stud-mount (available with optional surface printing)
- Finish: White powder coat finish on baffle
- Backbox: ERD8U: round, steel
- Mounting Support: SSB-3: rust-resistant steel
