• Quam SOLUTION 2 Ceiling Speaker Assembly
1 1

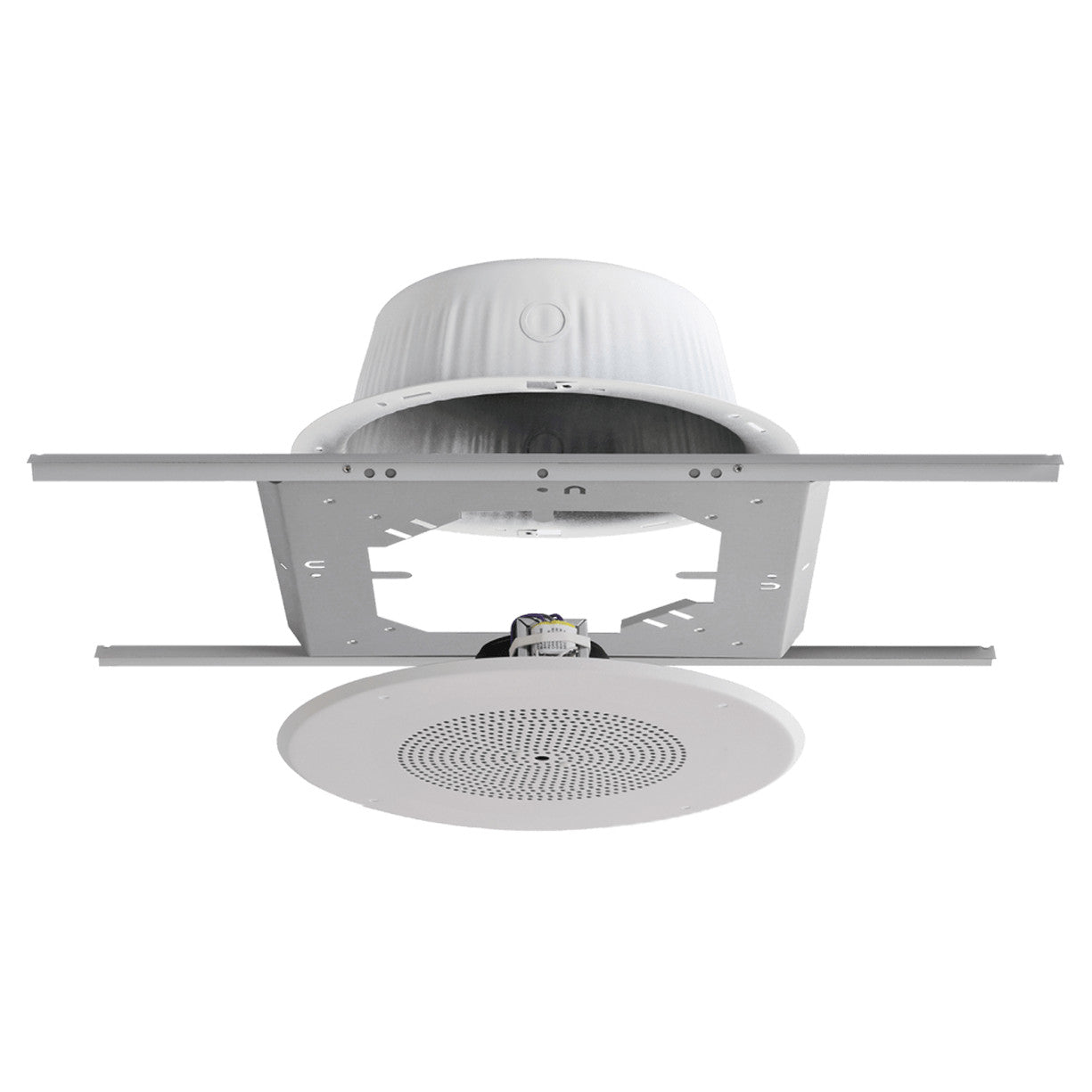

Quam SOLUTION 2 Ceiling Speaker Assembly

Quam SOLUTION 2 Ceiling Speaker Assembly

SoundPro Item: 99190 | Part Number: SOLUTION 2

$180.39
$180.39 $180.39
Your Price Sold out
MSRP: $180.39 | MAP: $180.39

Usually ships in 5-7 business days

  • Complete, speaker/transformer/baffle/ backbox/tile bridge assembly
  • Designed for drop-tile ceiling installations
Log in or register for YOUR best price

The Quam SOLUTION 2 Ceiling Speaker Assembly is a complete, speaker/transformer/baffle/ backbox/tile bridge assembly. It is designed for drop-tile ceiling installations. The SOLUTION 2 includes two (2) of each of the following: 8″ O.D. speaker with 10 oz. magnet and a 5W, 25/70V transformer with a screwdriver or detachable knob (knob included) adjusted volume control, round, steel, stud-mount baffle, rust-resistant steel, load bearing support bridge, round, steel, 275 CID backbox. Each SOLUTION 2 includes two (2) complete speaker assemblies.

View full details
  • Application
    • Intended Use: Indoor environment
    • Program Material: Signal tones, voice and music
    • Installation: Downward-firing in a 24" wide, drop-tile ceiling
  • Audio Performance
    • Average Sensitivity: 95 dB SPL, 1W/1M
    • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
    • Calculated Output:102dB SPL, 5W/1M
    • Magnet Type & Weight: BeFe Ceramic, 10 oz. Nominal
    • Frequency Response: 60Hz - 17kHz, EIA 426A Standard
    • Nominal Coverage Angle: 90° Included Angle, -6dB/2kHz, Half Space
    • Audio Connection: 7", Color-coded, Pre-tinned Leads
  • Component
    • Baffle Dimension: 12 7⁄8" (Diameter) x 5⁄16" (H)
    • Backbox Dimension: 12 5⁄16" (Diameter) x 4 ¼" (H)
    • Mounting Support Dimension: 23 ¾" (W) x 14 3⁄8" (H) x 9⁄16" (D)
    • Combined Weight: 15 lbs.
    • Loudspeaker Model: C10X/BU/WS/VC
    • Loudspeaker Specs: 8" O.D. loudspeaker, 10 oz. magnet
    • Transformer: TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)
    • Baffle: BR8WS: round, steel, stud-mount
    • Finish: White powder coat finish on baffle
    • Backbox: ERD8U: round, steel
    • Mounting Support: SSB-3: rust-resistant steel
    • Other: Volume control knob included
