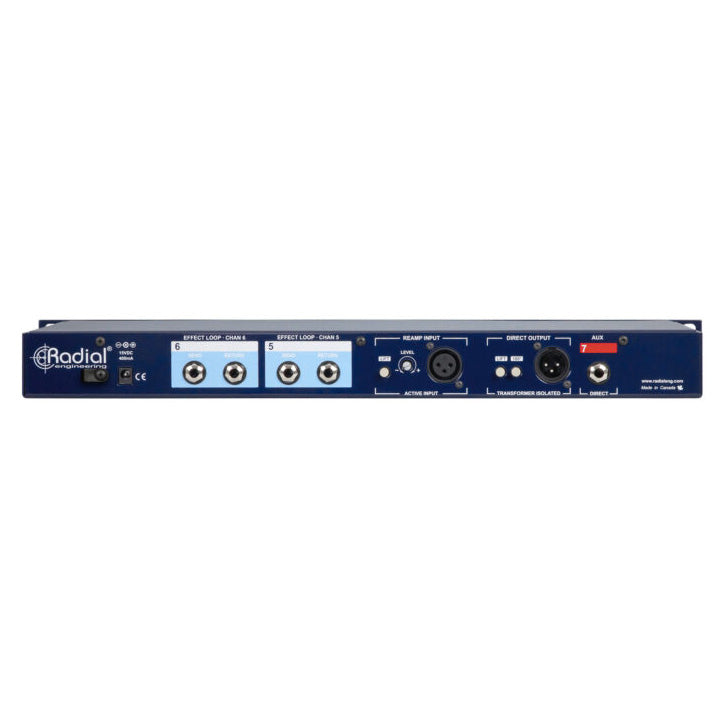

Radial JD7 Guitar Signal Distribution and Routing System
Radial JD7 Guitar Signal Distribution and Routing System
SoundPro Item: 88255 | Part Number: JD7
Usually ships in 5-7 business days
- Guitar Signal Distribution and Routing System
- Drive up to 7 amplifiers and 2 effects loops at the same time
- Jensen transformer isolation eliminates hum and buzz
- Built-in Radial Direct box and Reamp capabilities
- Drag control load correction for natural tone
The JD7™ is a guitar signal splitter that is able to drive as many as seven amplifiers at the same time without introducing noise, signal loss, or hum and buzz from ground loops.
- Audio circuit type 100% discrete class-A with transformer isolation
- Number of channels 2 Input 7 Outputs
- Frequency response 20Hz ~ 20kHz (± 1dB)
- Dynamic range 125dB (unbalanced input to unbalanced output)
- Total harmonic distortion 0.05% @ 1k (unbalanced) 0.1% @ 1k (balanced)
- Intermodulation Distortion 0.2% @ -20dBu
- Input Impedance Variable from 10k Ohms ~ 1megaOhm
- Output Impedance ¼" unbalanced: 10k Ohms; XLR balanced: 150 Ohms
- Noise Floor -115dBu
- Maximum Input +13dBu (unbalanced) +23dBu (balanced)
- Features
- Input pad, 180° polarity reverse, Ground lift, Drag Control, Effects Loop
- Input Connectors: 1/4", XLR
- Output Connectors: 1/4", XLR
- Construction 14 gauge steel chassis & outer shell/li>
- Size (LxWxD) 17.5x6x1.75" (44.5x15.25x4.45cm)
- Weight 7.5lb (3.4 kg)
- Shipping size (LxWxD) 22x10.375x4.5" (55.9x26.4x11.4cm)
- Shipping weight 8lb (3.63kg)
- Power +15VDC/400mA adapter included
- Conditions For use in dry locations only between 5°C and 40°C
