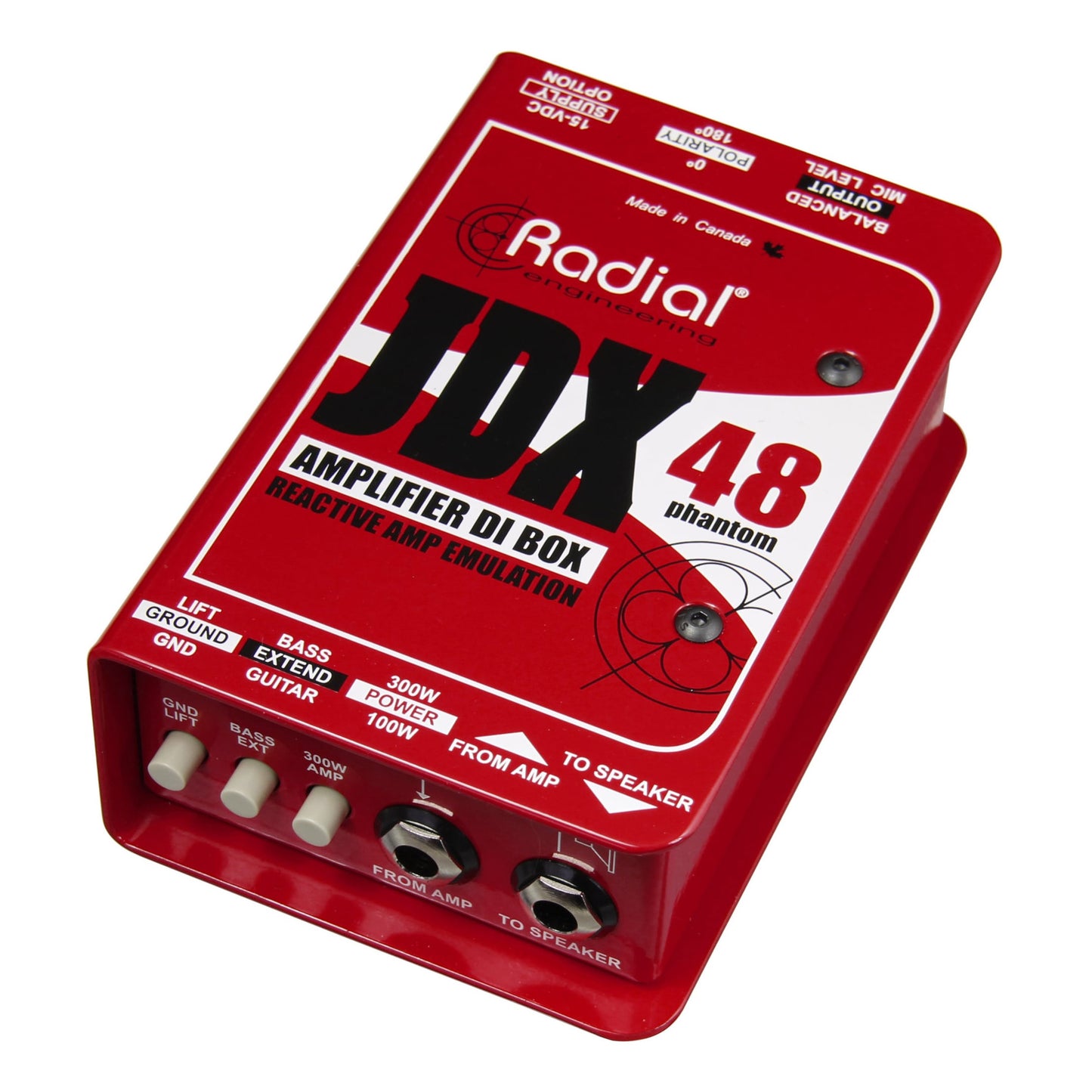

Radial JDX 48 Guitar Amp Direct Box
Radial JDX 48 Guitar Amp Direct Box
SoundPro Item: 26443 | Part Number: JDX-48
Usually ships in 5-7 business days
- Capture the sound of your amplifier through a direct box
- Delivers consistent tone across every performance
- Works equally well on electric guitar and bass
- Can be powered from 48V phantom or DC supply
- 180° polarity reverse, Ground lift
The JDX 48™ is a direct box designed to capture the sound of an electric guitar amplifier by connecting between the amp head and the speaker cabinet, providing a balanced feed for the PA system that sounds like a well-placed microphone on your amp.
The JDX 48 makes it easy to get a consistent and natural amplifier tone through the PA system night after night, by taking a feed directly from your amplifier and employing Radial's popular JDX speaker emulation that produces an effect similar to placing a dynamic microphone in front of a 4x12 half stack cabinet. This gives you a more manageable sound onstage for gigs where feedback is an issue, or if mic'ing your amp isn't an option. For artists that employ in-ear monitoring systems, the JDX 48 provides consistent tone each night in the monitor mix for shorter setup times and a more comfortable audio feed for the artist.
The JDX 48 can be powered using 48V phantom from the mixing console, for a cleaner setup on stage that eliminates the need to carry a power supply to the gig. However, for times when phantom power may not be available, the JDX 48 also ships with a separate DC power supply - giving you a redundant powering option so you never have to perform without your JDX.
- Audio circuit type Discrete Class-A - Transformer Isolated
- Frequency response Shaped for guitar use
- Dynamic range 114dB
- Total harmonic distortion <0.015% (+10dBu input @ 1KHz
- Intermodulation Distortion 0.03% (+10dBu input @ 1KHz)
- Input Impedance 15kΩ
- Output Impedance 2kΩ (XLR out)
- Noise -100dBu below 0dBu
- Maximum Input 120W @ 8Ω
- Maximum Output +14dBu (clip level)
- Input Connectors One 1/4" input
- Output Connectors One XLR output, one 1/4" output
- Extras Bass extension lowers frequency response for bass guitar, 300W amp increases power handling from 100W to 300W, Active speaker emulation band-pass filter General
- Construction 14-gauge steel chassis and outer shell
- Dimensions (L x W x D) 6.25 x 5 x 2 inches (159 x 127 x 51mm)
- Weight 2.80lbs (1.28 kg)
- Power 48V phantom or +15VDC/400mA adapter Included
- Conditions For use in dry locations only between 5°C and 40°C
