Radial OX8-r 8-Channel Microphone Splitter
Radial OX8-r 8-Channel Microphone Splitter
SoundPro Item: 88462 | Part Number: OX8-R
Usually ships in 5-7 business days
- Eclipse ET-MS10 transformers
- Balanced 8-channel microphone signal splitter
- Delivers high quality audio without distortion
- Eliminates hum and buzz caused by ground loops
The Radial OX8 is a professional audio tool that is equally at home on a live stage as it is in a broadcast studio, splitting eight microphone signals to multiple destinations simultaneously without noise or distortion, and eliminating hum and buzz from ground loops. Each channel is configured with a balanced input, a direct out which also serves as a return path for 48V phantom power, a thru-put with a ground lift switch, and a fully transformer-isolated output. Each channel also benefits from an ultra-short signal path and built in RF filters to ensure absolute quiet performance even in the most noise-prone environments.
Note: This listing is for the OX8 with Eclipse ET-MS10 transformers.
- Audio circuit type Passive transformer based mic level splitter
- Transformer choice of Jensen JT-MB-CPC or Radial Eclipse MS10
- Number of channels 8
- Frequency response Jensen 20Hz ~ 20KHz (+0dB/-0.2dB) | Radial 20Hz ~ 18KHz (+0dB/-3dB)
- Dynamic range Jensen 140dB | Radial 140dB
- Total harmonic distortion Jensen 0.003% @1kHz | Radial 0.005% @ 1kHz
- Phase Deviation Jensen 0.7° @ 100Hz; 2.8° @20Hz | Radial 1° @ 100Hz; 5° @ 20Hz
- Input Impedance Source dependent, 10kΩ with Pad on, balanced
- Output Impedance Source dependent, 10kΩ with Pad on, balanced
- Common Mode Rejection Ratio Jensen -115dB @60Hz | Radial 114dB @ 60Hz
- Maximum Input Jensen +2dBu @20Hz | Radial +2dBu @20Hz
- Features
- Input pad, Ground lift

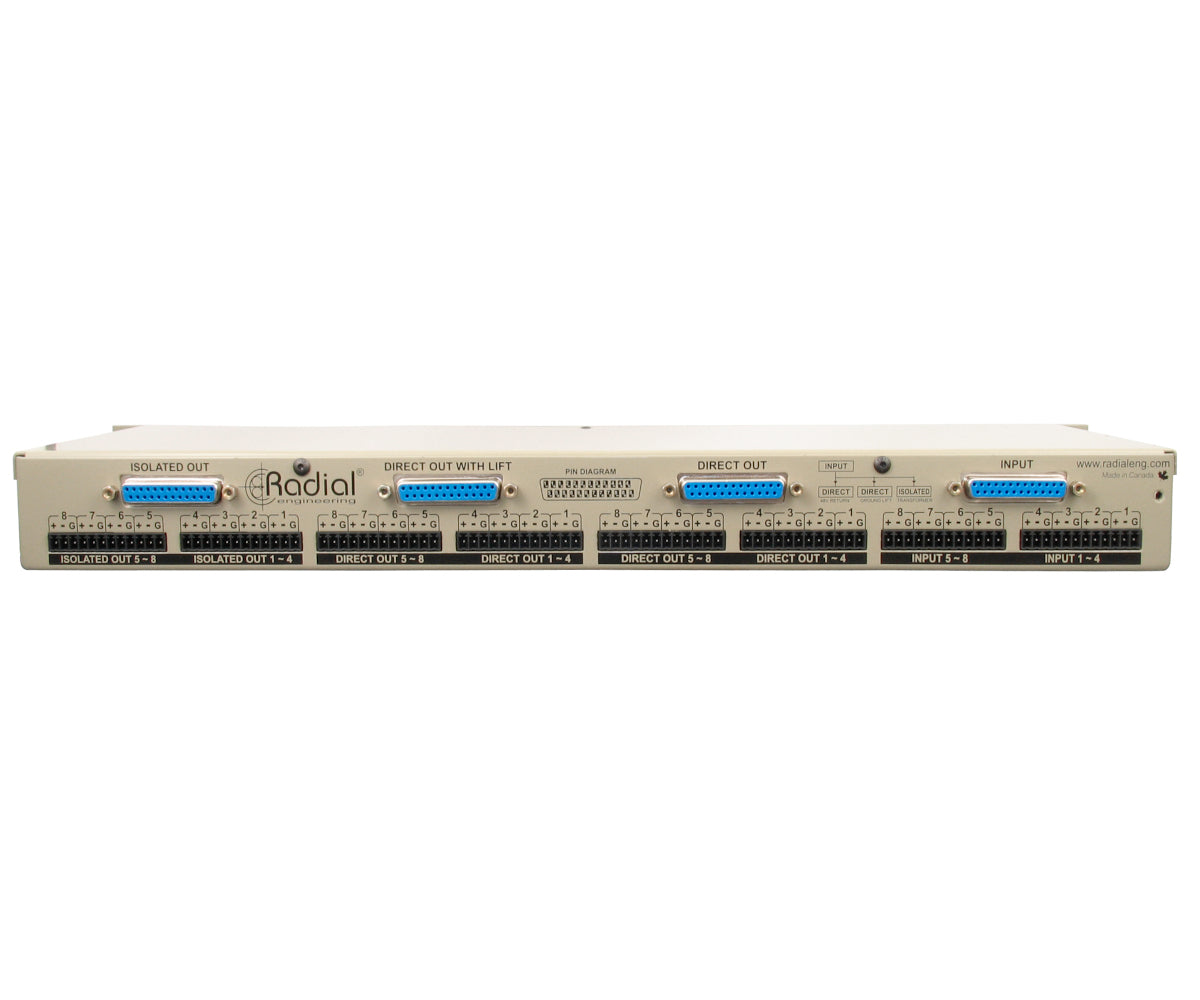

- Input Connectors: XLR, Euroblock, DB-25
- Output Connectors: Euroblock, DB-25
- Construction 14-gauge steel
- Size (LxWxD) 19x6x1.75" (48.25x15.25x4.45cm)
- Weight 7.5lb (3.4 kg)
- Shipping size (LxWxD) 22x10.375x4.5" (55.9x26.4x11.4cm)
- Shipping weight 8lb (3.63kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
