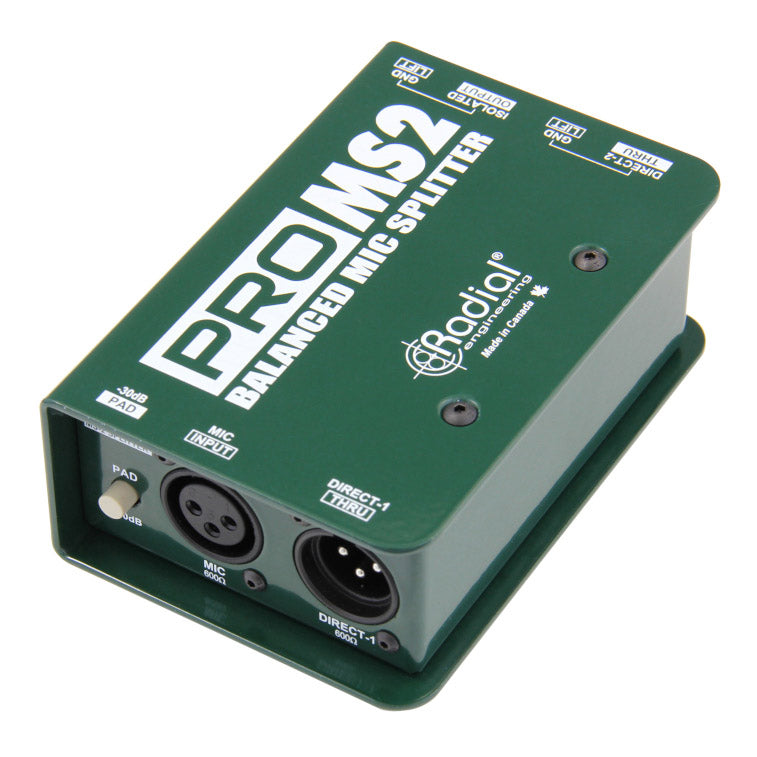

Radial ProMS2 Passive 2-Way Microphone Splitter
Radial ProMS2 Passive 2-Way Microphone Splitter
SoundPro Item: 10155 | Part Number: PROMS2
Usually ships in 5-7 business days
- High performance Eclipse transformer for optimal signal transfer
- Equipped with direct, isolated and auxiliary outputs for 3-way split
- May be rack-mounted in the J-Rak for multi-channel use
- Rugged 14-gauge steel construction for added durability and shielding
The ProMS2™ is a balanced mic-level splitter designed to send a signal to multiple destinations simultaneously on stage, with one transformer-isolated output and two direct outputs.
The ProMS2 is a mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A high quality Eclipse transformer inside provides galvanic isolation to eliminate hum and buzz from ground loops, while delivering a wide frequency response and low distortion. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to be connected as well. The ProMS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
- Audio circuit type Passive
- Transformer Eclipse ET-MS10
- Frequency response 20Hz ~ 20KHz (+0dB -1dB)
- Dynamic range >140dB
- Gain -0.5dB
- Total harmonic distortion 0.001%
- Intermodulation Distortion 0.003%
- Phase Deviation 1° @20Hz
- Input Impedance Source dependent, 10kΩ with Pad on, unbalanced
- Output Impedance Source dependent, 10kΩ with Pad on, balanced
- Common Mode Rejection Ratio -115dB at 60Hz
- Noise Floor -140dB
- Maximum Input +26dBu
- Features
- Input pad
- Input Connectors: XLR-F
- Output Connectors: XLR-M
- Construction 14-gauge steel chassis & outer shell
- Weight 1.55lb (0.7kg)
- Shipping weight 1.92lb (0.87kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
