RCF NX 912-SMA 12-Inch Powered Stage Monitor
RCF NX 912-SMA 12-Inch Powered Stage Monitor
SoundPro Item: 141353 | Part Number: NX912-SMA
Usually ships in 5-7 business days
- 2100W Class-D bi-amplification
- 1.75" Compression Driver
- Up to 130 dB Sound Pressure Level
- 50-20000 Hz linear frequency response
- 12" Woofer
- FiRPHASE zero degrees phase technology
- 70°x100° Constant Directivity Coverage Angle
- Perfectly tailored for horizontal or vertical deployment
- Bass Motion Control woofer excursion management

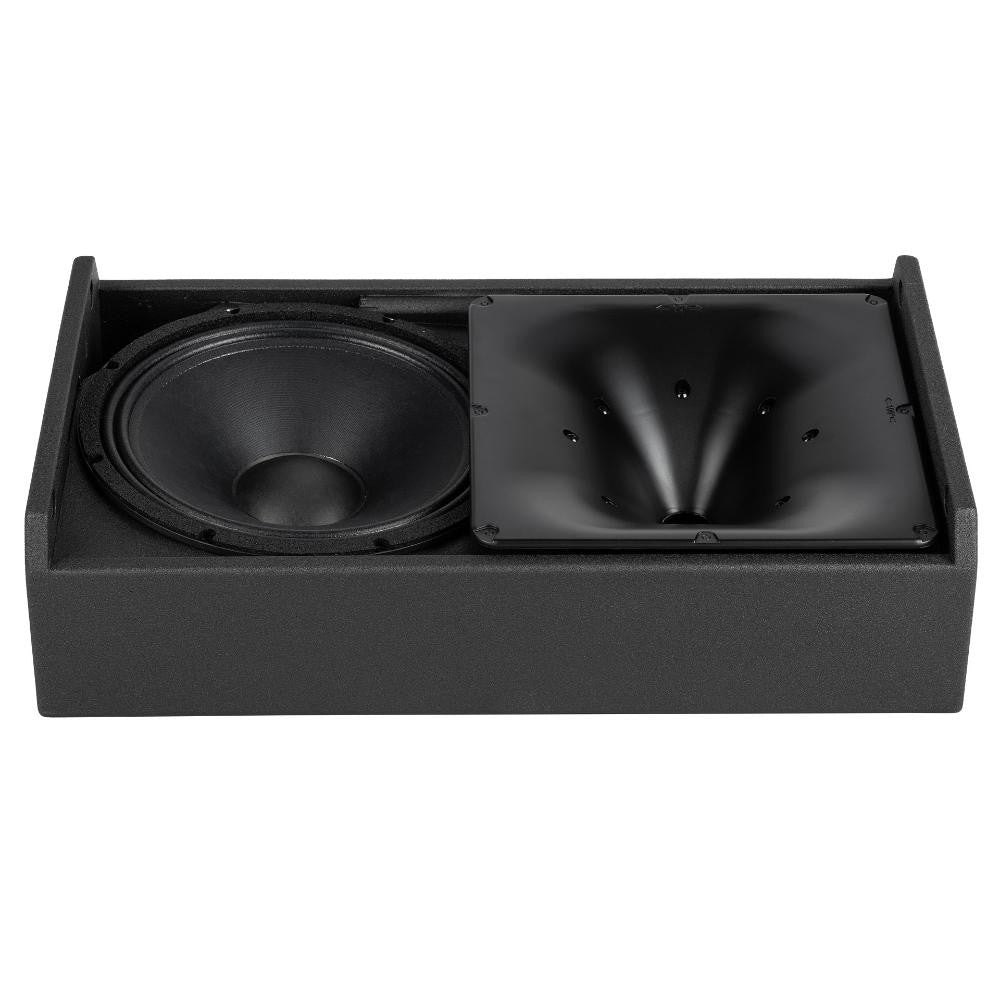

NX 912-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 12” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 130dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 912-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 912-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.
- Acoustical
- Frequency response: 50 hz ÷ 20000 hz
- Max spl @ 1m: 130 db
- Horizontal coverage angle: 100°
- Vertical coverage angle: 70°
- Transducers
- Compression driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 12'', 2.5'' v.c
- Input/output section
- Input signal: Bal/unbal
- Input connectors: Combo xlr/jack
- Output connectors: Xlr
- Input sensitivity: -2 dbu/+4 dbu
- Processor section
- Crossover frequencies: 1600 hz
- Protections: Thermal, rms
- Limiter: Soft limiter
- Power section
- Total power: 2100W peak
- High frequencies: 700W peak
- Low frequencies: 1400W peak
- Cooling: Convection
- Connections: Powercon true1 top in/out
- Standard complianceSafety agency: Ce compliant
- Physical
- Cabinet/case material: Plywood
- Handles: 1 on side and 1 on top
- Pole mount/cap: Yes
- Grille: Steel
- Color: Black
- Size
- Height: 320 mm / 12.6 inches
- Width: 620 mm / 24.41 inches
- Depth: 394 mm / 15.51 inches
- Weight: 20 kg / 44.09 lbs
- Shipping
- Package height: 675 mm / 26.57 inches
- Package width: 425 mm / 16.73 inches
- Package depth: 370 mm / 14.57 inches
- Package weight: 23 kg / 50.71 lbs
