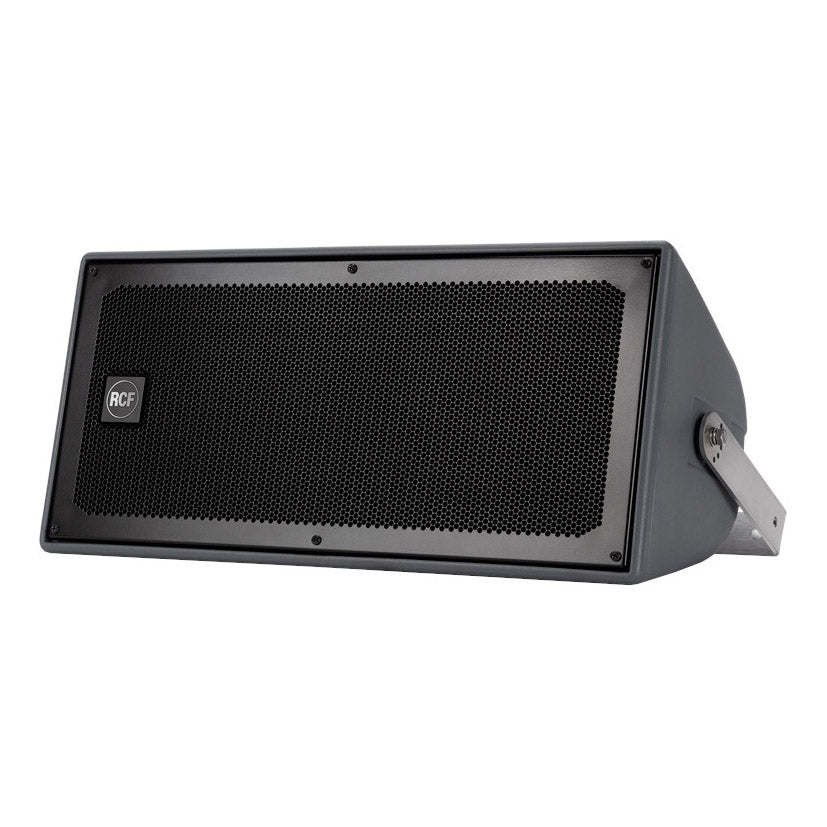

RCF P 5228-L Dual 8-Inch Weatherproof Outdoor Speaker

RCF P 5228-L Dual 8-Inch Weatherproof Outdoor Speaker

SoundPro Item: 33038 | Part Number: 13000202

$1,899.00
$2,499.00 $1,899.00
Your Price Sold out
MSRP: $2,499.00 | MAP: $1,899.00

Usually ships in 5-7 business days

  • 500 W RMS power handling
  • 131 dB max SPL
  • 80 Hz ÷ 20000 Hz frequency range
  • 2 x 8" neodymium woofer, 2.5" v.c.
  • 2 x 1.75" v.c. neodymium compression driver
  • 90° x 20° constant directivity
  • Weatherproof IP55 cabinet with UV protection
  • Aluminum grille
  • AISI 316L stainless steel bracket
  • Amphenol IP67 4 pole input connector
Log in or register for YOUR best price

The P 5228-L is a weatherproof full range, two-way speaker, suitable for a variety of professional applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, highly controlled 20° vertical coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion with consistent directivity. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material and has a rotatable logo plate.

View full details
  • ACOUSTICAL
    • Frequency Response (-10dB): 80 Hz ÷ 20000 Hz Max SPL @ 1m: 131 dB Horizontal coverage angle: 90° Vertical coverage angle: 20° Directivity index Q: 11 System Sensitivity: 98 dB
  • POWER SECTION
      Amplification: Full Range Nominal Impedance: 8 ohm Power Handling: 500W Peak Power Handling: 2000W PEAK Protections: Dynamic active mosfet Crossover Frequencies: 1300 Hz Recommended Amplifier: 1000W
  • TRANSDUCERS
      Compression Driver: 2 x 1.0'' neo, 1.75'' v.c Woofer: 2 x 8'' neo, 2.5'' v.c
  • INPUT/OUTPUT SECTION Input connectors: Amphenol eco/mat IP 67
  • STANDARD COMPLIANCE
      IP protection grade: IP 55 Safety agency: CE compliant
  • PHYSICAL
      Cabinet/Case Material: PE Low Density Hardware: 4 x M8 inserts Grille: Aluminum with waterproof clothing Color: Gray
  • SIZE
      Height: 268 mm / 10.55 inches Width: 566 mm / 22.28 inches Depth: 250 mm / 9.84 inches Weight: 14 kg / 30.86 lbs
  • SHIPPING
      Package Height: 604 mm / 23.78 inches Package Width: 289 mm / 11.38 inches Package Depth: 289 mm / 11.38 inches Package Weight: 17 kg / 37.48 lbs
