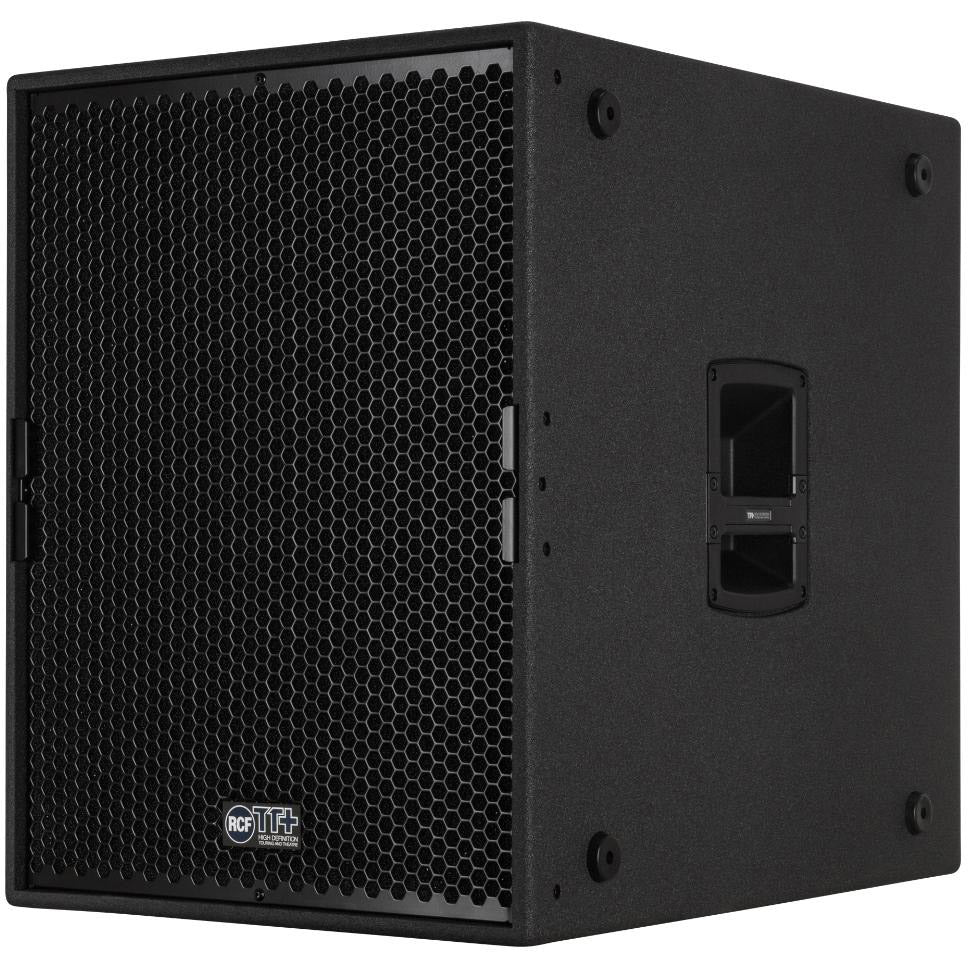

RCF TTS 18-AS-II 18-Inch Powered Subwoofer
RCF TTS 18-AS-II 18-Inch Powered Subwoofer
SoundPro Item: 113767 | Part Number: TTS 18-AS-II
Usually ships in 5-7 business days
- 137 dB SPL Max
- 30-400 Hz Frequency Range
- 1 x 18" Hyper Vented woofer, 4" Voice Coil
- DSP Controlled Input Section with selectable presets (e.g.cardioid)
- 1400W RMS Class-D Amplifier
- RDNet remote monitoring and control
- Vertical and horizontal placement with M20 pole receptacle on top and side
- Baltic Birch Cabinet
The RCF TTS 18-A II is a compact, high output subwoofer module ideal in combination with TT+ two-way systems. The RCF TTS 18-A II woofer features lightweight neodymium magnet, inside-outside copper voice coil; silicon double spiders; water resistant treated cone; magnet assembly with minimum power compression. The amplifier section features 1400W RMS SMPS class-D Amplifier with full DSP and RDNet network capabilities.
- ACOUSTICAL SPECIFICATIONS
- Frequency Response: 30 Hz ÷ 400 Hz
- Max SPL @ 1m: 137 dB
- Woofer18" neo, 4.0" v.c
- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: +4 dBu
- PROCESSOR SECTION
- Hi-Pass Frequencies: 30 Hz, 40 Hz
- Low-Pass Frequencies: Variable from 50 Hz to 100 Hz
- Protections: Thermal, RMS
- Limiter: Fast Limiter
- Controls: Gain, Eq, Preset Switch, Output Delay
- RDNet: Yes
- POWER SECTION
- Total Power: 2800W Peak, 1400W RMS
- Cooling: Forced
- Connections: Powercon IN/OUT
- PHYSICAL SPECIFICATIONS
- Cabinet/Case Material: Baltic birch plywood
- Hardware: 2 x M20
- Handles: 2 x Side
- Grille: Steel
- Color: Black
- SIZE
- Height: 708mm/27.87"
- Width: 540mm/21.26"
- Depth: 732mm/28.82"
- Weight: 52 kg/114.64 lbs
- SHIPPING INFORMATION
- Package Height: 780mm/30.71"
- Package Width: 800mm/31.5"
- Package Depth: 610mm/24.02"
- Package Weight: 56.8 kg/125.22 lbs
