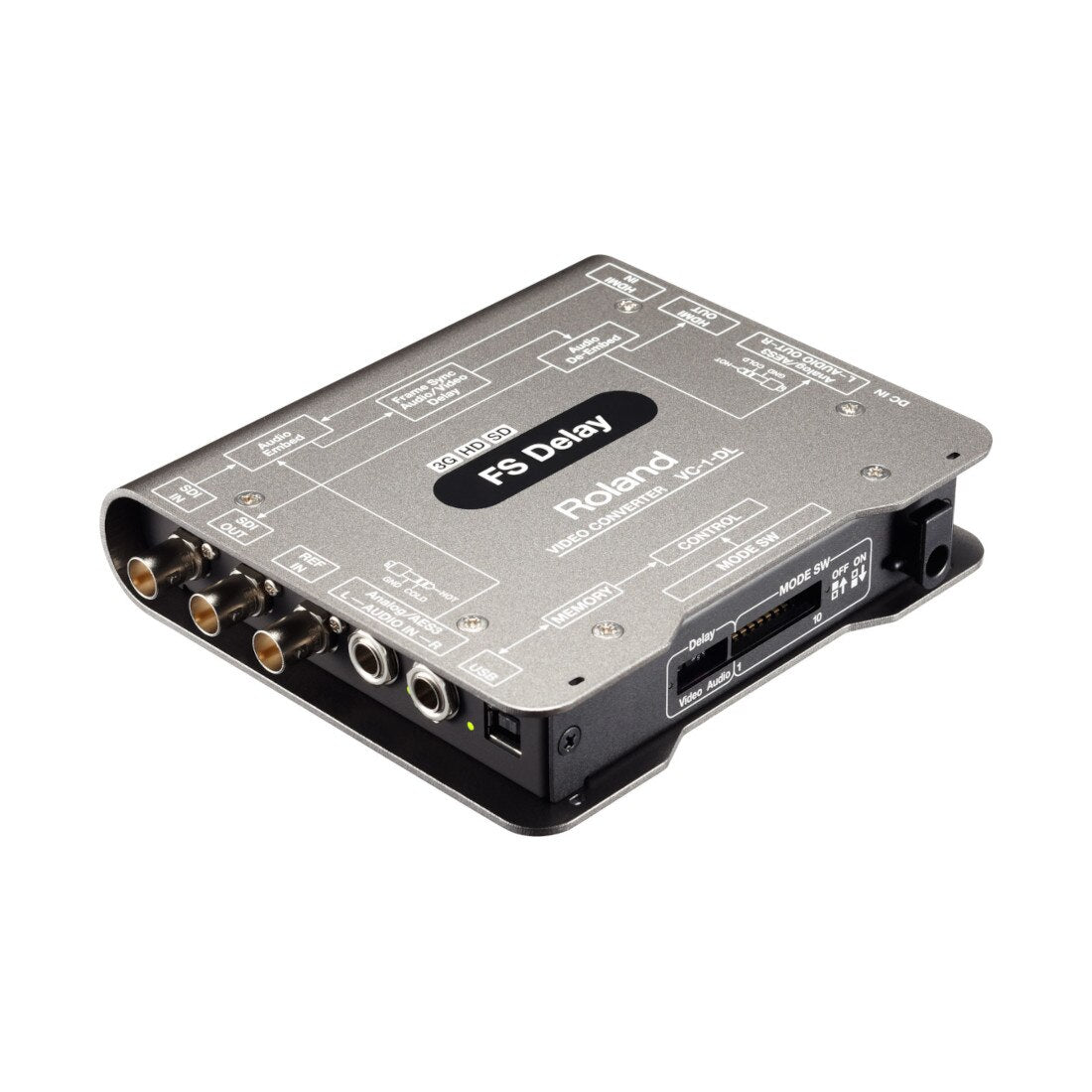

Roland VC-1-DL Video Converter
Roland VC-1-DL Video Converter
SoundPro Item: 37826 | Part Number: VC-1-DL
Usually ships in 5-7 business days
- HDMI to SDI Conversion
- SDI to HDMI Conversion
- Lossless Image Conversion
- 3G (Level A&B) /HD/ SD SDI
- HDCP Support
- Built-in Frame Synchronizer
- Audio Delay - up to 9 fields (4.5 frames)
- Video Delay - up to 9 fields (4.5 frames)
- VC-1 RCS, PC/MAC Control Application
- Selectable Channel for Embedded/De-Embedded Audio
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
In live production as you add more video components to a signal flow, latency is introduced. The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.
- INPUT
- SDI Connector: BNC type x 1
- HDMI Connector: Type A (19 pins) x 1
- Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
- Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
- Reference Connector: BNC type x 1
- Reference Signal Format: Black Burst, Bi-level, Tri-level
- Reference Impedance: 75 ohms
- PROCESSING
- Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames )
- Audio embedding
- Audio de-embedding
- OUTPUT
- SDI Connector: BNC type x 1
- HDMI Connector: Type A (19 pins ) x 1
- Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
- Digital Audio Connector: 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector )
- INPUT / OUTPUT FORMAT
- SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
- HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
- SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
- SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
- SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
- HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
- HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
- AUDIO INPUT / OUTPUT
- Analog Audio Input Level: +4dBu
- Analog Audio Maximum Input Level: +24dBu
- Analog Audio Input Impedance: 110 ohms
- Analog Audio Output Level: +4dBu
- Analog Audio Output Impedance: 600 ohms
- Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
- Digital Audio Output Impedance: 110 ohms
- USB Connector USB Type B (Hi-Speed USB) x 1
- Power Supply DC 9V
- Power Consumption 8W
- Operation Temperature +0 to + 40 degrees Celsius
- Dimensions (WxDxH) 5-15/16x5-1/8x1-3/16” (150x130x30mm)
- Weight1 lbs. 2 oz. (500g)
- Notes
- (0dBu=0.775Vrms)
- *1: When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.)
