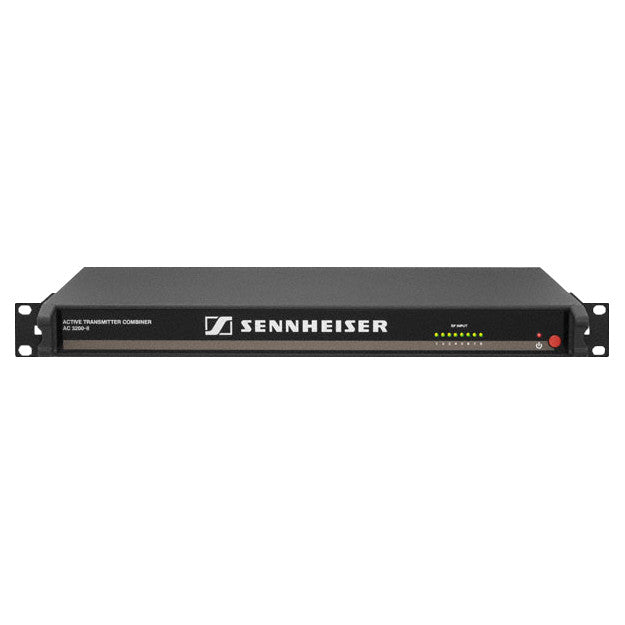

Sennheiser AC 3200-II 8-Channel Active Antenna Combiner

Sennheiser AC 3200-II 8-Channel Active Antenna Combiner

SoundPro Item: 41171 | Part Number: AC3200-II

$4,250.00
$4,999.00 $4,250.00
Your Price Sold out
MSRP: $4,999.00 | MAP: $4,250.00

Usually ships in 5-7 business days

  • Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
  • Significant improvement of RF performance for multi-channel systems
  • Broadband RF design to cover the UHF frequency range from 500-870 MHz
  • Maximum input power of 250 mW
  • LEDs on the front show whether a signal is present at the RF input
  • Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and
  • 3000 Series monitor transmitters
Log in or register for YOUR best price

The AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. The AC3200-II combines up to eight channels for transmission via one antenna, with a broadband design covering 500 - 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.

View full details
  • Impedance50 ohms
  • Dimensions436x215x44 mm
  • Weightapprox. 4 kg
  • Attenuation0 dB (+/- 1dB)
  • Power consumptionmax. 90 W
  • Operating temperature10 °C to +45 °C
  • RF frequency range500 – 870 MHz
  • Power supply12V DC
  • Antenna connectorBNC
  • Current consumptionmax. 7.5 A
