Sennheiser SKM 500 G4 Wireless Handheld Transmitter | Frequency: AW+ (470-558 MHz)
Sennheiser SKM 500 G4 Wireless Handheld Transmitter | Frequency: AW+ (470-558 MHz)
SoundPro Item: 118408 | Part Number: SKM 500 G4-AW+
Usually ships in 5-7 business days
- Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Note: Transmitter only, capsule sold separately.

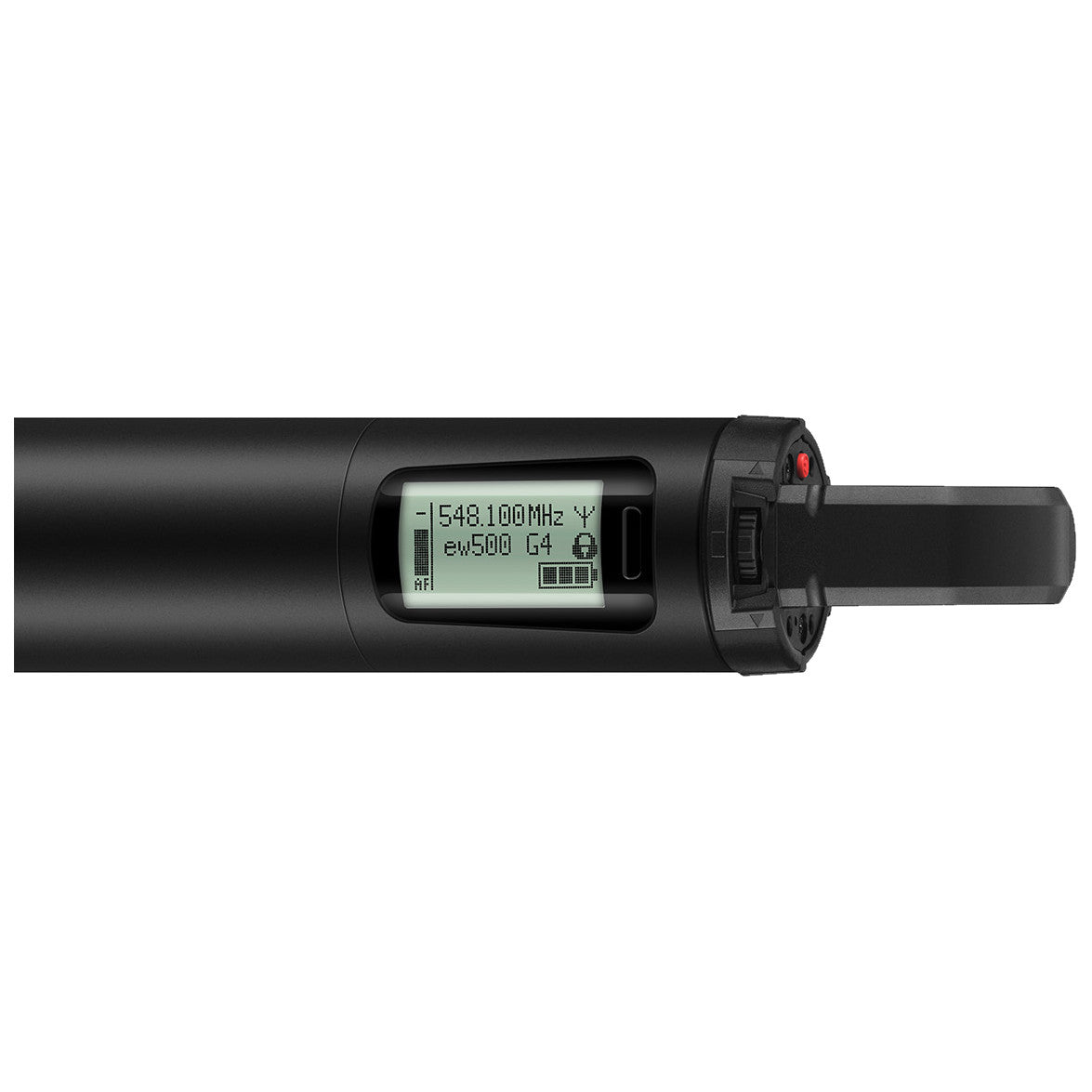

The SKM 500 G4 from Sennheiser is a wireless handheld microphone transmitter. Its lightweight black aluminum housing makes it perfect for live sound on stages of all shapes and sizes. Effortlessly synchronize this transmitter with a corresponding wireless receiver using its infrared interface, making setup fast and simple.
The SKM 500 G4 is designed for optimal compatibility with evolution wireless G4 500 Series systems. Choose from a wide variety of Sennheiser’s renowned microphone capsules (e 835, e 845, e 865, e 935, e 945—sold separately) to customize the transmitter to your application or project.
This handheld transmitter is available in different frequency options.
- Frequency range
- AS: 520 - 558 MHz
- Aw+: 470 - 558 MHz
- Bw: 626 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- GBw: 606 - 678 MHz
- Gw: 558 - 626 MHz
- Gw1: 558 - 608 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- DimensionsApprox. Ø 50 x 265 mm
- CompanderSennheiser HDX
- THD, total harmonic distortion≤ 0.9 %
- Weight (incl. batteries)approx. 450 g
- Signal-to-noise ratio≥ 115 dBA
- RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidthup to 88 MHz
- Peak deviation±48 kHz
- Nominal deviation±24 kHz
- Operating timeTypically 8 h
- ModulationWideband FM
- Power supply2 AA batteries, 1.5V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mA
- with transmitter switched off: ≤ 25 μA
- Powering3V battery / 2.4V rechargeable battery
- Transmission frequencyMax. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response80 – 18,000 Hz
- Temperature Range-10 °C to +55 °C
- Frequency stability≤ ±15 ppm
