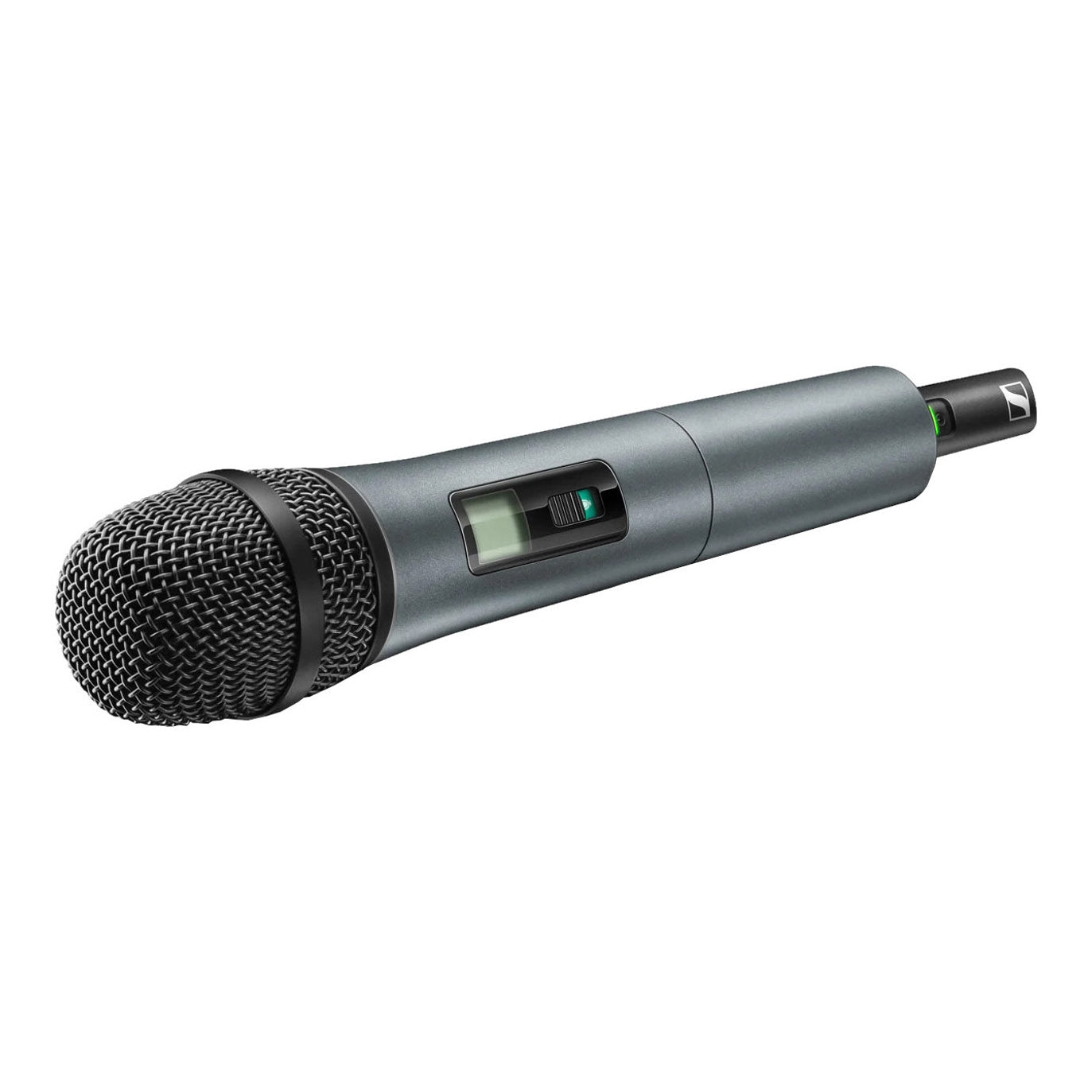

Sennheiser SKM 865-XSW-A Handheld Wireless Microphone Transmitter
Sennheiser SKM 865-XSW-A Handheld Wireless Microphone Transmitter
SoundPro Item: 30688 | Part Number: SKM 865-XSW-A
Usually ships in 5-7 business days
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Quality sound wrapped in a build that’s made to last. Delivering solid wireless transmission with up to 10 compatible channels, the SKM 865-XSW-A Wireless Handheld Transmitter from Sennheiser is perfect for live vocals. Designed to be user-friendly, even for users that aren’t tech-savvy, the XSW 1-865 features easy setup via remote channel synching, automatic frequency management, and selectable UHF frequencies within a large bandwidth.
The XSW 1-865 includes integrated antennas, antenna-switching diversity reception, and Sennheiser’s renowned e 865 condenser supercardioid mic capsule.
- Dimensionsapprox. 260 x 50 mm
- Weightapprox. 245g
- Operating timeapprox. 10 hrs
- Power supply2 AA size batteries, 1.5 V
- AF frequency response80-16,000 Hz
- Microphonecondenser
- Frequency response50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion≤ 0.9%
- Pick-up patternsuper-cardioid
- Signal-to-noise ratio≥ 103 dBA
- RF output power10 mW
- Switching bandwidthup to 24 MHz
- Modulationwideband FM
- Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Frequency 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range
- A: 548-572 MHz
- GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Sensitivity< 3 μV at 52 dB(A)rms S/N
- Squelchswitchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity1.8 mV / Pa
- Audio adjustment range40 dB, adjustable in 5-dB steps
- Line / Mic level20 dB, switchable
- Temperature Range: operation0°C to +40°C, storage: –20°C to +70°C
- Receiver Principledouble superheterodyne
- Diversity principleTrue Diversity
