Sennheiser XSW 2-865 Wireless Handheld Microphone System
Sennheiser XSW 2-865 Wireless Handheld Microphone System
SoundPro Item: 56825 | Part Number: XSW 2-865
Usually ships in 5-7 business days
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels

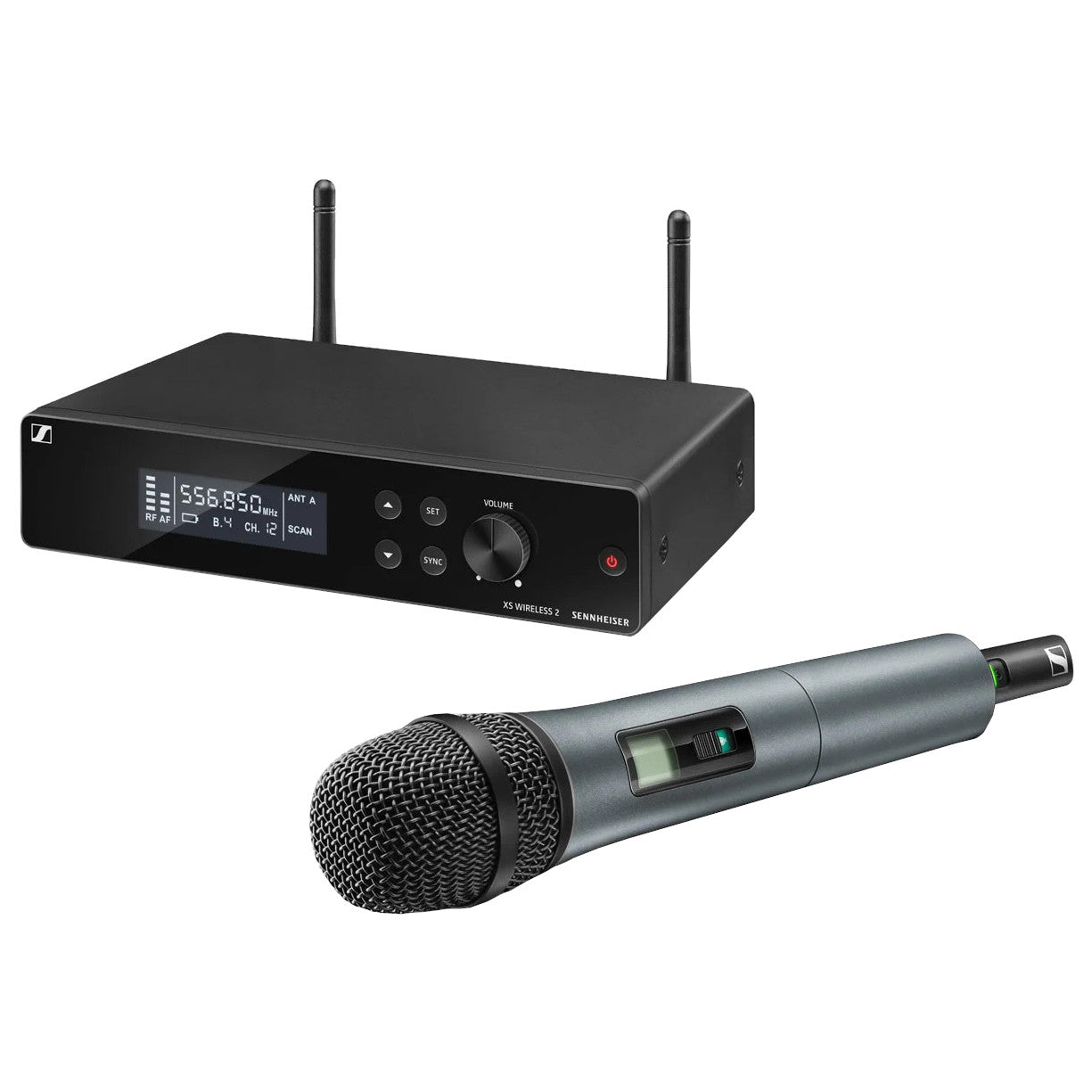

The XSW 2-865 Wireless Handheld Microphone System from Sennheiser is a wireless sound setup that grows with you. This system includes the XSW 2 wireless receiver and XSW 1-865 handheld microphone transmitter as well as a mic clamp, power supply, two AA batteries, rackmount kit, and storage pouch.
- Receiver
- Dimensions: approx. 200x42x127 mm
- Weight: approx. 680g
- Power supply: 12 V DC nom. / 300 mA
- Housing: metal, microphone: robust ABS
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Microphone
- Dimensions: approx. 260 x 50 mm
- Weight: approx. 245g
- Operating time: approx. 10 hrs
- Power supply: 2 AA size batteries, 1.5 V
- AF frequency response: 80-16,000 Hz
- Microphone: condenser
- Frequency response: 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: super-cardioid
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Modulation: wideband FM
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Frequency: 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range
- A: 548-572 MHz
- GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.8 mV / Pa
- Audio adjustment range: 40 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: True Diversity
