Sennheiser XSW-D PEDALBOARD SET Wireless Pedalboard System
Sennheiser XSW-D PEDALBOARD SET Wireless Pedalboard System
SoundPro Item: 37658 | Part Number: XSW-D PEDALBOARD SET
Usually ships in 5-7 business days
- One touch ease of use
- 2.4GHz digital transmission for worldwide operation
- 250 ft operating range in optimal conditions
- Up to 5 hours battery life per charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver

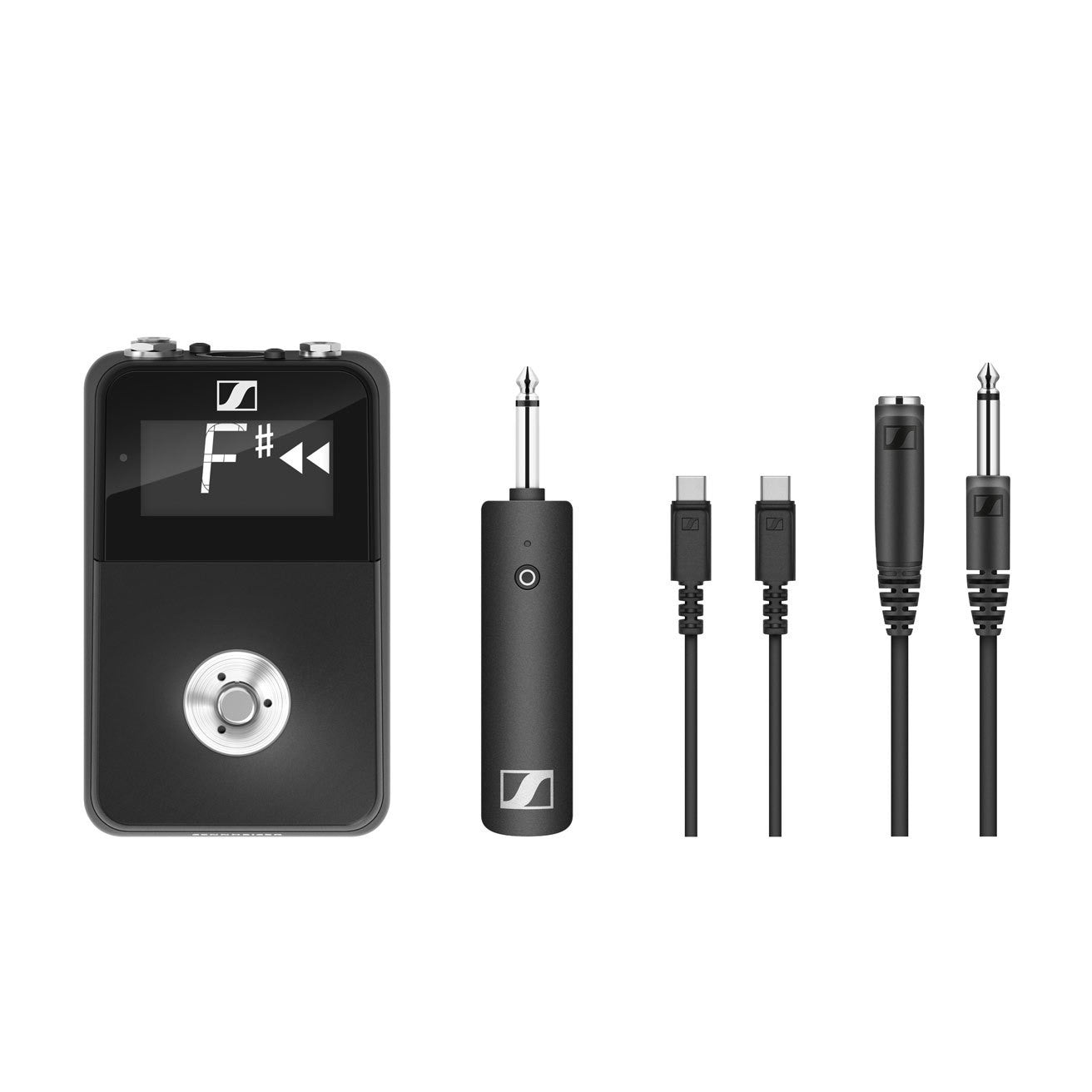

Sennheiser's XSW-D Pedalboard Set allows you to take your guitar performance wireless while still using a pedalboard and without compromising on reliability. This set includes an XSW-D 1/4" transmitter, an XSW-D pedalboard receiver, a power supply, an extension cable, USB-A to USB-C and USB-C to USB-C charging cables, a labeling sticker pack, and a belt clip.
- USB C Interface TX63 Instrument Transmitter
- Input Voltage: typ. 5 V
- Charging Temperature: 32°F to 140°F (0°C to 60°C)
- Charging Time: typ. 3 hours
- Battery Pack TX63 Instrument Transmitter
- Cell Type: Li-ion
- Nominal Voltage: 3.7 V
- Cell Capacity: 850 mAh
- Operating Time: up to 5 hours
- USB C Interface RX Pedalboard Receiver
- Output Current: typ. 380mA
- Input Voltage: 5 V
- Current Consumption: max. 185mA
- External Power Supply Interface RX Pedalboard Receiver
- Input Voltage: 9-15V, typ. 12V
- Current Consumption: max. 500mA @ 9V
- AF Characteristics
- Codec: aptX® Live
- Audio Frequency Response
- 3.5mm Jack/XLR: 80-18,000Hz
- 6.3mm Jack: 10-18,000Hz
- Audio Output: max. 12dBu
- Signal-to-Noise Ratio: ≥106dB
- THD: <0.1%
- Audio Latency: < 4 ms
- Frequency Range2,400 - 2,483.5MHz
- Transmission Power (EIRP)max. 10mW
- ModulationGFSK with TDMA
- Dimensions
- TX: approx. 4.8" x 0.94" x 1.1"
- RX: approx. 5.12" x 0.94" x 1.1"
- Weight
- TX: approx. 2.72 oz
- RX: approx. 1.96 lbs
