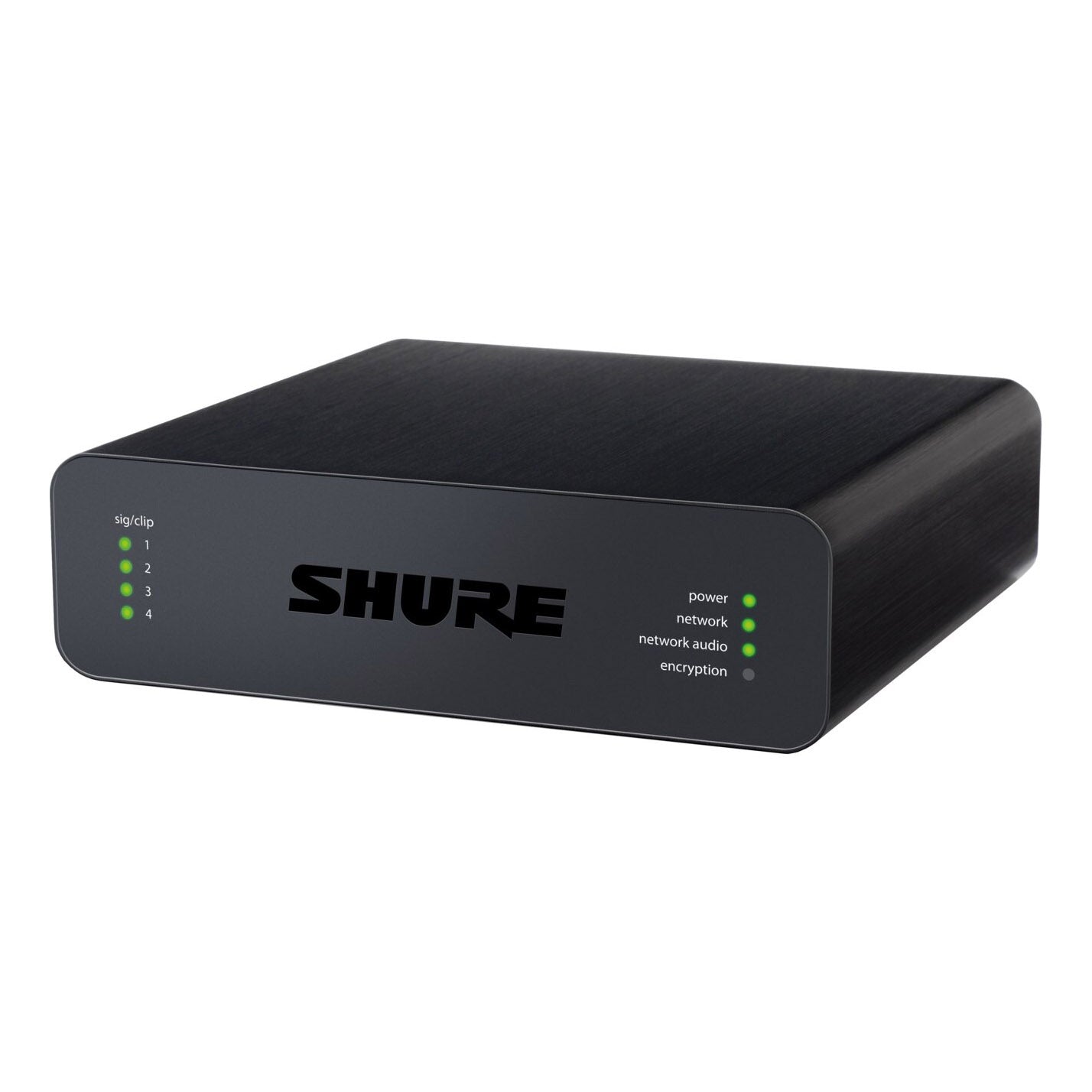

Shure ANI4OUT (XLR) Audio Network Interface
Shure ANI4OUT (XLR) Audio Network Interface
SoundPro Item: 81727 | Part Number: ANI4OUT-XLR
Usually ships in 5-7 business days
- Single Ethernet port carries Dante audio, power (PoE - class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
- Browser-based software control for all device parameters, per output channel: Mute control, digital gain and polarity control
- 1/3 Rack unit wide
The ANI4OUT Converts Dante™ digital audio signal to four discrete line / mic analog signals for easy audio routing and convenient browser-based remote control.
- Input(1) RJ45
- Outputs(4) XLR connector
- Configurationimpedance balanced
- Polaritynon-inverting, any input to any output
- Power RequirementsPower over Ethernet (PoE), Class 0
- Power Consumption10W, maximum
- Weight1.5 pounds
- Dimensions (HxWxD)1.6" x 5.5" x 5"
- Operating Temperature Range20°F to 104°F (-6.7°C to 40°C)
- Storage Temperature Range-20°F to 165°F (-29°C to 74°C)
- Frequency Response20 to 20,000Hz
- Input (Dante digital audio)
- Channel Count: 4
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Dynamic Range (Dante-to-analog)117 dB
- THD<0.05%
