Shure BLX14 Wireless Guitar System | Frequency: H10 (542-572 MHz)
Shure BLX14 Wireless Guitar System | Frequency: H10 (542-572 MHz)
SoundPro Item: 44264 | Part Number: BLX14-H10
In stock and ready to ship
- Guitar system includes a bodypack transmitter, single-channel receiver, guitar cable, power supply, and two AA batteries
- Untethered performance for guitar and bass players
- Simple setup and intuitive interface
- 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)

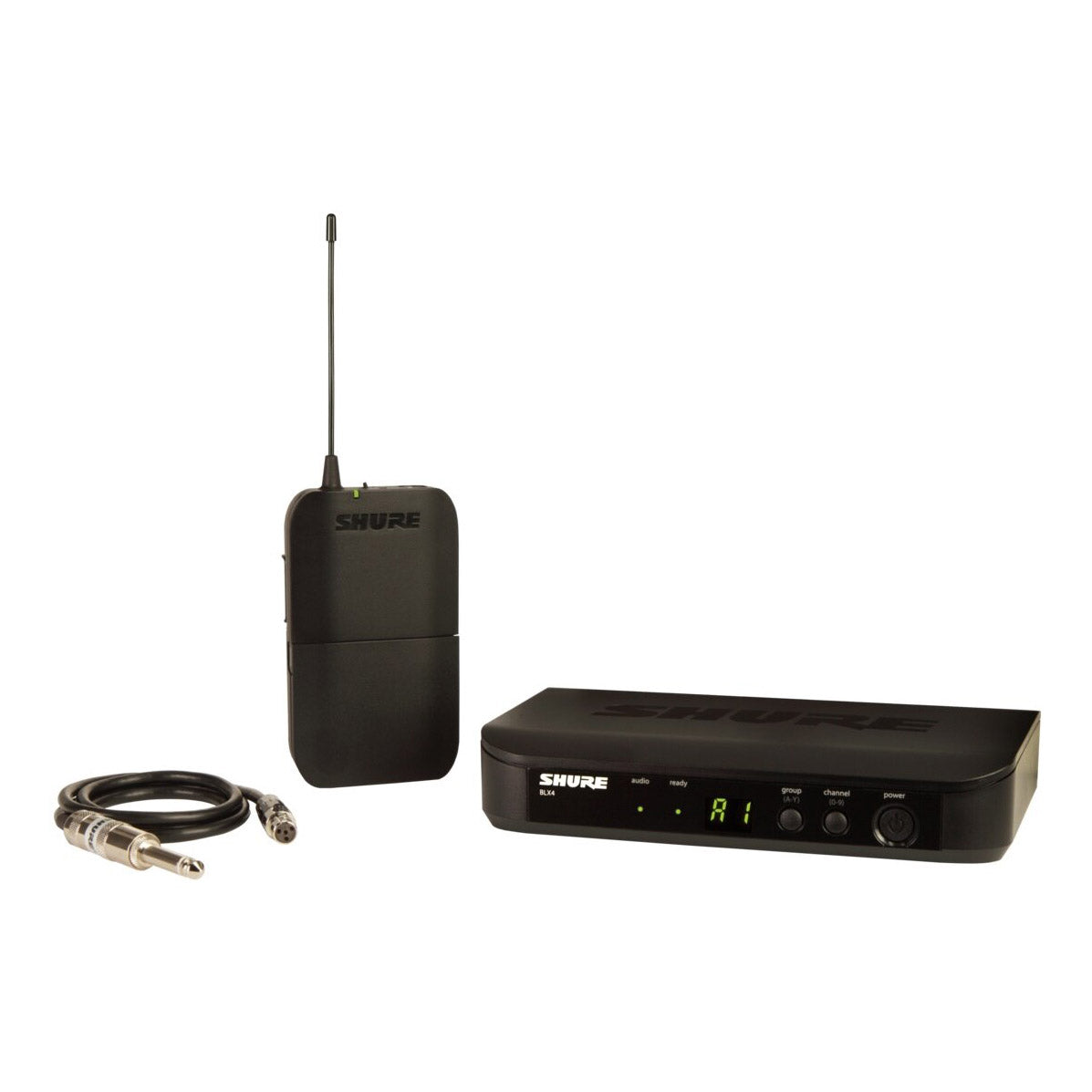

The BLX14 Wireless Guitar System from Shure is comprised of a BLX1 Bodypack Transmitter, a BLX4 Single Channel Receiver, a WA302 Guitar Cable, a power supply, and two AA batteries.
Add versatility to your musical performance. With its simple setup and intuitive interface, the BLX14 offers untethered performance for guitar and bass players.
- System
- Working Range: 91 m (300 ft) Line of Sight
- Audio Frequency Response: 50 to 15,000 Hz
- Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
- Dynamic Range: 100 dB, A-weighted, typical
- Operating Temperature: -18°C (0°F) to 57°C (135°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
- BLX1 Transmitter
- Audio Input Level
- max: -16 dBVmaximum
- min (0 dB): +10 dBVmaximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- RF Transmitter Output: 10 mW, typical
- Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
- Weight: 2.6 oz. (75 g), without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
- BLX4 Receiver
- Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
- XLR connector: –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions (HxWxD) 1.57" x 7.4" x 4.06"
- Weight: 8.5 oz. (241 g)
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
