Shure GLXD14+/PGA31 Dual Band Wireless Headworn Microphone System
Shure GLXD14+/PGA31 Dual Band Wireless Headworn Microphone System
SoundPro Item: 137165 | Part Number: GLXD14+/PGA31-Z3
Usually ships in 5-7 business days
- Dual Band Wireless Technology
- Automatic Frequency Management
- Smart Rechargeability
- Up to 16 Compatible Systems

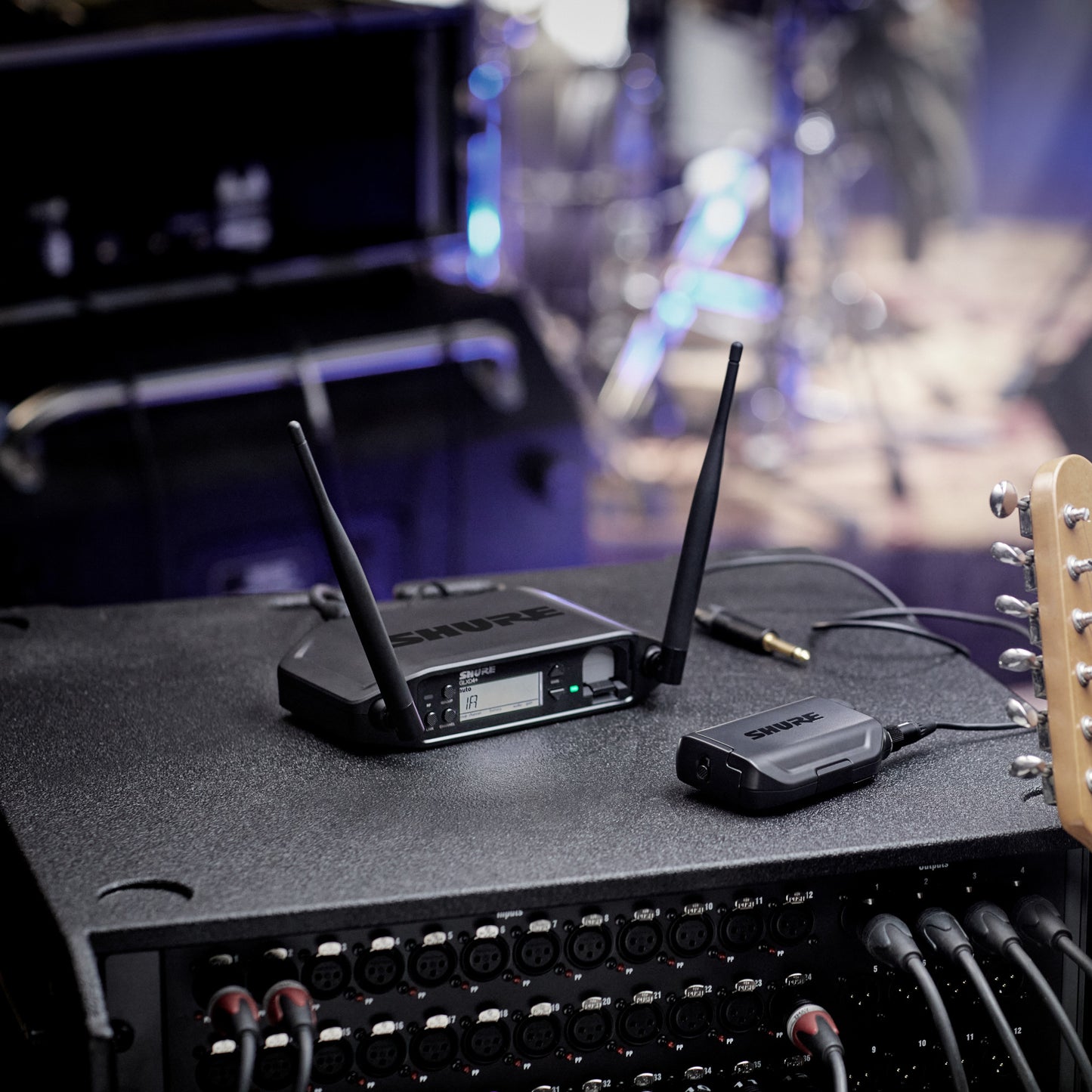

The Shure GLX-D+ Dual Band Wireless Headset System features the PGA31 Headset Microphone for spoken word applications and the GLXD4+ tabletop receiver.
The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
- Compatibility
- With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
- Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range
- Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
- Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range 120 dB, A-weighted
- RF Sensitivity -88 dBm, typical
- Total Harmonic Distortion 0.07%, typical
- RF Output Power 10 mW E.I.R.P. max
- Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
- Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
- PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life Up to 12 hours
- GLXD1+ DUAL BAND BODYPACK TRANSMITTER
- Dimensions (HxWxD) : 4.5x2.6x1.1” (115x66.94x28.51mm), without antenna
- Weight: 5.4 oz (153.1g), without battery
- Power Requirements: 3.7V Rechargeable Li-Ion
- Housing Cast: Metal, Black Powdercoat
- Input Impedance: 900 kΩ RF
- Output Power: 10 mW E.I.R.P. max
- TRANSMITTER INPUT
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
- Antenna Type: Dual Band Internal Monopole
- Pin Assignments TA4M
- 1: Ground (cable shield)
- 2: + 5 V Bias
- 3: Audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
- GLXD4+ DUAL BAND WIRELESS RECEIVER
- Dimensions (HxWxD): 7.2x4.8x1.6" (182.8x121.97x40.3 mm), antennas folded
- Weight : 10.9 oz (310g)
- Housing : Molded Plastic
- Power Requirements : 14.5V - 17V, 600mA
- Spurious Rejection: >35 dB, typical
- Gain Adjustment Range: -20 to 40 dB in 1 dB steps
- Phantom Power Protection: Yes
- Configuration
- XLR Output: Impedance Balanced
- 6.35 mm (1/4“) output: Impedance Balanced
- Impedance
- XLR Output: 100Ω
- 6.35 mm (1/4“) output: 100Ω (50Ω, Unbalanced)
- Maximum Audio Output Level
- XLR connector (into 600 Ω load): 1dBV
- 6.35 mm (1/4“) connector (into 3 kΩ load): +8.5 dBV
- Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4“) connector: Tip=audio, Ring/Sleeve=ground
- RECEIVER ANTENNA INPUT
- Impedance 50Ω
- Antenna Type Dual Band 1/2 Wave Sleeve Dipole, non-removable
- Maximum Input Level −20 dBm
- PGA31 Performance Headset Condenser Microphone
- Type: Electret Condenser
- Frequency Response: 60 to 20,000 Hz
- Polar Pattern: Unidirectional (Cardioid)
- Output Impedance @ 1 kHz, typical: 600Ω
- Audio Output Level: -50 dBV/Pa
- Signal-To-Noise Ratio[1] @ 1 kHz: 66 dB
- Maximum SPL[1] 1000 Ω load, @ 3% THD: 145.0 dB
- Dynamic Range[1] @ 1 kHz, 1000Ω load: 117.0 dB
- Equivalent Output Noise[1] Typical, A-Weighted: 28 dB
- Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
- Cable: 50" (1.3m)
- Connector: TA4F
- Net Weight: 1.59oz (45g)
