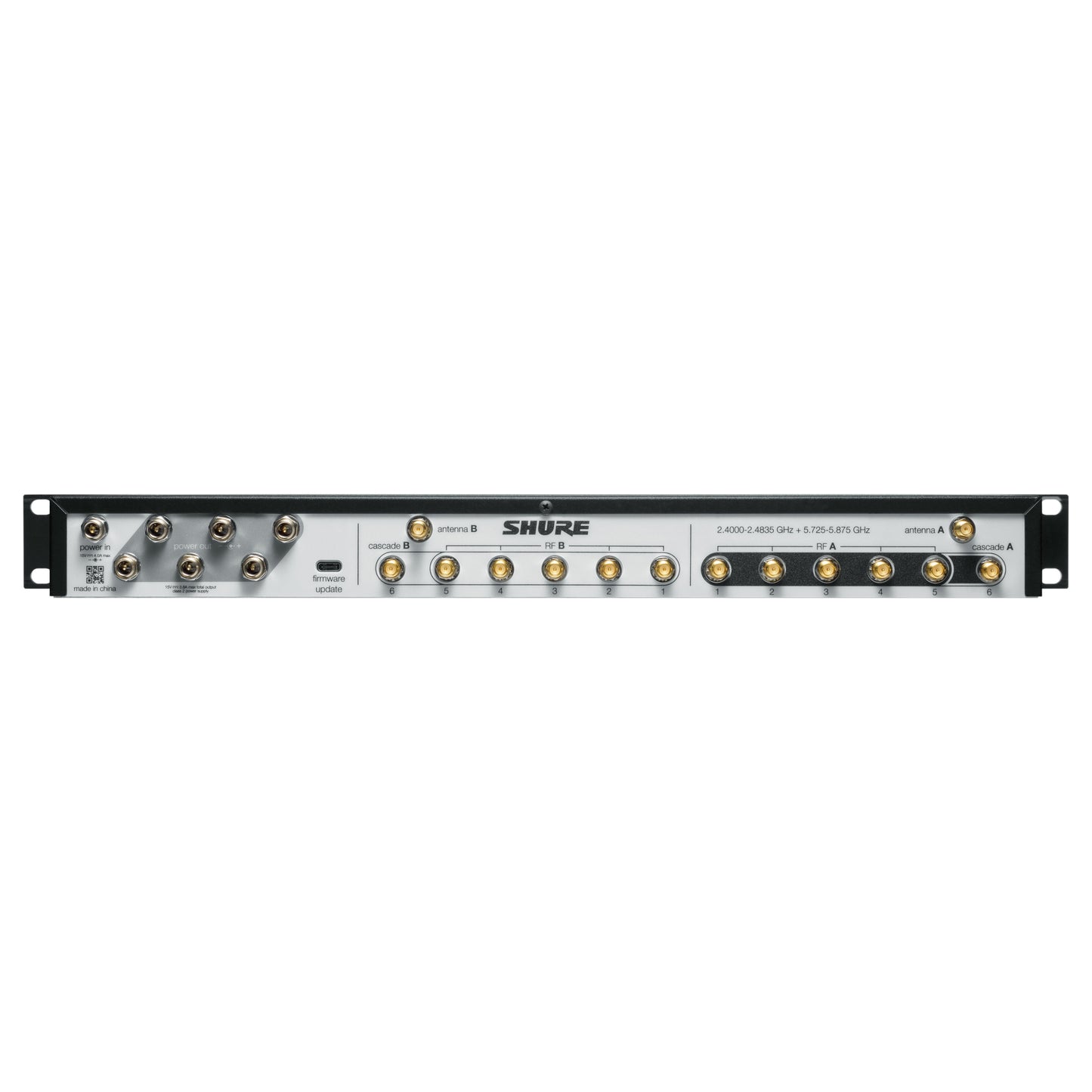

Shure GLXD+FMZ3/LC Dual Band Frequency Manager
Shure GLXD+FMZ3/LC Dual Band Frequency Manager
SoundPro Item: 137184 | Part Number: GLXD+FMZ3/LC
Usually ships in 5-7 business days
- Dual band wireless technology
- Operates in both 2.4 and 5.8GHz
The GLXD+FMZ3/LC Dual Band Frequency Manager from Shure features dual band wireless technology and operates in both 2.4 and 5.8GHz.
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance.
With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.
Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.
- Power Requirements15 VDC
- DC Output 15 VDC (×6)
- Output Current Combined total from all DC outputs 3.8 A, maximum
- Operating Temperature Range −18°C to 63°C (0°F to 145°F)
- Dimensions (H×W×D) 1.8×19×7.6” (45×483×192mm)
- Net Weight 1.63 kg (3.6 lbs)
- RF INPUT
- Connector Type: Reverse SMA
- RF Frequency Range: 2400 to 5850MHz
- Receiver Port Isolation: 35 dB, typical
- Impedance: 50Ω
- Maximum Antenna Input Power: −10 dBm
- Maximum Receiver Port Input Power: +15 dBm
- RF OUTPUT
- Connector Type: Reverse SMA
- RF Frequency Range: 2400 to 5850MHz
- Output Intercept Point (OIP3): 48 dBm, typical
- Impedance: 50Ω
- Reverse Isolation Output to Input: 35 dB, typical
- Gain Input to any output port: −3 to 0 dB
