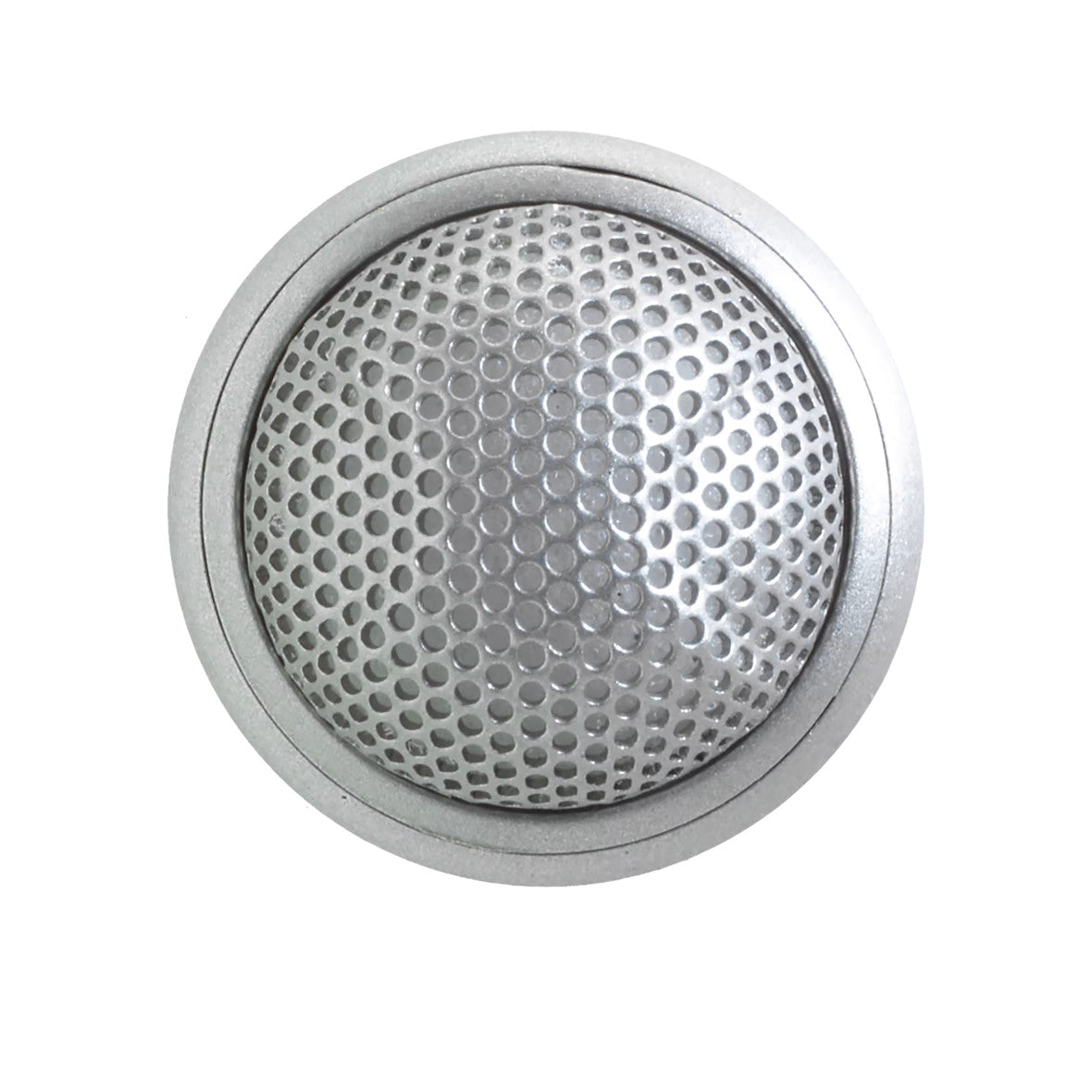

The Shure MX395/C Microflex Low Profile Boundary table mic is perfect for meeting rooms and delivers exceptional sound pickup while barely being noticed.
The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Choose from a selection of colors and pickup patterns for customized table installations.
Shure MX395/C Features
- Only 1.25 inch (3.8 cm) in diameter
- Wide dynamic range and smooth frequency response
- Available in black, white and aluminum
- Bi-color status indicator available with -LED models
- Logic input for remote LED control
- CommShield® Technology
- MX395/C Microflex Boundary Microphone1
- Transducer TypeCondenser
- Polar PatternCardioid
- Frequency Response50 Hz - 17 kHz
- Rated Output Impedance150 ohms (170 ohms actual)
- Sensitivity-35 dBV/Pa (18 mV)
- Output ConfigurationActive Balanced
- Maximum SPL (1 kHz at 1% THD, 1 kΩ load)121 dB
- Equivalent Output Noise (A-weighted)28 dB SPL
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)66 dB
- Dynamic Range (1 kΩ load at 1 kHz)93 dB
- Preamplifier Output Clipping Level-8 dBV (0.4 V) (1% THD)
- Weight
- Net: 0.3 lb (0.136 kg) Packaged: 0.825 lbs (0.374 kg)
- Logic Connections
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- Power Requirements
- MX395: 11–52 Vdc phantom, 2.0 mA
- MX395-LED: 48–52 Vdc phantom, 8.0 mA
