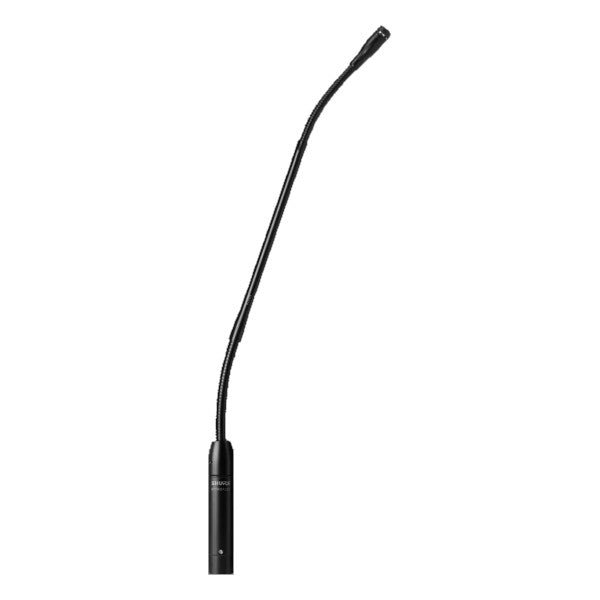

Shure MX412 Microflex 12-Inch Gooseneck Microphone (Preamp) | Capsule: Cardioid
Shure MX412 Microflex 12-Inch Gooseneck Microphone (Preamp) | Capsule: Cardioid
SoundPro Item: 23563 | Part Number: MX412S/C
Usually ships in 5-7 business days
- Gooseneck length: 12" (30.5cm)
- Interchangeable cartridges provide the right polar pattern for every application
- Locking flange mount for permanently securing microphone to surfaces
- Snap-fit foam windscreen
- Shock mount provides over 20 dB isolation from surface vibration noise
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Balanced, transformerless output for increased immunity to noise over long cable runs
- New RF filtering
The right speech doesn’t just inform. It can excite and even transform those who hear it. So, we designed the MX412 to treat spoken audio with the detail and respect it deserves. Because clarity commands attention.
Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response and accurate sound reproduction for a broad variety of applications, such as houses of worship, courtrooms and conference centers. Plus, the condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound.
- Frequency Response50 to 17,000 Hz
- Output Impedance (at 1,000 Hz) Rated at 150 Ω (180 Ω actual)
- Open Circuit Sensitivity (At 1 kHz, ref. 1 V per Pascal*)
- Cardioid: –33.5 dBV (21.1 mV)
- Supercardioid: –32.5 dBV (23.7 mV)
- Omnidirectional: –28.0 dBV (39.8 mV)
- * 1 Pascal=94 dB SPL
- Maximum SPL (1kHz at 1% THD, 1 kΩ load)
- Cardioid: 123.0 dB
- Supercardioid: 122.0 dB
- Omnidirectional: 117.5 dB
- Equivalent Output Noise (A-weighted)
- Cardioid: 29.0 dB SPL
- Supercardioid: 28.0 dB SPL
- Omnidirectional: 70.5 dB SPL
- Signal to Noise Ratio (referenced at 94 dB SPL)
- Cardioid: 65.0 dB
- Supercardioid: 66.0 dB
- Omnidirectional: 70.5 dB
- Dynamic Range with 1 kΩ load94.0 dB
- Common Mode Rejection45.0 dB minimum
- Mute Switch Attenuation50.0 dB minimum
- Preamplifier Output Clipping Level (1% THD) –6.0 dBV (0.5 V)
- PolarityPositive sound pressure on diaphram produces positive voltage on pin 2 relative to pin 3 of XLR output connector.
- Power Requirements11 to 52 Vdc phantom, 2.0 mA
- Environmental Requirements
- Operating Temperature Range: –18° to 57° C (0° to 135° F)
- Relative Humidity: 0 to 95%
- Weight0.81 kg (1.8 lbs) net, 1.63 kg (3.62 lbs) packaged
- Cable Type
- The attached custom cable contains a shielded audio pair and three unshielded conductors for logic control.
- Overall diameter=0.6 mm (0.165 in.)
- CertificationEligible to bear CE Marking. Conforms to European EMC Directive 89/336/EEC. Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.
