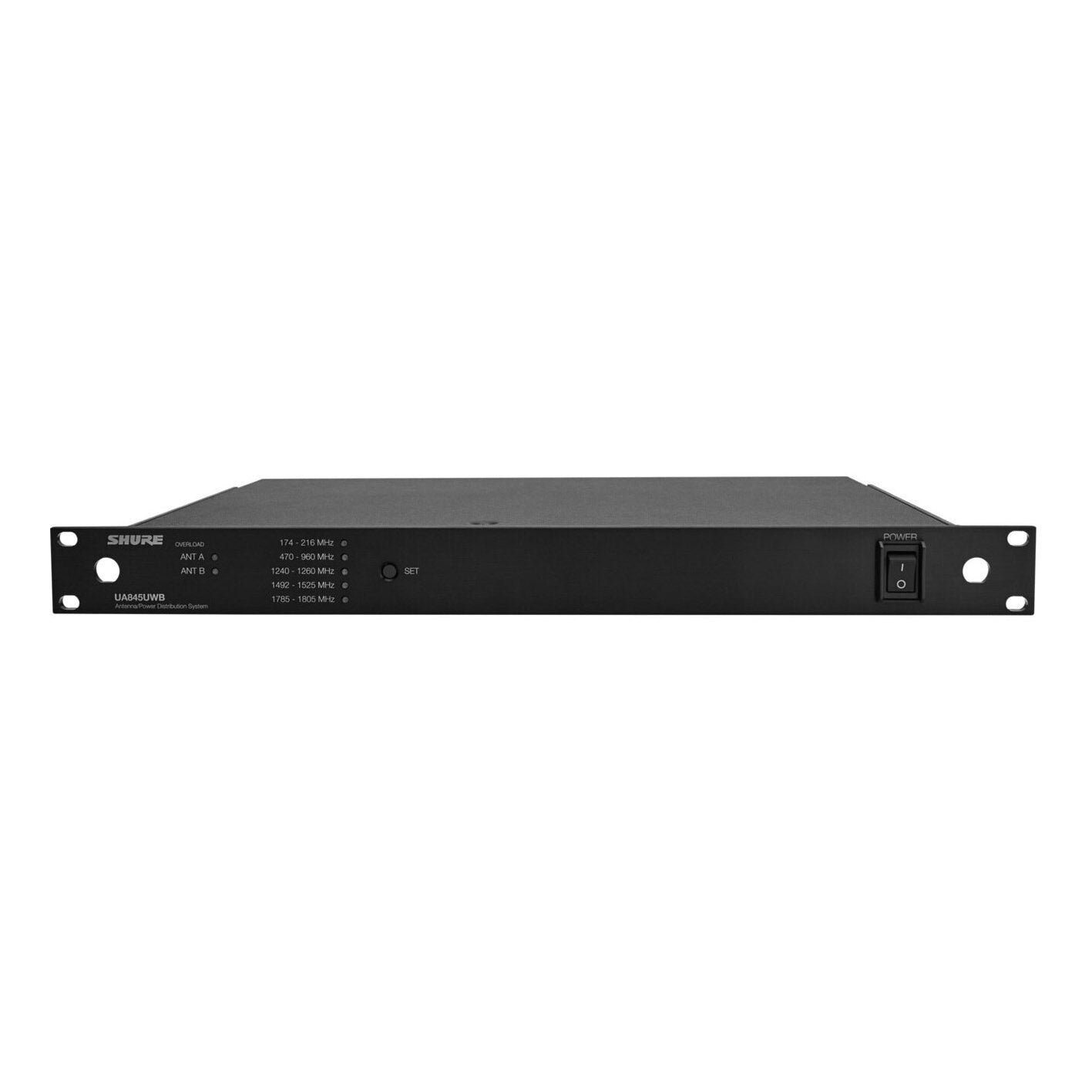

Shure UA845UWB Antenna Distribution System

Shure UA845UWB Antenna Distribution System

SoundPro Item: 81435 | Part Number: UA845UWB

$1,158.00
$1,621.00 $1,158.00
Your Price Sold out
MSRP: $1,621.00 | MAP: $1,158.00

In stock and ready to ship

  • 5 selectable frequency ranges
  • RF power LED indicators
  • Use 2 antennas for up to 4 wireless receivers
  • Compatible with Shure wireless systems operating in the same frequency range
  • Connect an additional unit or a fifth wireless receiver, supported by the two 50 ohm BNC-antenna cascade ports
  • Low noise and intermodulation distortion
  • Insertion loss compensation
  • Front-mounted antennas
Log in or register for YOUR best price

The Shure Model UA845UWB Antenna Distribution System allows up to four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

View full details
  • Selectable frequency ranges
    • Band 1: 174 to 216MHz
    • Band 2: 470 to 960MHz
    • Band 3: 1240 to 1260MHz
    • Band 4: 1492 to 1525MHz
    • Band 5: 1785 to 1805MHz
  • Distributed output level (gain)
    • Receiver antenna input, output ports 1 to 4: -2dB to +2dB
    • Receiver antenna input, cascade output: -1dB to +1dB
  • Output connector isolation>25dB, typical
  • Third-order overload intercept point (OIP3)24dBm, typical
  • Input-output AC line voltage, switched100 to 240V AC, 50/60Hz
  • DC output15V DC, 4 connectors
  • Output current2.5A maximum (combined total from all DC outputs)
  • Impedance50Ω
  • Connector typeBNC
  • Power consumption V AC14.1 W per unit
  • Operating temperature0°F to 145°F (-18°C to 63°C)
  • Dimensions (HxWxD)1.75" x 19" x 11.6"
  • Weight7.3 pounds (3.32 kg)
