• Soundcraft Mini Stagebox 32R
1 1

Soundcraft Mini Stagebox 32R

Soundcraft Mini Stagebox 32R

SoundPro Item: 25500 | Part Number: MSB-32R

$3,180.00
$3,820.00 $3,180.00
Your Price Sold out
MSRP: $3,820.00 | MAP: $3,180.00

Usually ships in 5-7 business days

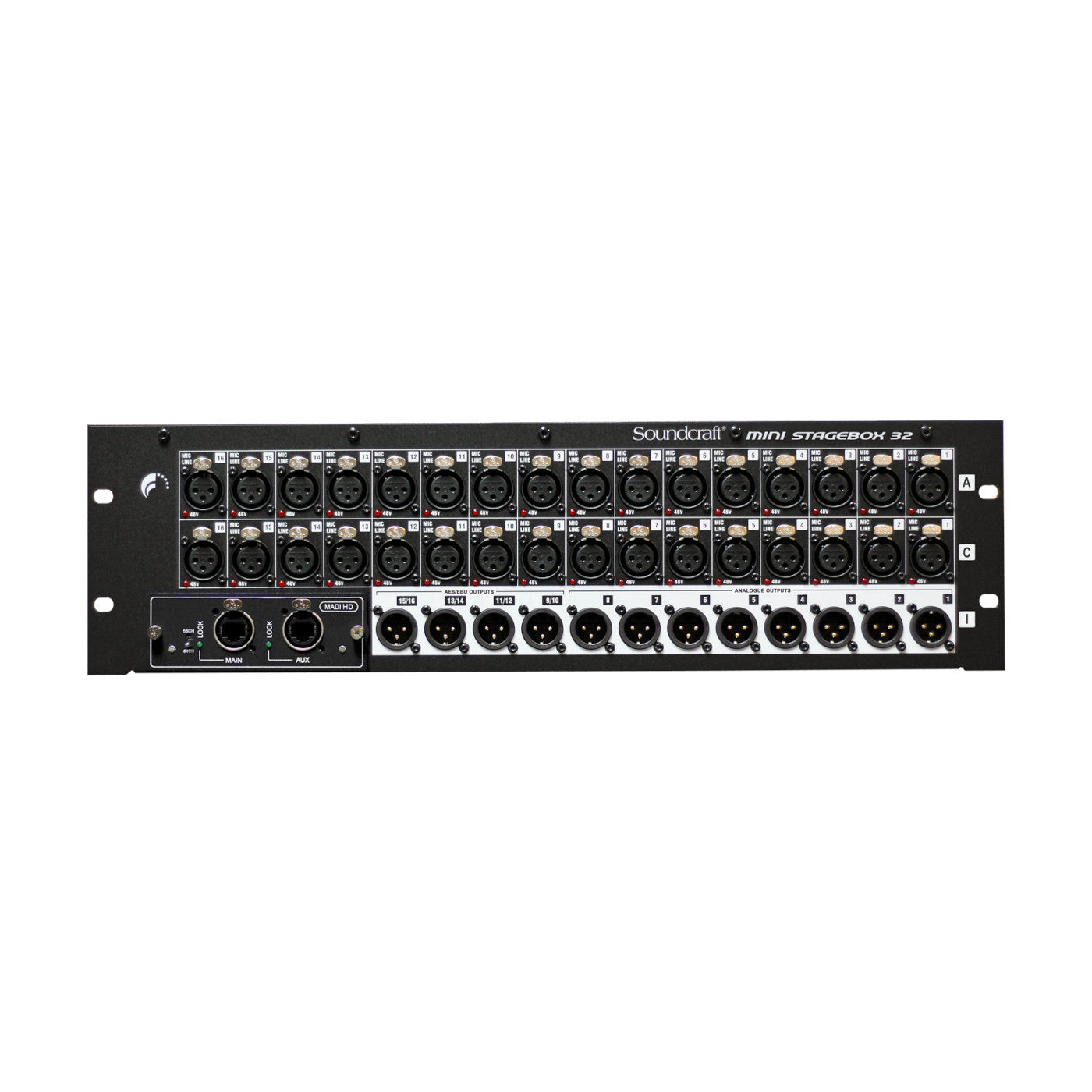

  • The Mini Stagebox 32R (3U)
  • 32 analog inputs
  • 8 analog line outputs
  • 4 pairs of AES outputs
  • Connects to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot
Log in or register for YOUR best price

Soundcraft’s Mini Stagebox 32R (3U) provides 32 analog inputs and 8 analog line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs.

View full details
  • Frequency ResponseMic / Line Input to any Output: +0/-1dB, 20Hz – 20kHz
  • T.H.D.Mic Sensitivity -30dBu: < 0.01% @ 1kHz
  • Noise
    • Residual noise: -85dBu
    • Mic Input E.I.N. (maximum gain): -125dBu (150Ω source)
    • Mix noise, masters at unity: < -86dBu
    • 1 input to mix at unity gain: -84dBu
    • CMRR mic @1KHz (max gain): -86dBu
    • Crosstalk (@ 1kHz)
    • Mic – Mic: <-80dB @ 1kHz
  • Input Gain
    • Mic Gain: -5dB – 58dB integrated pad design 1dB steps
    • Max. input level: +24dBu
    • Max. output level: +22dBu
    • Sample rate: 48kHz
    • Convertor resolution: 24 bit
    • Latency: 1.5ms
    • Internal clock accuracy: +/- 25ppm
    • Mains power consumption: 33W
    • Mains voltage operating range: 90 — 264 VAC, 47 — 63Hz
    • Operating temperature range: -10oC — +50oC
    • Relative humidity: 0 — 90%
    • Storage temperature range: -10oC — +50oC
