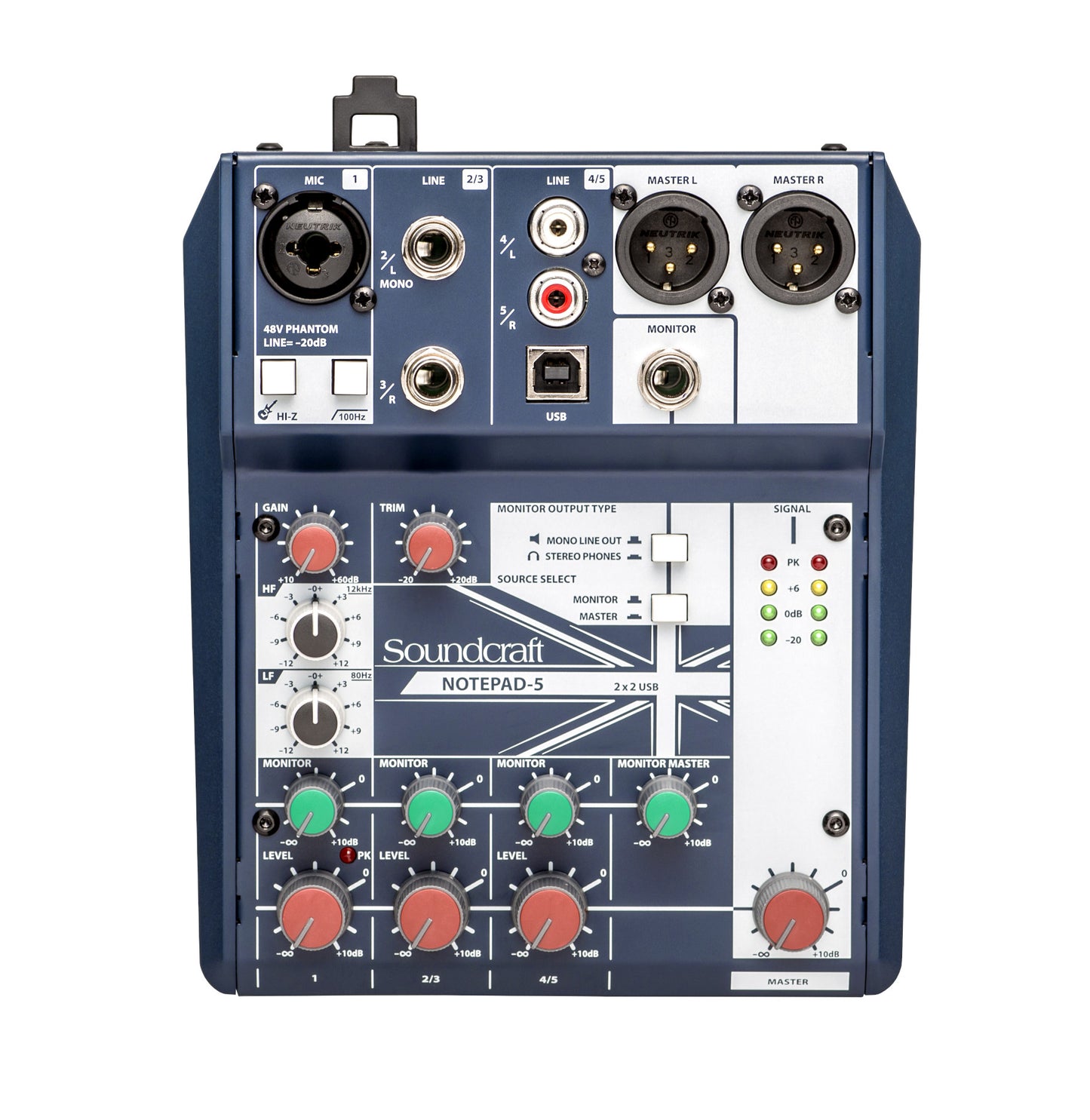

Soundcraft Notepad-5 Small Format Analog Mixer

Soundcraft Notepad-5 Small Format Analog Mixer

SoundPro Item: 35683 | Part Number: 5085980US

$150.00
$150.00 $150.00
Your Price Sold out
MSRP: $150.00 | MAP: $150.00

Usually ships in 5-7 business days

  • Professional microphone preamps
  • USB audio interface
  • Familiar channel strip layout
  • Cross platform compatible for use with Mac, Soundcraft driver for PC
  • Durable metal enclosure
  • Ideal for singer-songwriters, podcasters, audio and video workstation users, and audio professionals
Log in or register for YOUR best price

The Notepad-5 from Soundcraft is a small-format analog mixer ideal for scenarios where you need to mix your sound on the go.

View full details
  • Frequency Response (mic/line input to any output)20Hz to 20kHz, +/-1.5dB
  • Noise
    • Mic Input EIN (at max. gain with 150Ω source impedance): <-127dBu
    • Aux, Mix and Masters Set to 0dB, Faders Down: -98dBu
  • Crosstalk
    • Input signal 1kHz, +21.5dBu
    • Channel level at max, master level at 0dB
    • Adjacent channel level at minimum
    • Fader cut-off relative to +10dB mark: 88dB
    • CH level @ max, Master Level @ max ,Output +21.5dBu , and then Master Level @ Min
  • Mic Gain10dB to 58dB
  • Line Input Attenuation20dB
  • 3-Band EQ
    • HF 12kHz Shelf: -12dB to +12dB
    • MF 2kHz Bell: -12dB to +12dB
    • LF 80Hz Shelf: -12dB to +12dB
  • Max. Input Level
    • Mic Input: +11dBu
    • Line Input: +30dBu
    • Hi-Z Input: +17dBu
    • Stereo Input: +22dBu
  • Output Level
    • Mix Output: +22dBu max.
    • Headphones (150Ω): 165mW
  • Dynamic Range
    • Frequency Response, THD: +/-1.5dB, 20Hz – 20kHz, < 0.01% @ 1kHz
    • Output @ 21.5dBu, THD: <0.012% @ 1kHz
    • Output =14dBu, THD: <0.019% @ 1kHz
  • USB
    • Sample Rate: 44.1kHz, 48kHz
    • Frequency Response: 20Hz - 20kHz, +/-1.5dB
