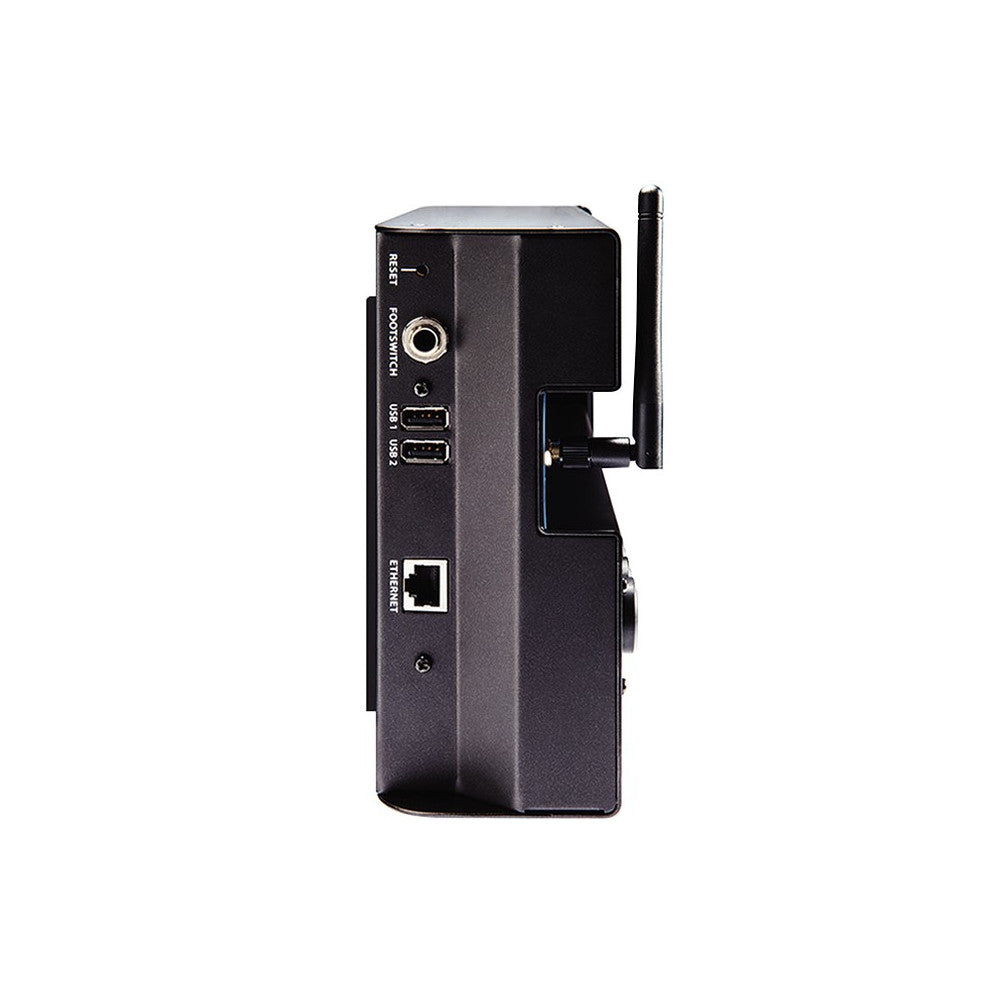

  • Soundcraft Ui-12 Remote-Controlled 12-Input Digital Mixer side
1 3

Soundcraft Ui12 Remote Controlled 12-Channel Digital Mixer

Soundcraft Ui12 Remote Controlled 12-Channel Digital Mixer

SoundPro Item: 25494 | Part Number: Ui12

$469.00
$470.00 $469.00
Your Price Sold out
MSRP: $470.00 | MAP: $469.00

Usually ships in 5-7 business days

  • Tablet/PC/Smartphone controlled digital mixer
  • Integrated Wi-Fi
  • Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
  • Use up to 10 control devices (tablets, phones, PCs) simultaneously
  • Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
  • Fully recallable and remote-controlled mic preamps
  • 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
  • 31-band Graphic EQ, Noise Gate and Compressor on all outputs
  • Real-Time Frequency Analyser (RTA) on inputs and outputs
  • 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
  • Subgroups, Mute Groups, View Groups, and more mixer controls
  • Show/Snapshot recall with channel safes and security lockout
  • 2-channel USB audio playback and recording
  • Password-protected Access limitation system
  • Sync ID (multiple browser windows staying in channel Sync)
Log in or register for YOUR best price

The Ui12 from Soundcraft is a 12-channel digital mixer characterized by its remote-control capability that provides expanded freedom for your sound mixing application.

The Ui12 also features four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with two balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats.

View full details
  • Frequency Response20Hz - 20kHz +/-0.25dB
  • THD-20dBFS @ 1kHz <0.006%
  • Noise
    • Residual Noise: -96dBu
    • Mic Input EIN 22Hz - 22kHz unweighted -109dB EIN
    • Mix Noise masters at unity <-90dBu
    • 1 Input to Mix at Unity gain <-86dBu
  • Crosstalk @1kHz
    • Channel ON Attenuation <120dB
    • Channel Fader Attenuation <120dB
    • Mic-Mic -103dB @1kHz, -93dB @10kHz
    • Line-Line -103dB @1kHz, -93dB @10kHz
  • Input GainMic/Line Gain -40dB to +50dB (0.1dB steps, Step accuracy depends on size of fader in GUI)
  • Gate
    • Threshold -inf to +6dB
    • Auto Attack
    • Auto Release
  • Compressor
    • Threshold -90dB +6dB
    • Ratio 1:1 - 50:1
    • Attack 1ms - 400ms
    • Release 10ms - 2000ms
    • Makeup Gain -24dB - +48dB
  • EQ Channel
    • 4 band parametriq EQ
    • Each band freq 20Hz to 22kHz
    • Q .05 - 15
    • Gain -20dB to +20dB
    • HPF 20Hz to 1kHz
  • De-esser
    • Threshold -90dB to 6dB
    • Ratio infinity to 1:1
    • Frequency 2kHz to 15kHz
  • EQ Outputs32 band GEQ, 20Hz - 20KHz +-15dB
  • Compressor Outputs
    • Threshold -90dB +6dB
    • Ratio 1:1 - 50:1
    • Attack 1ms - 400ms
    • Release 10ms - 2000ms
    • Makeup Gain -24dB - +48dB
  • dbx® AFS on all outputs12 parametric EQ's (6 fixed, 6 floating)
  • LatencyMic in - ADC -DSP -DAC - Line output 1.8ms
  • Input and Output Levels
    • Mic Input +20dBu max
    • Line Input +20dBu max
    • Mix Output +23dBu max
    • Headphone Outputs 500mW 1 output used (@120Ω) 380mW both outputs used
  • Input and Output Impedances
    • Mic Input 10kΩ
    • Line Input 10kΩ
    • Hi-Z Input 250kΩ
    • Outputs all at 100Ω
  • USB
    • Max current 500mA
    • Max current available to all ports: 900mA
  • Power
    • Consumption (Typical) <25W
    • AC Input Voltage Range 88-265VAC auto sensing
    • AC Frequency 47-63Hz
