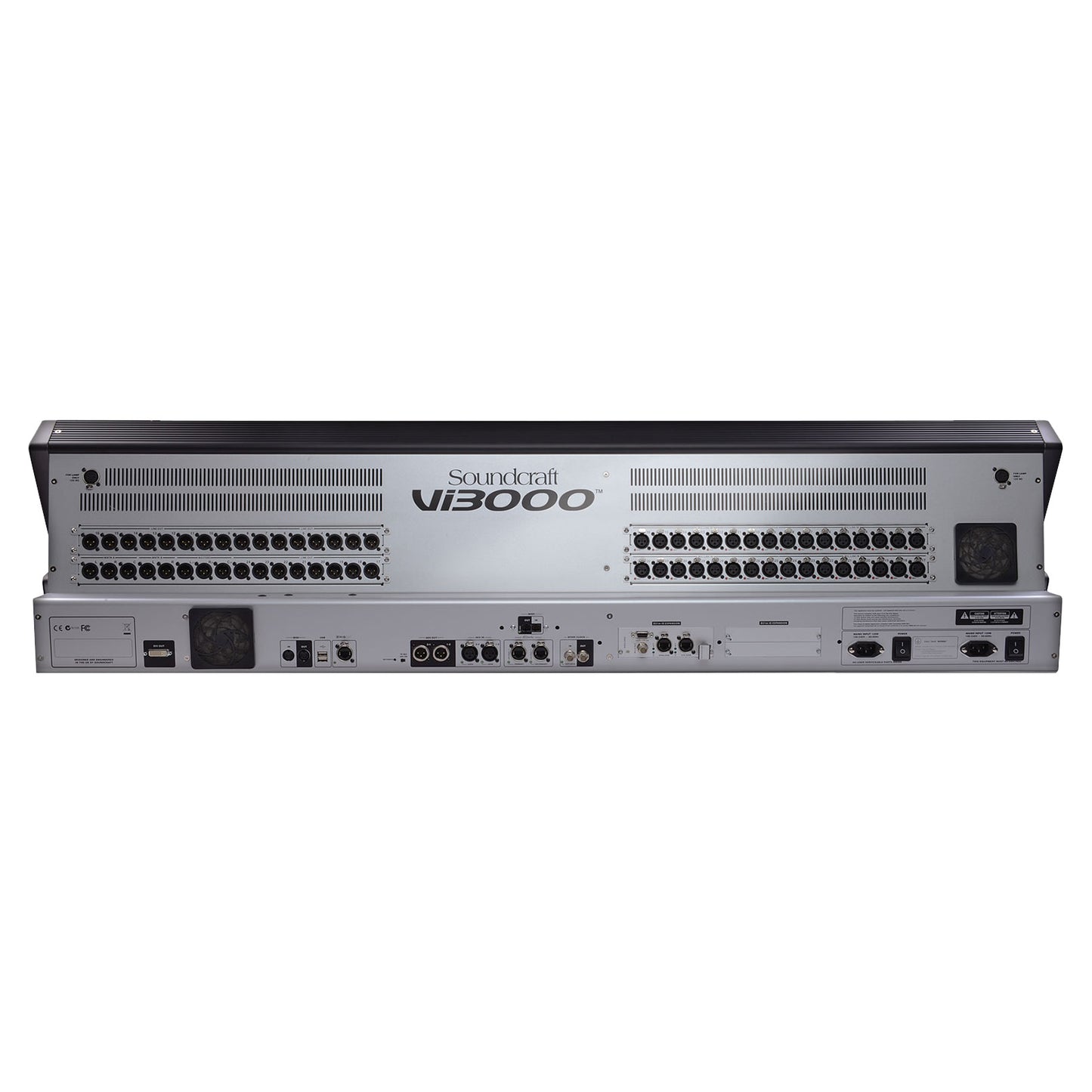

Soundcraft Vi3000 96-Channel Live Sound Digital Mixing Console
Soundcraft Vi3000 96-Channel Live Sound Digital Mixing Console
SoundPro Item: 26583 | Part Number: Vi3000
Usually ships in 5-7 business days
- 96-Channel Live Sound Digital Mixing Console
- Intended for live sound applications
- Virtual Vi offline set up
- VM2 radio mic status monitoring
- BSS DPR901ii Dynamic EQ
- Copy/Paste channel bus and FX settings
- Copy/Paste processing elements
- Settings Library
- Sophisticated Cue List Management
- Advanced events integration
- Automated microphone mixing
- Snapshot crossfades
- ViSi Remote iPad® app
- All busses to stereo
- 4 Aux send points
- Aux VCA mode
- Auto-increase of ambient mic levels in monitor mixes between songs
The Vi3000 from Soundcraft is a 96-channel digital mixing console specifically intended for live sound applications.
Boasting a modern aesthetic, upgraded technology, and packed with professional-grade features, this mixing console offers expanded functionality that allows it to be used by two operators simultaneously.
- Frequency Response - Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
- AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
- THD 22Hz-22kHz
- Stagebox Mic In (min gain) to Local Line Out <0.003% @ 1kHz
- Stagebox Mic In (max gain) to Local Line Out <0.020% @ 1kHz
- Local Line In to Line Out <0.003% @ 1kHz
- Mic Input E.I.N <-126dBu (150Ω source)
- Residual Noise -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
- CMRR 80dB @ 1kHz
- Sampling Frequency 48kHz
- Latency: Stagebox Mic Input to Local Line output < 2ms @48kHz
- AES/EBU Input Sample Rate 32-108kHz (with SRC enabled)
- DSP Resolution 40-bit floating point
- Internal Clock Accuracy < +/- 50ppm
- Internal Clock Jitter< +/- 2ns
- External Sync BNC Wordclock
- Input & Output Levels - Mic Inputs +28dBu max
- Input & Output Levels - Line Inputs +22dBu max
- Input & Output Levels - Line Outputs +22dBu max
- Input & Output Levels - Nominal Operating Level +4dBu (-18dBFS)
- Input & Output Impedances - Mic Inputs 2k7Ω
- Input & Output Impedances - All other analogue Inputs >10kΩ
- Input & Output Impedances - Line Outputs <75Ω
- Input & Output Impedances - AES/EBU Outputs 110Ω
- Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
- Oscillator - Stagebox HP Filter 80Hz fixed, 12dB per octave
- Oscillator - Channel HP Filter 20Hz-600Hz, 18dB per octave
- Oscillator - Channel LP Filter 1kHz-20kHz, 18dB per octave
- EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
- EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
- EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
- EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving
- Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
- Mains Voltage Operating Range 90-264V, 47-63Hz, auto-ranging
- Mains Power Consumption 300W
- Temperature/Humidity Range - Operating Temperature Range 0°C to 45°C (32°F to 113°F)
- Temperature/Humidity Range - Relative Humidity 0% - 90%, non-condensing Ta=40°C (104°F)
- Temperature/Humidity Range - Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
- Height (Console Only) 351mm (13.8")
- Width (Console Only) 1446mm (56.9")
- Depth (Console Only) 803mm (31.6")
- Weight (Console Only) 54kg (119lb)
- Height (with standard shipping carton) 595mm (23.5")
- Width (with standard shipping carton) 1580mm(62.2")
- Depth (with standard shipping carton) 950mm(37.4")
- Weight (with standard shipping carton) 96kg (212lb)
- Height (with factory flightcase) 1117mm(44.0")
- Width (with factory flightcase) 1530mm(60.3")
- Depth (with factory flightcase) 530mm(20.1")
- Weight (with factory flightcase)141kg(311lb)
