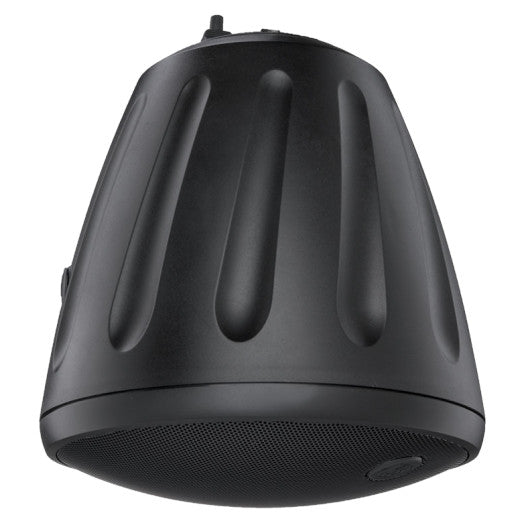

SoundTube RS1001i-II-T 10-Inch Pendant Subwoofer | Color: Black
SoundTube RS1001i-II-T 10-Inch Pendant Subwoofer | Color: Black
SoundPro Item: 46704 | Part Number: RS1001I-II-T-BK
Usually ships in 5-7 business days
- One 10 inch (254 mm) polypropylene cone with a butyl rubber surround attached to a reinforced baffle.
- Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response.
- High-output (105 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize listener’s low-frequency experience.
- 150-watt, low insertion-loss transformer with an easy-access, five-position tap switch for 25/70.7/100-volt and transformer bypass positions.
- Weatherized components including powder-coated steel grille, hanging hardware and a durable ABS enclosure for indoor/outdoor applications.
- Includes UL listed hanging hardware with high-quality cables and integrated SpeedClamp™ self-locking wire clamp for fast,
- easy and secure installation.
- UL 1480 (UEAY) and CE-approved. Hanging hardware is UL 2239-approved
- High-quality black or white painted finish
The RS1001i is a 10-inch open-ceiling or surface mount subwoofer tuned for maximum output and performance across the operating bandwidth. By incorporating a 10-inch polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure, this speaker delivers maximum low frequency response (38 Hz 450 Hz, - 10 dB, independently verified) and high SPL (105 dB). Mounting hardware includes high-quality UL listed cables and integrated SpeedClamp™ self-locking wire clamp for fast, easy and secure installation. For easy ordering, stocking and installation, the RS1001i-II-T includes a five-position tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position.
- Color Black
- UPC 752830445086
- Manufacturer SoundTube
- Manufacturer's Category RSi Original Pendant
- Height 17.23 in / 437.6 mm
- Width/Diameter 14.82 in / 376.4 mm
- Shipping Weight 30.2 lbs / 13.7 kg
- Carton Height 19.5 in / 495.3 mm
- Carton Length 18 in / 457.2 mm
- Carton Width 18 in / 457.2 mm
- Certifications CE, RoHS, UL1480A, UL2239
- Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
- Enclosure Volume 1288.3 cu in / 21111.45 cu cm
- Source Inputs4 Pin 5.08mm Euroblock
- Crossover Frequency100.0 Hz
- Frequency Response (± 10 dB)38 Hz - 450 Hz
- Frequency Response (± 3 dB)53 Hz - 175 Hz
- Grille PropertiesPowder-Coated, Steel
- Low Frequency Voice Coil1.38 in / 35 mm
- Low Pass Crossover6dB per octave 1st order
- Max. Continuous Power RMS150W
- Max. Program Power300W
- Minimum Impedance (Ω Ohms)5.1Ω
- Nominal Impedance (Ω Ohms)4Ω
- Subwoofer Driver10" Polypropylene Cone w/ Butyl Rubber Surround
- Sensitivity dB @ 1W/1M83 dB
- Sensitivity dB @ 2.83V/1M86 dB
- Tap SelectorRotary Switch
- Transformer Options25 / 70.7 / 100 V, 8 Ohm direct
- Transformer Taps Max. Setting (25V/70.7V/100V)19W/150W/150W
