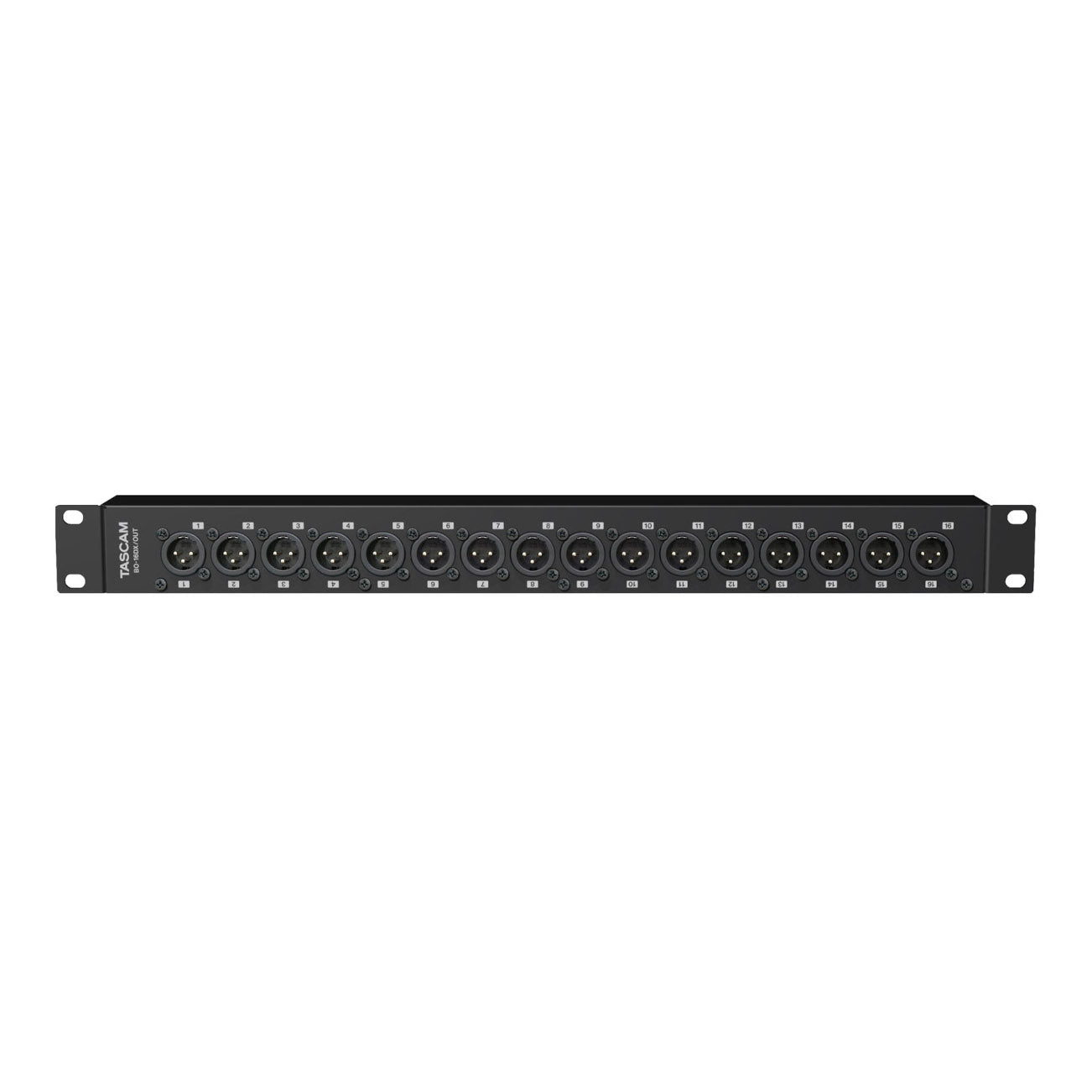

The TASCAM BO-16DX/OUT is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR outputs are internally bridged to dual D-Sub input connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.
TASCAM BO-16DX/OUT Features
- 16 channels from 25-pin D-sub connectors can be transmitted to XLR (male) connectors
- Space is provided above the connectors for placing labels, including signal routing
- Rackmount ears can be attached forward or backward allowing you to install the unit freely Rackmount ears can also be removed
- Compact 1U size with a depth of 45 mm
- Panel indications support upside-down installation
- BO-16DX/OUT 16 Channel D-Sub XLRM Breakout Box1
- Rackmount screw kit1
- Owner's Manual including warranty1
- Front
- XLR-3-32 (1:GND, 2:HOT, 3:COLD) × 16
- Rear
- Connectors: D-sub 25pin female × 2
- Attachment Screws: No.4-40 UNC(inch-type) × 4
- Dimensions (WxHxD)482.6×44.1×51.5mm
- Weight0.9kg
