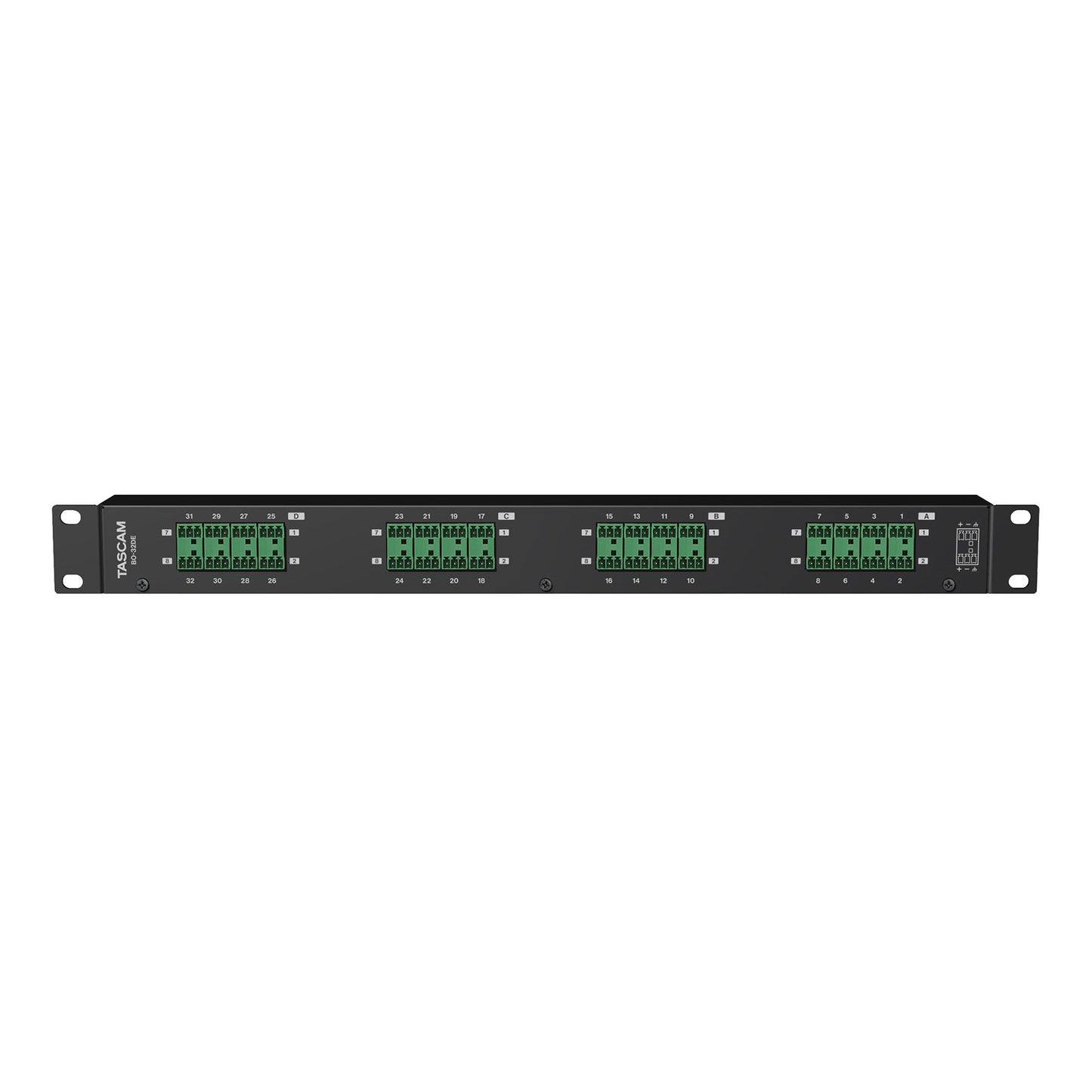

The TASCAM BO-32DE is a rugged, rackmounted audio adaptor designed for professional installation. 32 front-panel Euroblock connectors are internally bridged to four D-Sub output connectors on the rear panel, providing fast and easy I/O and interconnectivity between CD players, digital audio players, mic preamps, zone mixers, distribution amplifiers, audio over IP convertors and more.
TASCAM BO-32DE Features
- 32-channel balanced breakout box for ML-16D/ML-32D or other products with compatible D-Sub connectors
- 16 balanced Euroblock connectors (two audio channels each) on the front panel
- 32 Euroblock plugs with strain relief tail and wire bands included
- Four 25-pin D-Sub connectors (8 audio channels each) on rear panel with standard Tascam pin assignment (AES59-2012)
- Each group of eight channels can be used as balanced audio inputs or outputs
- Rugged metal chassis
- 19-inch rackmount (1U)
- Removable rackmount ears can be attached to either front or rear
- BO-32DE 32 channel D-SUB Euro block breakout box1
- Euroblock plug have tab32
- Cable banc kit1
- Rackmount screw kit1
- Front ConnectorsEuroblock (balanced) 3.81mm pitch x 16 (32ch)
- Rear
- Connectors: D-sub 25pin female x 4
- Attachment Screws: No.4-40 UNC(inch-type) × 8
- Dimensions (WxHxD)19" x 1.74" x 2"
- Weight1.98 pounds
What’s in the Box?
