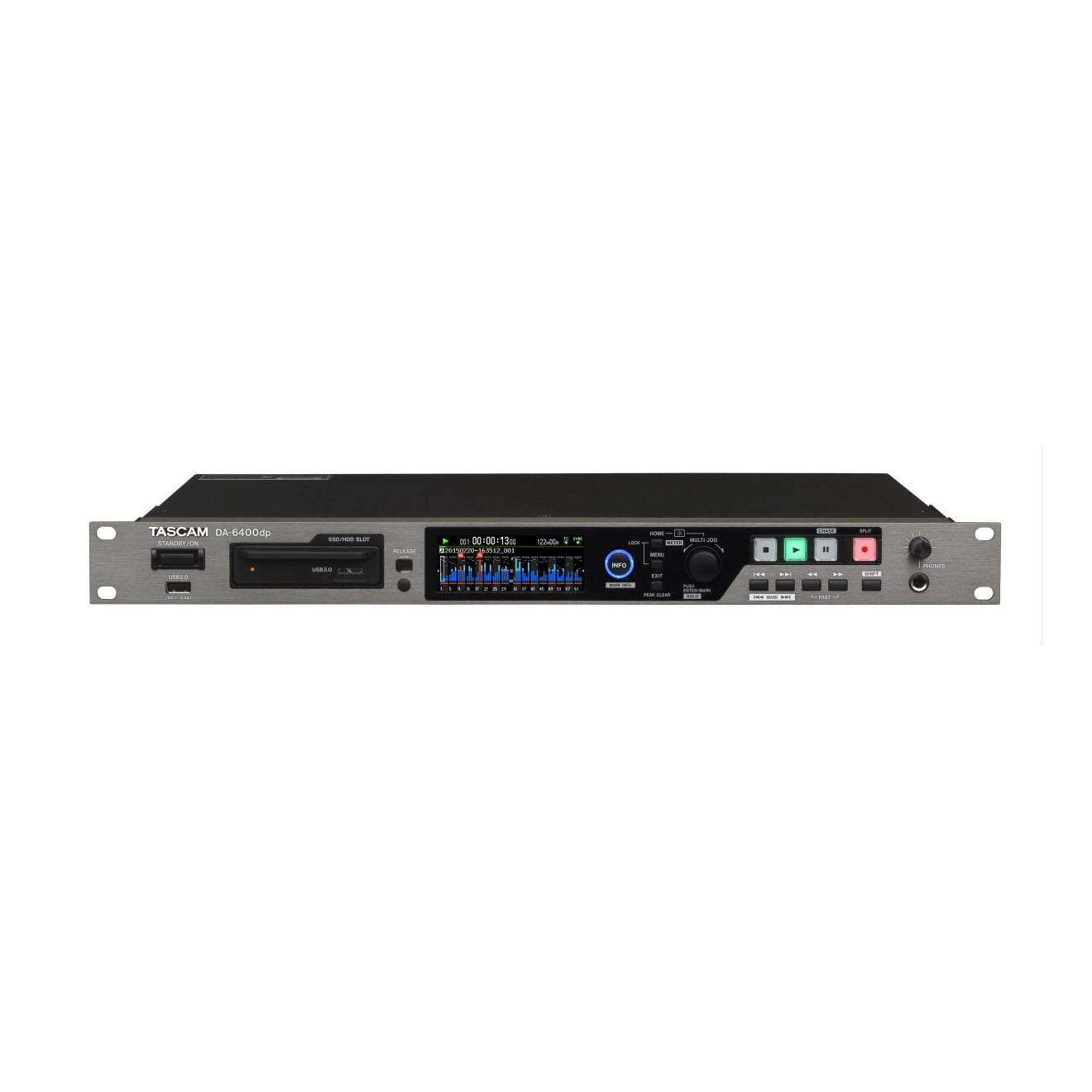

• Tascam DA-6400 64-Channel Digital Multitrack Recorder front
1 1

TASCAM DA-6400 64-Channel Digital Multitrack Recorder

TASCAM DA-6400 64-Channel Digital Multitrack Recorder

SoundPro Item: 35513 | Part Number: DA-6400

$3,999.00
$4,799.00 $3,999.00
Your Price Sold out
MSRP: $4,799.00 | MAP: $3,999.00

Usually ships in 5-7 business days

  • Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
  • The perfect backup recording system for synchronized capture with Pro Tools systems
  • 2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation. (Note: HDD support currently under development)
  • Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units
  • Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
  • AK-CC25 with TASCAM 240GB SSD drive included with unit
  • Hi-visibility Color LCD (320×120 pixels)
  • BWF support for storing time information with files
  • SMPTE LTC timecode input and output for location synchronization
  • Firmware upload over USB port
  • Parallel remote control input
  • RS-422 serial remote control (9-pin serial protocol compliant)
  • Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
  • SNTP client functions support for automatic adjustment of the internal clock over a network
  • Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
  • EIA 1U rackmount size
  • IEC 3-pin inlet
  • iPad and computer applications for remote control
  • AC power redundancy built in (DA-6400dp only)
  • Two I/O slots for optional audio interface cards:
    • IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
    • IF-MA64/BN 64-channel MADI coaxial interface card
    • IF-DA64 64-channel Dante(ST 2110) interface card
    • IF-AE16 16-channel AES/EBU interface card
Log in or register for YOUR best price

TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.

Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections.

I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections. This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.

No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM’s DA-6400 solid-state 64-track recorder.

View full details
  • Recording mediaSSD (Note: HDD support also planned in addition to the SSD.)
  • File systemFAT32
  • File formatsBWF (.wav)
  • Number of channels64 (1×Fs), 32 (2×Fs)
  • Sampling frequencies44.1k / 48k / 88.2k / 96k Hz
  • Quantization bit rate16 / 24-bit
  • Clock referenceINTERNAL, WORD IN, VIDEO IN
  • Timecode frame23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF
  • TIME CODE IN
    • Connector: BNC
    • Signal voltage amplitude: 0.5V to 5Vp-p
    • Input impedance: 10kΩ
    • Format: SMPTE 12M-1999 compliant
  • TIME CODE OUT
    • Connector: BNC
    • Signal voltage amplitude: 2Vp-p
    • Output impedance: 600Ω
    • Format: SMPTE 12M-1999 compliant
  • WORD/VIDEO IN
    • Connector: BNC
    • Input voltage amplitude (WORD): 0.5V to 5Vp-p TTL equivalent
    • Signal voltage amplitude (VIDEO): 1Vp-p
    • Input impedance: 75Ω ±10%
    • Input frequency (WORD): 48kHz
    • Input signal (VIDEO): 23.976 / 24 / 25 / 29.97 / 30 Frame (NTSC/PAL Black burst, HDTV Tri-Level)
  • WORD/VIDEO THRU/OUT
    • Connector: BNC
    • Output voltage amplitude: 5V TTL equivalent
    • Output frequency (WORD): 48kHz
  • ETHERNET
    • Connector: RJ-45
    • Protocol: 100BASE-TX, 1000BASE-T
  • RS-422
    • Connector: D-sub 9 pin (female, inch-standard)
  • PARALLEL
    • Connector: D-sub 15 pin (female, inch-standard)
  • USB
    • Connector: USB2.0 A-type
    • Protocol: USB 2.0 HIGH SPEED (480Mbps)
  • PHONES
    • Connector: 1/4" (6.3mm) Stereo Phone jack × 1
    • Maximum output level: 45mW + 45mW or higher
  • PowerAC 100 - 240V, 50/60Hz
  • Power Consumption21W (At the time of IF-MA64/EX use)
  • Dimensions (WxHxD)19×1.766×12" (482.6×44.7×304.8 mm)
  • Weight8.6 lbs (3.9kg)
  • Operating Temperature32°F to 104°F (0°C to 40°C)
