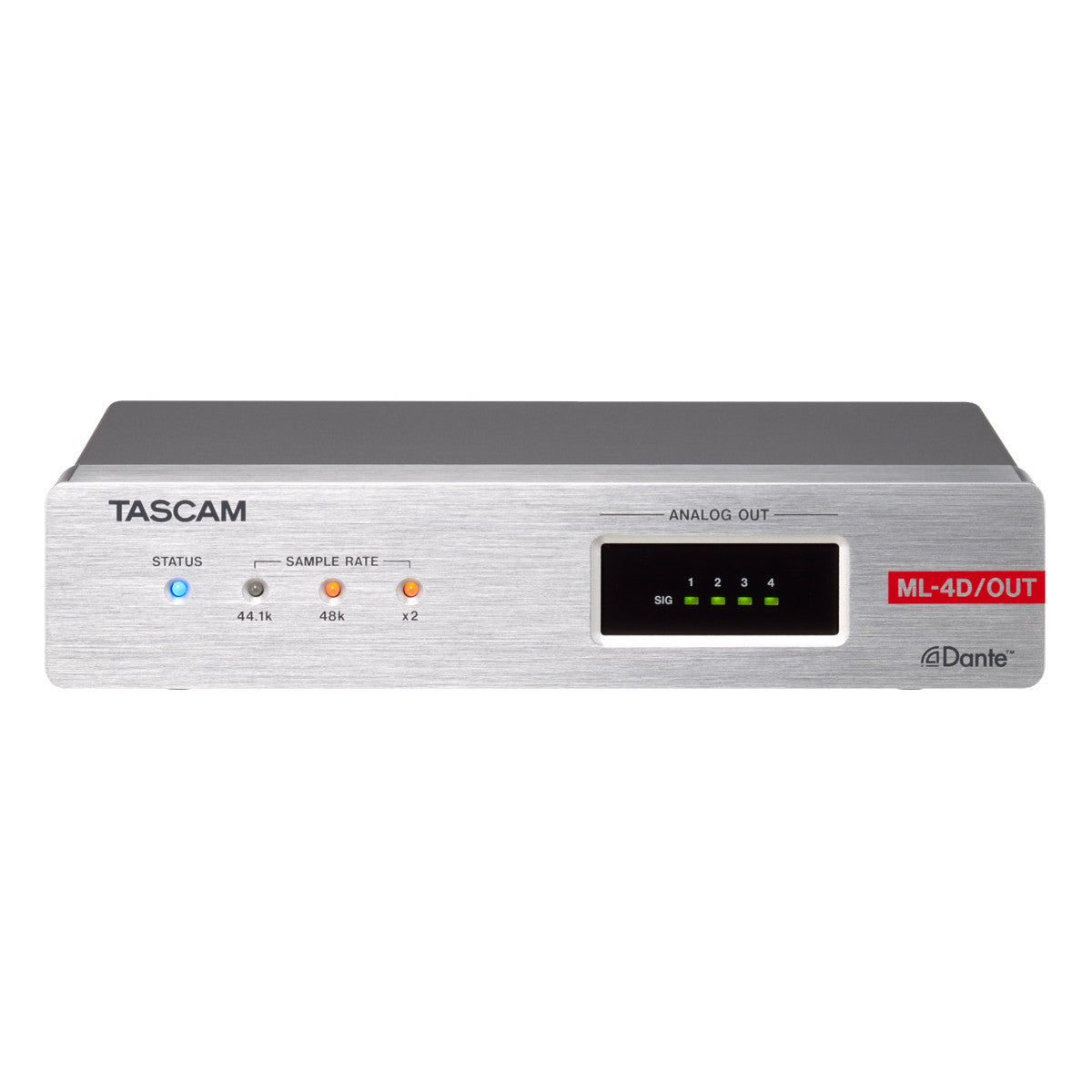

TASCAM ML-4D/OUT-E 4-Channel Output Dante Converter
TASCAM ML-4D/OUT-E 4-Channel Output Dante Converter
SoundPro Item: 38916 | Part Number: ML-4D/OUT-E
Usually ships in 5-7 business days
- ML-4D/OUT-E has a Euroblock connector
- 4 AES/EBU input/output
- 4 AES/EBU inputs with sampling rate converter
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
- Up to 24bit/96kHz
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 Mode
- Flexible scene preset function allows to work in different area situations (Up to 50 presets)
- Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
- Remote control via Dante
- Half-rack mountable size
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor digital input/output signals
- Configurable reference level (via remote control only)
- Surface rack mountable angles for installation under desks included
- 2 types of user control software available for Windows/Mac/iOS/Android devices:
- For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
- For end-users: simple app design for only the necessary functions such as area volume settings, etc.
The ML-4D/OUT-E is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-E supports up to 96kHz/24bit and uses Euroblock connectors for analog line output.
The ML-4D/OUT-E not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.
More about Tascam's Dante Compact Processor Series
The Dante Compact Processor Series has a line-up of models with different input/output specifications:
- MM-4D/IN, 4-channel mic/line input
- ML-4D/OUT, 4-channel line output
- MM-2D, 2-channel mic/line input/output
- AE-4D, AES/EBU 4-channel input/output
For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.
The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.
The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.
- Number of channels and formats4 channels, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24 bit
- Audio outputs
- Analog outputs (ANALOG OUT: Balanced Euroblock connectors, 3.81 mm pitch
- Nominal output level
- +4 dBu (Ref(D) ≠ –9 dBFS)
- +6 dBu (Ref(D) = −9 dBFS)
- Maximum output level (selectable)
- +15 dBu (Ref(D): –9 dBFS)
- +18 dBu (Ref(D): –14 dBFS)
- +20 dBu (Ref(D): –16 dBFS)
- +22 dBu (Ref(D): –18 dBFS)
- +24 dBu (Ref(D): –20 dBFS)
- Output impedance: ≤200 Ω
- Note: 0 dBu equals 0.775 Vrms
- Other Inputs and Outputs
- Dante/Ethernet connectors (DATA/DATA+PoE): RJ-45
- Transmission protocol: Dante
- Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
- Cable requirements: Cat 5e or better STP cables
- Output level control (10V/CONTROL/GND, ML-4D/OUT-E only)
- Balanced Euroblock connectors, 3.81 mm pitch
- Connect a variable resistor here (10 kΩ recommended)
- Audio Performance
- Dante Input to Line Output
- Frequency response
- 20 Hz – 20 kHz, ±0.5 % (sampling frequency 44,1/48 kHz, JEITA)
- 20 Hz – 40 kHz, ±0.5 % (sampling frequency 88,2/96 kHz, JEITA)
- Distortion (THD+N): ≤0.005 % (−1 dBFS input, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
- Frequency response
- S/N ratio: 108 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)
- Crosstalk: ≥100 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)
- Dynamic range: 108 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA)
- Note: JEITA indicates compliance with JEITA CP-2150
- Dante Input to Line Output
- Power Supply and Other Specifications
- Power supply
- PoE class 0
- Tascam PS-P1220E AC adapter (sold separately)
- Power consumption:7.5 W
- Dimensions (W×H×D): 214×45×136 mm (including protrusions)
- Weight: 885 g
- Permissible operating temperature range: 0–40 ºC
- Power supply
