TASCAM US-4X4HR 4x4 USB Audio Interface
TASCAM US-4X4HR 4x4 USB Audio Interface
SoundPro Item: 110625 | Part Number: US-4X4HR
Usually ships in 5-7 business days
- 4 in / 4 out
- 4 mic preamps
- Ultra HDDA Mic Preamps with 192 kHz support
- Powered by USB bus power
- Zero-latency direct monitoring function
- 4 XLR/TRS combo inputs equipped with Ultra HDDA mic preamps and +48V phantom power
- Combo TRS line inputs with guitar input support on IN1-2

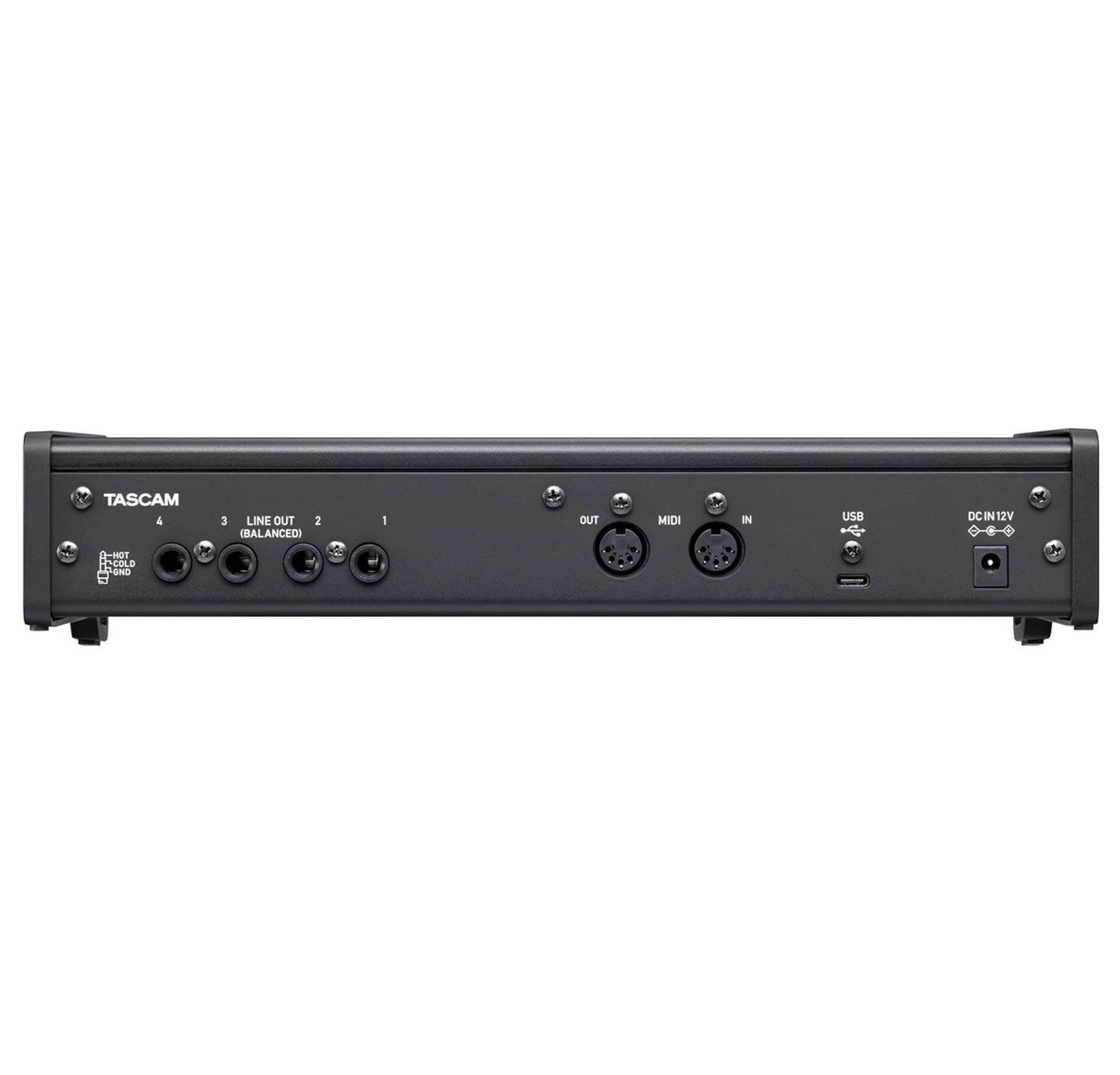

- TRS line outputs 1-2/3-4
- Two headphone outputs
- Equipped with MIDI IN/OUT terminals
- Compatible with iPad and other iOS devices
- Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- Robust metal casing
The US-4x4HR is the perfect solution for producers building authentic music production environments. 4 XLR mic inputs and 4 TRS line inputs (IN 1-2 guitar input support) audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly enhanced audio circuit.
The US-4x4HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-4x4HR also supports OBS, which is popular and used worldwide.
- Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
- Quantization bit rate 24bit
- Gain 56dB
- Mic amp EIN -128dBu or lower
- Crosstalk 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)
- Mic in
- Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
- Input impedance: 2.2k ohms
- Max input level: +9dBu (2.183Vrms)
- Inst in
- Connector: 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED (when set to "INST" at MIC/LINE INST switch)
- Input impedance: 1M ohms or more
- Max input level: +10dBV(3.162Vrms)
- Line in
- Connector: 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (when set to "MIC/LINE" at MIC/LINE INST switch)
- Input impedance: 10k ohms
- Max input level: +20dBu(7.746Vrms)
- Line out
- Connector: 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
- Output impedance: 210 ohms
- Nominal output level: +4dBu (1.228Vrms)
- Max output level: +20dBu (7.746Vrms)
- Phones
- Connector: 6.3mm(1/4") stereo phone jack
- Output impedance: 51.5ohms
- Working impedance: 16ohms to 600ohms
- Max output level: 45mW+45mW or more (THD+N 0.1% or less, 32ohms loaded)
- MIDI in/out
- Connector: Din 5-pin
- Format: Standard MIDI format
