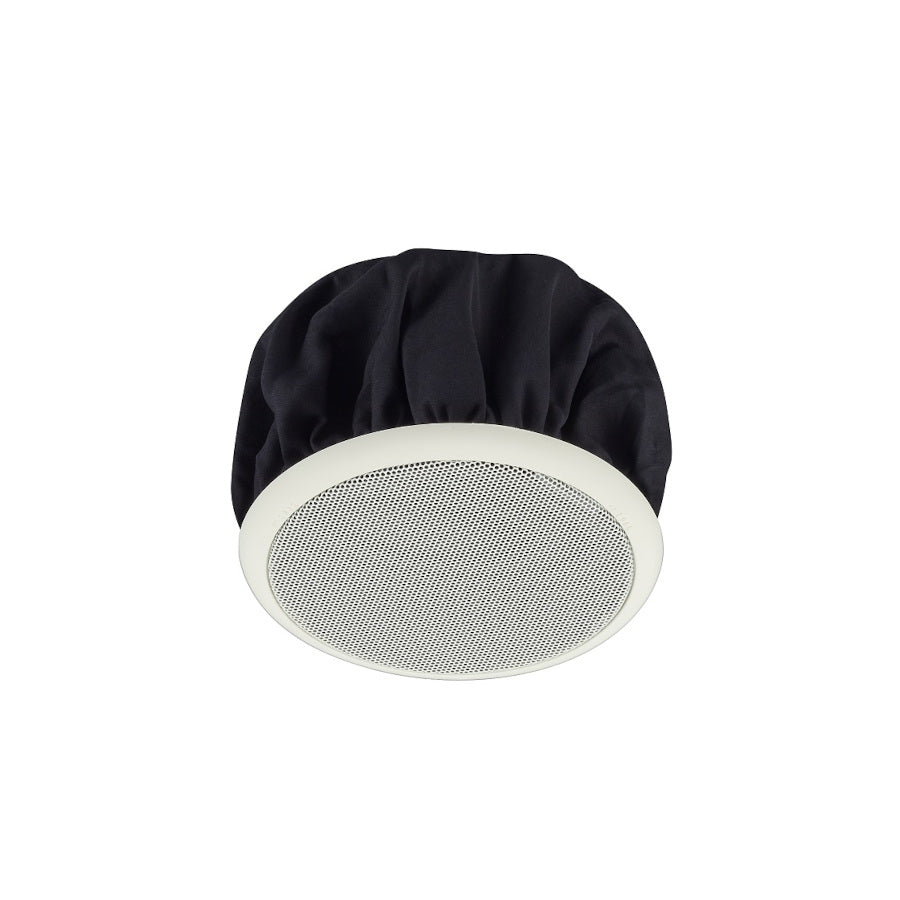

TOA F-1522SC 4-Inch Ceiling Speaker
TOA F-1522SC 4-Inch Ceiling Speaker
SoundPro Item: 53949 | Part Number: F-1522SC
Usually ships in 5-7 business days
- Small, flush-mounted ceiling speaker
- Employs a full-range speaker element designed to offer a wide frequency range and high-quality sound output
- Can be mounted to the ceiling panel that is up to 37 mm in thickness
The F-1522SC ceiling-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.
This speaker has a rear-open type speaker system employing a speaker element covering a full frequency range. The wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius. Because the speaker is provided with both low- and high-impedance operating capability, it can be used in many different applications and a front panel-mounted input selector switch permits easy verification and change of current impedance/power settings, even after installation. It can be quickly and accurately mounted to ceilings and its rotating front grille can be installed/removed quickly and conveniently. The attractive exterior design specially created by an interior designer, blends naturally with any architectural space.
- Rated Input6W (High Impedance)
- Power Handling Capacity
- Continuous pink noise: 9W (8Ω), 6W (16Ω)
- Continuous program: 18W (8Ω), 12W (16Ω)
- Impedance
- 100V line: 1.7kΩ (6W), 3.3kΩ (3W)
- 70V line: 830Ω (6W), 1.7kΩ (3W), 3.3kΩ (1.5W)
- 25V line: 830Ω (0.75W), 1.7kΩ (0.4W), 3.3kΩ (0.2W)
- 8Ω
- Sound Pressure Level88 dB (1 W, 1 m)
- Frequency Response65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
- Speaker Component10 cm cone-type
- Mounting Holeφ135 mm (Maximum ceiling thickness: 37 mm)
- Input TerminalPush-in connector (Bridging terminal-2 branch type)
- Usable Cable
- 600 V Vinyl-insulated cable (IV wire or HIV wire)
- Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG No. 20 - 15)
- 7-core twisted copper wire: 0.75 - 1.25 mm22 (equivalent to AWG No. 18 - 17)
- Finish
- Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
- Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
- Punched net: Steel plate, white, paint
- Dust cover: Spunbond Polypropylene Nonwoven Fabric
- Dimensionsφ155 × 117 (D) mm
- Weight1 kg (including panel)
