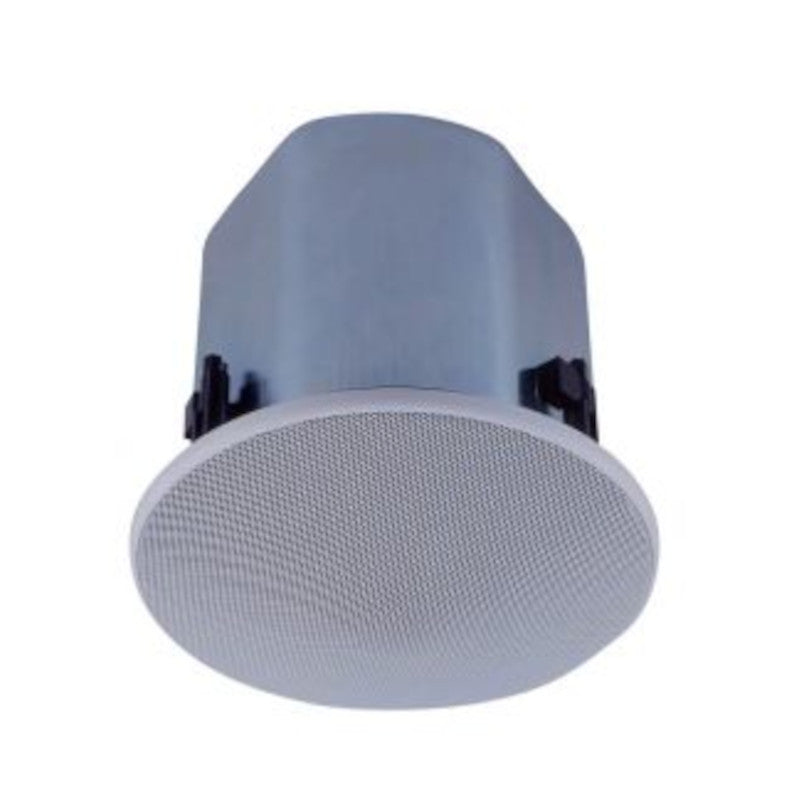

TOA F-2352CU2 5-Inch Ceiling Speaker

The F-2352CU2 speaker is a flush-mounted ceiling speaker that offers a wide frequency range and high quality sound performance, and features a 2-way co-axial speaker configuration. Use of the supplied and optional mounting hardware permits versatile mounting to match a wide range of applications and installation locations. The F-2352CU2 model offers the same performance as the CU model and includes the 5070723950 Tile Bridge.

Its bass-reflex speaker system designed to provide smooth sound delivery with high power handling capability. Its wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage. Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius. Because the speaker provides both low- and high-impedance operating capability, it can be used in many different applications. A front panel-mounted input selector switch permits easy verification and change of current impedance/power settings, even after installation. It can be quickly and accurately mounted to ceilings and the rotating front grille can be installed/removed quickly and easily. It has an attractive exterior design specially created by an interior designer to blend naturally with any architectural space. Optional mounting hardware permits exposed installation or installation in weak ceiling panels.

TOA F-2352CU2 Features

• Co-axial: 5” cone driver and dome tweeter
• Wide-dispersion: 170º conical (1-4k Hz avg.)
• Power Handling: 30 W (xfmr) / 120 W (8 ohms)

• F-2352CU2 5" Coaxial Ceiling Speaker1
• Front grille 1
• Tile bridge 1
• Safety wire (approx. 60 cm/23.62")1
• Paper pattern 1

• EnclosureBass reflex type
• Rated Input30W (High Impedance)
• Power Handling Capacity
  • Continuous pink noise: 60W (8Ω)
  • Continuous program: 120W (8Ω)
• Impedance
  70V line: 170Ω (30W), 330Ω (15W), 1 kΩ (5W), 3.3 kΩ (1.5W), 10 kΩ (0.5W)
  • 25V line: 170Ω (3.7W), 330Ω (1.9W), 1 kΩ (0.6W), 3.3 kΩ (0.2W), 10 kΩ (0.06W) 8Ω
• Sensitivity90 dB (1 W, 1 m)
• Frequency Response70Hz-20kHz at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
• Speaker Component
  • High frequency: Balanced dome-type
  • Low frequency: 12 cm (5") cone-type
• UL CodeUL1480 (UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)
• Mounting Holeφ200 mm (7.87") (Maximum ceiling thickness: 37 mm (1.46"))
• Input TerminalRemovable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
• Usable Cable
  • Solid copper wire: φ1.0 - φ1.6 mm (equivalent to AWG No. 18 - 14)
  • Stranded copper wire: 0.75 - 2.5 m㎡ (equivalent to AWG No. 18 - 14)
• Finish
  • Enclosure: Steel plate, plating
  • Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
  • Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
  • Punched net: Steel plate, white, paint
• Dimensionsφ230 × 238 (D) mm (φ9.06" × 9.37")
• Weight4.3 kg (9.48 lbs) (including mounting accessories)
