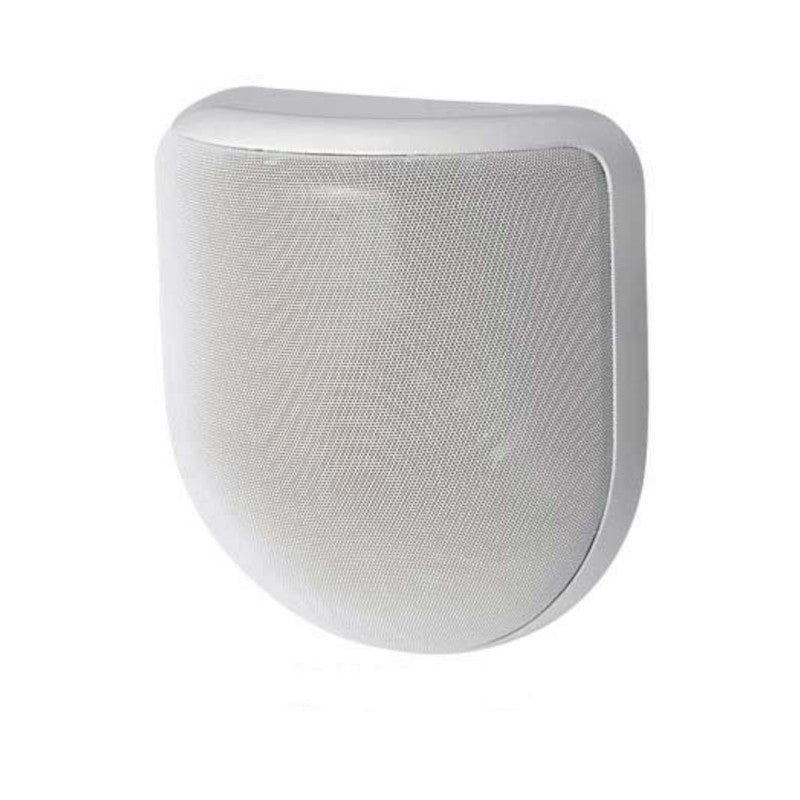

TOA H-3WP EX Weather-Resistant Speaker
TOA H-3WP EX Weather-Resistant Speaker
SoundPro Item: 55380 | Part Number: H-3WP
Usually ships in 5-7 business days
- Wide-dispersion wall-mount speaker
- Weather-resistant
- Wide horizontal coverage pattern
- Significantly reduces sound wave reflections and sound coloration
- Ideal for gardens, patios, swimming pools, and more
The H-3WP EX wide-dispersion wall-mount speaker addition to the TOA Interior Design Series and continues TOA's modern, innovative approach to commercial speaker design. The H-3 EX's unique appearance and superb sound quality provide a welcome alternative to conventional wall-mount speakers for spaces where appearance is a prime consideration.
Applications include speaker systems for hotels, houses of worship, offices, museums, residential spaces, restaurants, retail stores, and many others. A weather-resistant version, model H-3WP EX, is available for outdoor applications such as gardens, patios and swimming pools.
The H-3 EX's wide 140 degree horizontal coverage pattern provides a solution for eliminating deadspots inherent between wall-mounted speakers. Also, the Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers.
- Enclosuresealed type
- Power Handling Capacity
- Continuous Program / 8Ω: 150W
- Continuous Pink Noise / 8Ω: 50W
- Rated Input30 W (16Ω, high impedance)
- Rated Impedance
- 8Ω, 16Ω
- 100V line: 330Ω (30W), 670Ω (15W), 1.3 kΩ (7.5W)
- 70V line: 170Ω (30W), 330Ω (15W), 670 Ω (7.5W), 1.3 kΩ (3.75W)
- Sensitivity89 dB (1W, 1 m) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.)
- Frequency Response100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.)
- Crossover Frequency4 kHz
- Water ResistanceIPX4
- Speaker Component
- Low frequency: 10 cm cone-type × 2
- High frequency: 2.5 cm dome-type (neodymium magnet)
- Input TerminalDetachable screw terminal, (+)/(-) 2 each (for bridging connection)
- Usable CableSolid cable, stranded cable: 0.2 - 2.5 mm22 (AWG No.24 - 14)
- Dimensions (WxHxD)11.6x12.5x5.1"
- Weight7.3 pounds
