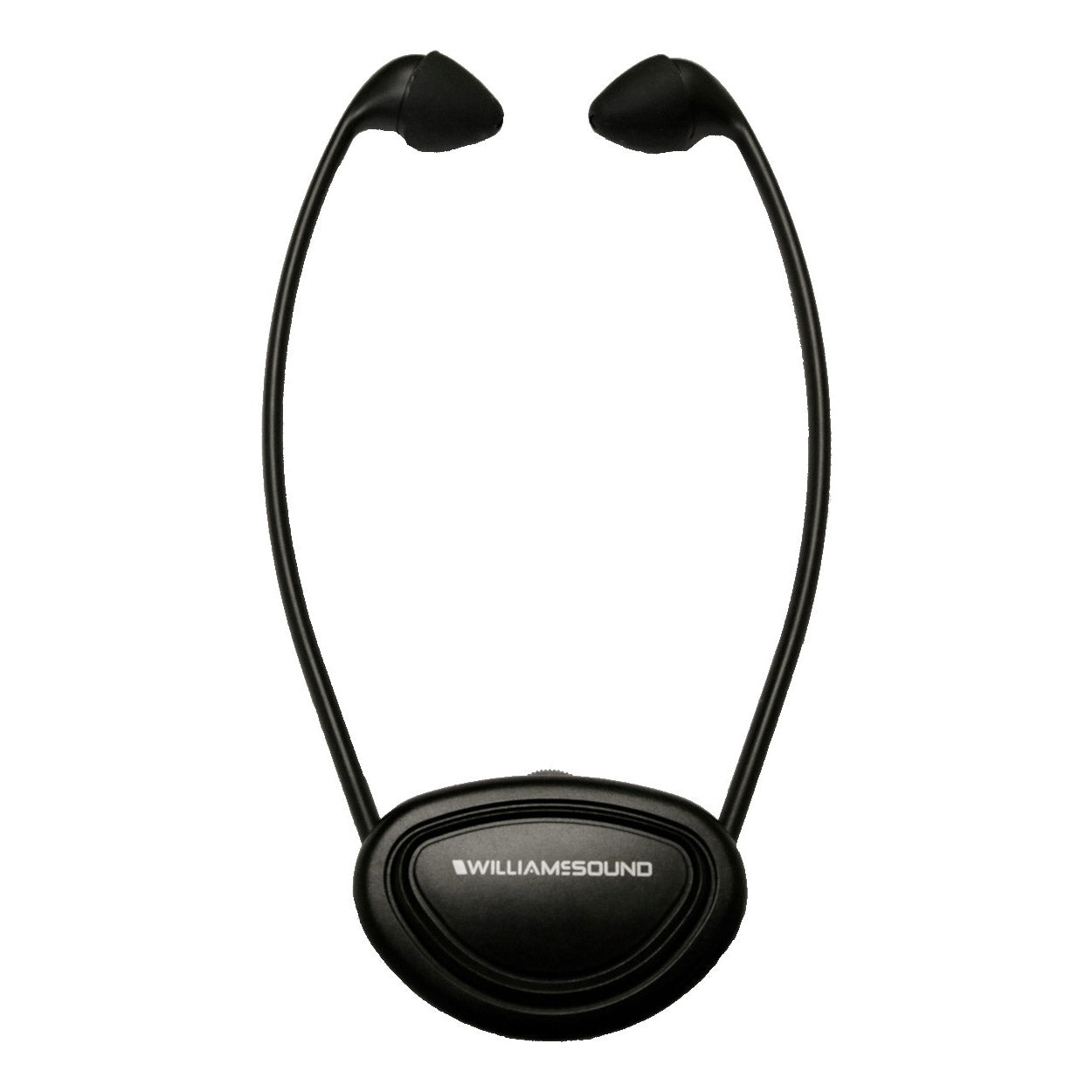

The IR RX20 is a comfortable, stereostethoscope -shaped infrared receiver. It uses earpads EAR 089. The headset works with all Williams Sound 2.3 or 2.8 MHz infrared systems.
Williams AV IR RX20 Features
- Comfortable, stereostethoscope -shaped infrared receiver
- Uses earpads EAR 089
- Works with all Williams Sound 2.3 or 2.8 MHz infrared systems
- IR RX20 Stethoscope Infrared Receiver1
- Five Year Warranty1
- Weight1.6 oz
- Material and ColorIR Transparent polycarbonate, black
- Battery TypeLiPo
- Battery Life8 hours
- Battery ChargerCHG 520
- Operating Temp32-122° F (0-50° C)
- RangeUp to 15,000 sq. ft. in single channel mode with IR T2 transmitter
- Operating Frequency2.3 MHz or 2.8 MHz or stereo
- Frequency Response100 Hz to 12 kHz, ± 3 dB
- Signal to Noise Ratio60 dB at 10 m
- ControlsVolume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
- Acoustic Output120 dB MAX SSPL90 with 2 cc coupler
- Compatibility Compatible with 2.3 MHz and 2.8 MHz IR transmitters
- Headphone Jack3.5mm stereo
- Ear padsEAR 089
- ApprovalsCE, RoHS, FCC, Canada, RCM, VCCI, WEEE
- Warranty5 years (90 days on battery)
