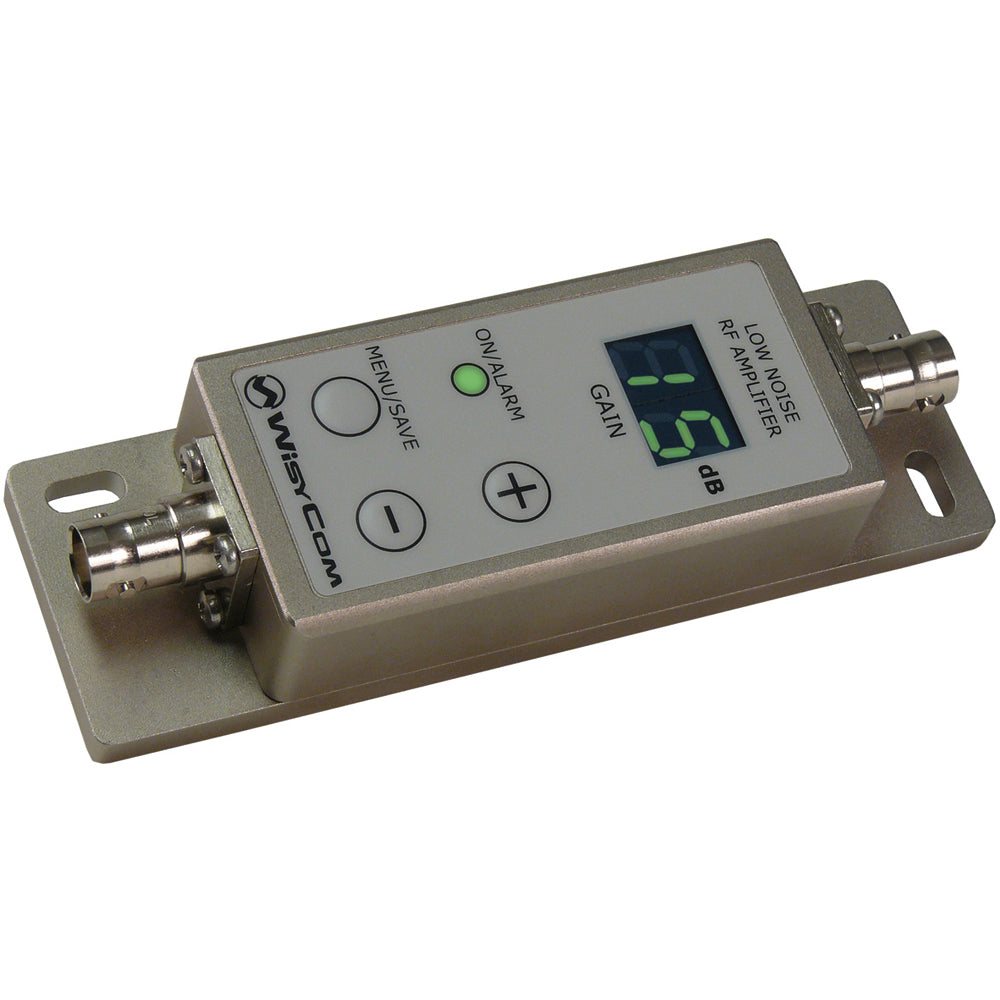

Wisycom BAA Wideband Antenna Amplifier
Wisycom BAA Wideband Antenna Amplifier
SoundPro Item: 150832 | Part Number: BAA
Usually ships in 5-7 business days
- Broadband operations 470-960 MHz
- Very high linearity (OIP3 > 40 dBm)
- Up to 16 dB gain settable in one dB step
- Powered thru cable
- Power feedthrough selectable for cascade operation of several BAAs
The Wisycom BAA is an in-line booster for UHF. The BAA offers up to 15 dB gain in 1dB steps for microphone receive applications. The BAA requires +12V 100mA for full operation. Featuring a BNC connector for easy connection.
- Frequency ranges470 960 MHz
- SWR< 1:1.5; typ. = 1:1.4
- OIP3+43 dBm (Output 3° order Intercept Point) typical.
- ConnectorBNC-F
- Impedance50 Ω
- Booster Gain0 - 16 dB (typical), selectable in step of 1 dB (+/- button)
- Booster Steps± 1 dB, in the whole working window
- Power supply+12 V, 100mA+100mA ( if power input activated) [MAX: 12V/300mA]
- Materialruggedized aluminum, with waterproof sealing (suitable for outdoor installations)
- Mounting2 holes for wall-installation (M4 screw type)
- Dimensions120 x 39 x 24 mm (HxWxD)
- Weight160g
