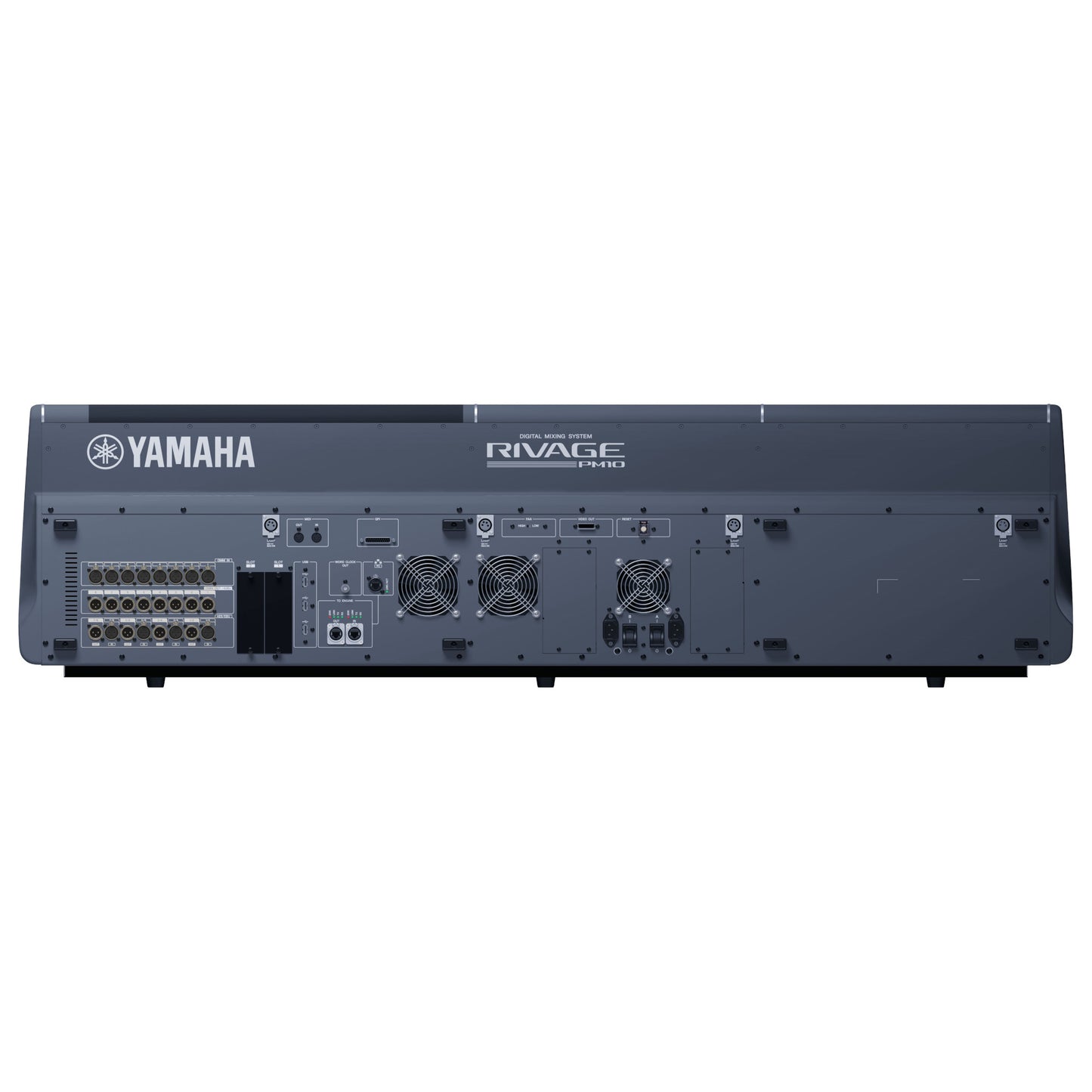

Yamaha CS-R10 RIVAGE PM10 Control Surface
Yamaha CS-R10 RIVAGE PM10 Control Surface
SoundPro Item: 97760 | Part Number: CS-R10
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Control surface with two large touch panel displays and 38 faders
- Ideal for performing general operations in myriad professional live audio environments as part of a RIVAGE PM10 system
- DSP-R10 DSP engine
- TWINLANe Network enables an audio network handling up to 400 channels
- Ring configuration can accommodate up to eight units
The CS-R10 from Yamaha is a control surface with two large touch panel displays and 38 faders. Part of the RIVAGE PM series, this control surface is ideal for performing general operations in myriad professional live audio environments as part of a RIVAGE PM10 system.
- Display 15" touch panel x 2
- Faders 38 (12+12+12+2)
- Selected Channel section comprehensive channel parameters
- Custom Fader banks 6 x 5 on each bay
- User Defined keys 12 x 4 banks
- User Defined knobs 4 x 4 banks
- Touch and Turn knobs 2
- Analog I/O 8 in / 8 out
- Slot 2 MY slots
- AES/EBU 8 in / 8 out (with SRC)
- Ports GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
- Power supply Dual redundant power supply built-in
- Power consumption 380W
- Dimensions (WxHxD) 61x16.4x33.4" (1,549x417x848mm)
- Net Weight 187 lbs (85 kg)
